** SOLD **
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Ask more informations
about a similar one
- Machine Code
- FL1028
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 1999
- Number of colors
- 8
- Print possibilityes
- 8-0
- Overhaul/renovation
- REWIND WEB GUIDE
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes

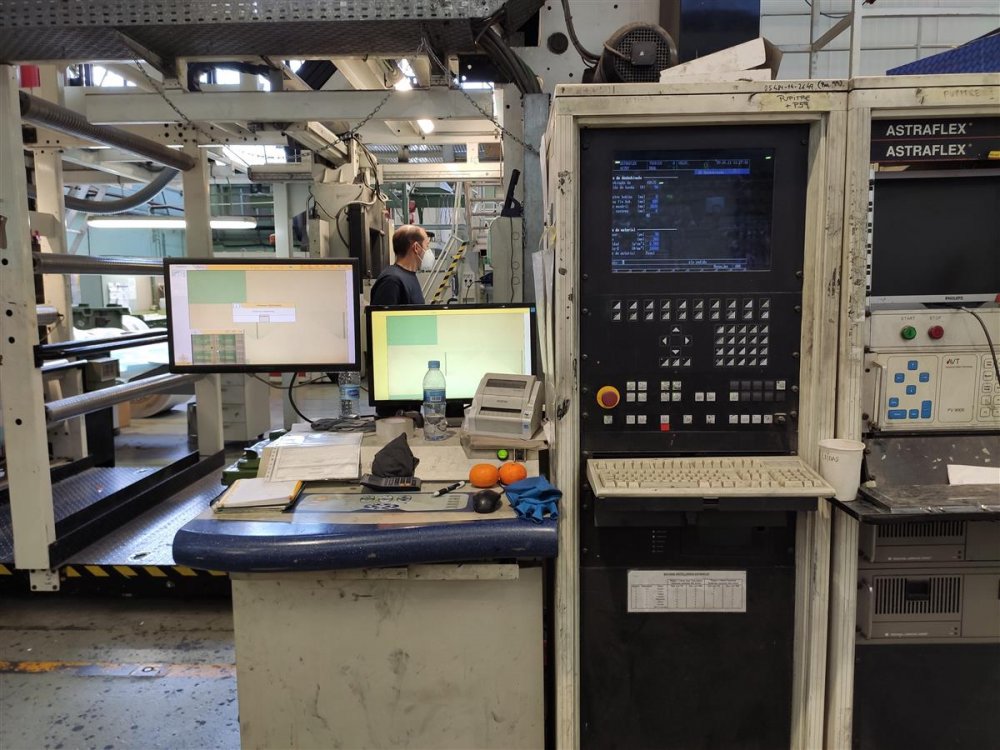

- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 410
- Max print repeat (mm)
- 1200
- Unwinder type
- AUTOMATIC TURRET
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- AUTOMATIC TURRET
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED
- Videocamera
- AVT Jupiter with Defekt control
- Corona treatment
- NO
- Web guides
- YES, BST
- Vyscosity control
- NO
- Washing system
- YES
- Anilox
- 21
- Print Sleeves
- 112
- Print cylinders
- 16
- Note
- TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED
| Machine Code | FL1028 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 1999 |
| Number of colors | 8 |
| Print possibilityes | 8-0 |
| Overhaul/renovation | REWIND WEB GUIDE |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 410 |
| Max print repeat (mm) | 1200 |
| Unwinder type | AUTOMATIC TURRET |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | AUTOMATIC TURRET |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans final extended tunnel, THERMIC OIL heat exchangers . Thermo oil boiler INCLUDED |
| Videocamera | AVT Jupiter with Defekt control |
| Corona treatment | NO |
| Web guides | YES, BST |
| Vyscosity control | NO |
| Washing system | YES |
| Anilox | 21 |
| Print Sleeves | 112 |
| Print cylinders | 16 |
| Note | TYPE OF MATERIAL PP,PE,PAPER IN LINE SLITTING 3 CUTS OIL THERMAL BOILER INCLUDED |
