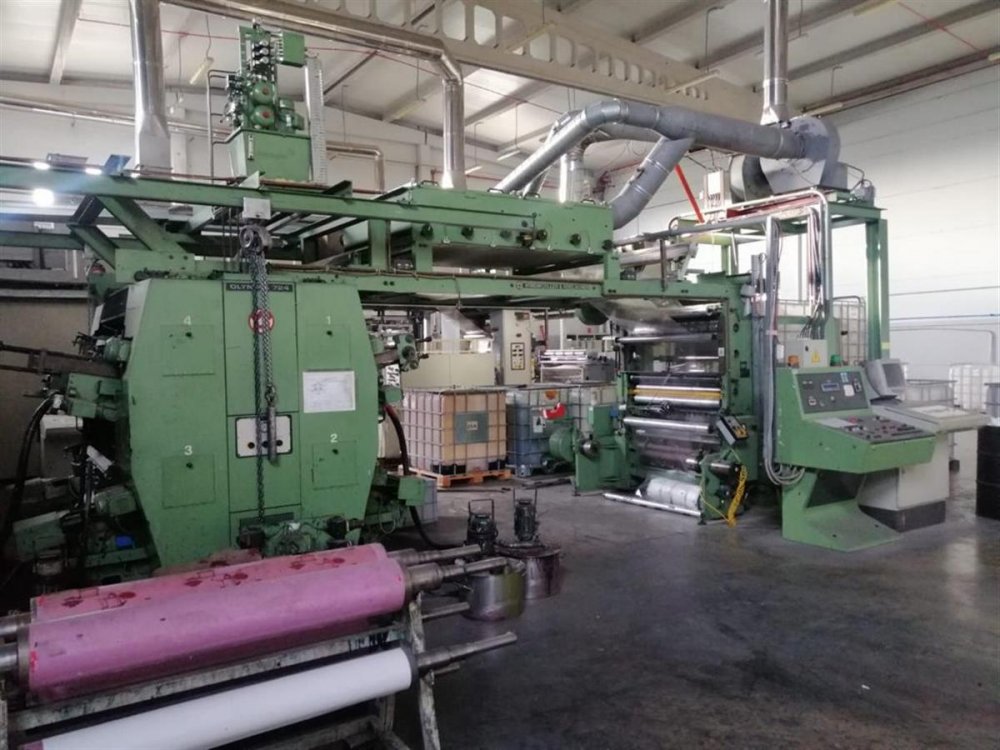

WINDMÖLLER & HÖLSCHER OLYMPIA flexographic printing machine 4 colors

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
Machine Code
FL0997
Manufacturer
WINDMÖLLER & HÖLSCHER
Modello
OLYMPIA
Year
1991
Number of colors
4
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
No

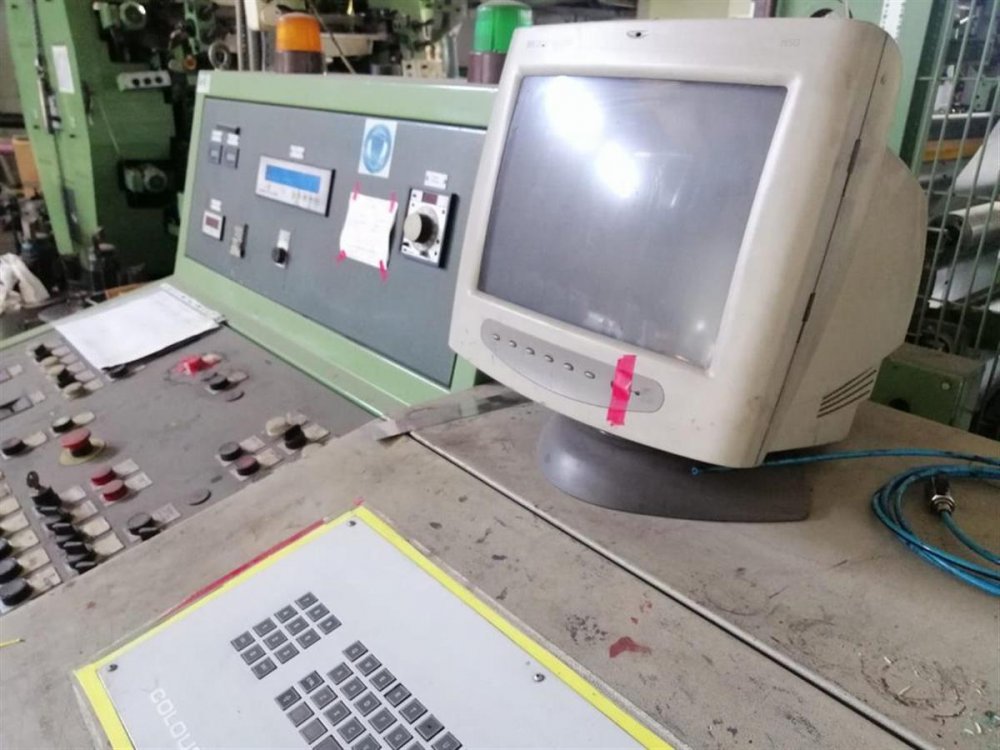

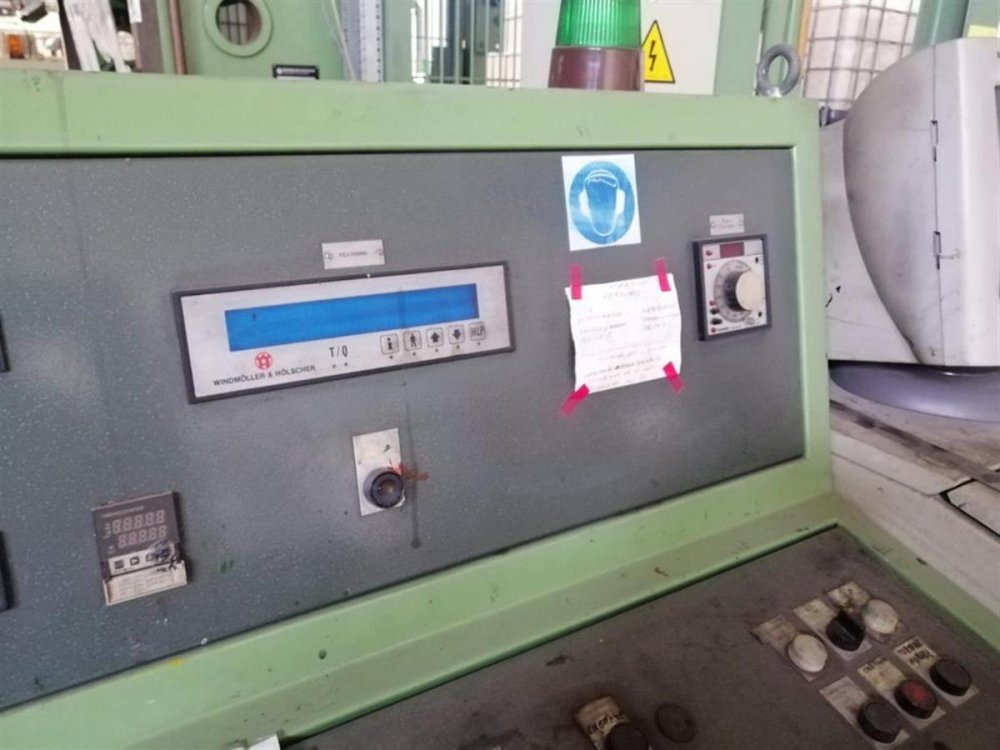

Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
640
Unwinder type
SINGLE,
Max reel diameter unwinder (mm)
760
Rewinder type
SINGLE,
Max reel diameter rewinder (mm)
760
Drying
ELECTRIC
Videocamera
YES - CS5
Corona treatment
YES
Inking system
4 ELECTRIC PUMPS
Anilox
4-370, 2-80, 2-120
Print Sleeves
4-400, 4-390, 4-500, 4-450, 4-480, 4-560, 4-600, 4-620, 4-420
Print cylinders
1-300, 4-360, 4-400, 4-450
Note
MATERIALS: PAPER / FILM 2 TROLLEYS OF 76MM
Machine Code FL0997
Manufacturer WINDMÖLLER & HÖLSCHER
Modello OLYMPIA
Year 1991
Number of colors 4
Gearless No
Fast sleeve change No
4 motor per deck CNC position system No
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 640
Unwinder type SINGLE,
Max reel diameter unwinder (mm) 760
Rewinder type SINGLE,
Max reel diameter rewinder (mm) 760
Drying ELECTRIC
Videocamera YES - CS5
Corona treatment YES
Inking system 4 ELECTRIC PUMPS
Anilox 4-370, 2-80, 2-120
Print Sleeves 4-400, 4-390, 4-500, 4-450, 4-480, 4-560, 4-600, 4-620, 4-420
Print cylinders 1-300, 4-360, 4-400, 4-450
Note MATERIALS: PAPER / FILM 2 TROLLEYS OF 76MM
