Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
- Machine Code
- FL0806
- Manufacturer
- COMEXI
- Modello
- FB 2108 CNC GL
- Year
- 2003
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- Washing system in 2012, and upgrated in 2013
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 850
- Unwinder type
- TURRET automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans 4 mt tunnel ,2 gas burners
- Videocamera
- Yes
- Corona treatment
- Yes, Softal
- Web guides
- BST in and out
- Vyscosity control
- Yes, Inelme
- Washing system
- Yes Enviroxi
- Inking system
- Closed chamber doctor blades , 8 ink pumps with tanks
- Anilox
- 24
- Print Sleeves
- 200
- Note
- Included in price Plate mounter Solvent distillation and recovery system Plate washing Slitter COMEXI KSC YEAR 1987; INKMAKER from 1997; ENVIROXI EV/50/VAC from 2004 ; RENZMANN M200 from 1999
| Machine Code | FL0806 |
| Manufacturer | COMEXI |
| Modello | FB 2108 CNC GL |
| Year | 2003 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | Washing system in 2012, and upgrated in 2013 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 850 |
| Unwinder type | TURRET automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans 4 mt tunnel ,2 gas burners |
| Videocamera | Yes |
| Corona treatment | Yes, Softal |
| Web guides | BST in and out |
| Vyscosity control | Yes, Inelme |
| Washing system | Yes Enviroxi |
| Inking system | Closed chamber doctor blades , 8 ink pumps with tanks |
| Anilox | 24 |
| Print Sleeves | 200 |
| Note | Included in price Plate mounter Solvent distillation and recovery system Plate washing Slitter COMEXI KSC YEAR 1987; INKMAKER from 1997; ENVIROXI EV/50/VAC from 2004 ; RENZMANN M200 from 1999 |

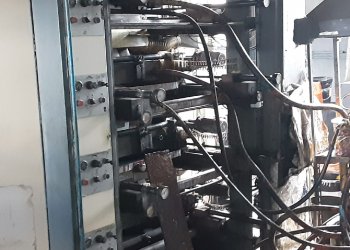

FLEXOTECNICA TACHYS
-
