** SOLD **
Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL744
- Manufacturer
- ROTOMEC
- Modello
- EG401
- Year
- 2001
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1285
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 760

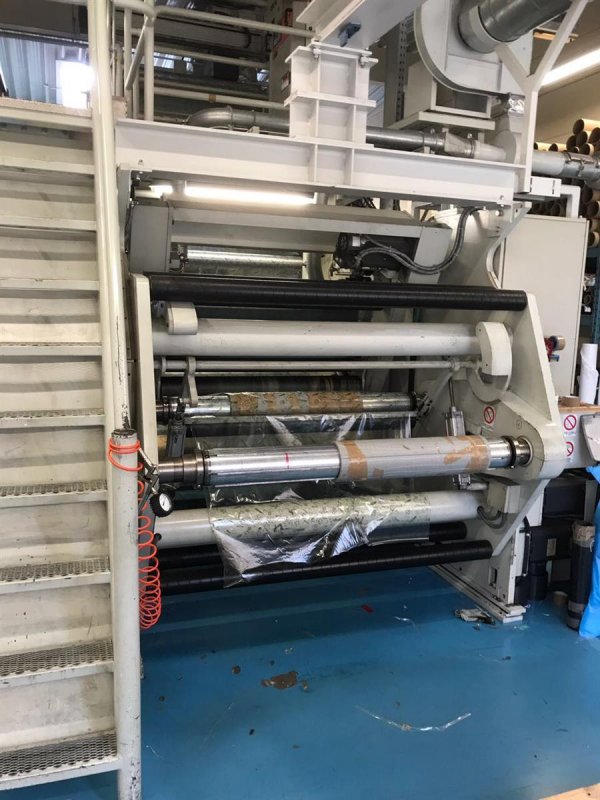

- Unwinder type
- Automatic splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic splice
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas
- Videocamera
- AVT
- Corona treatment
- yes
- Web guides
- yes
- Inking system
- ink tanks, ink pumps, 8 chamber doctor blades
- Anilox
- 17
- Print Sleeves
- Aprox 200
- Note
- Temperature control unit for CI and water cooling Cores unwinder/rewinder 76/152 mm Mechanical speed 300m/min
| Machine Code | FL744 |
| Manufacturer | ROTOMEC |
| Modello | EG401 |
| Year | 2001 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1285 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 760 |
| Unwinder type | Automatic splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic splice |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | AVT |
| Corona treatment | yes |
| Web guides | yes |
| Inking system | ink tanks, ink pumps, 8 chamber doctor blades |
| Anilox | 17 |
| Print Sleeves | Aprox 200 |
| Note | Temperature control unit for CI and water cooling Cores unwinder/rewinder 76/152 mm Mechanical speed 300m/min |
