HEIDELBERGER SHD 12 PERF0 Vakuumbeutel / Deupack Beutelmaschinen // Pouch and vacuum bag making // Bag making // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

Fotogalerie

Maschinencode: PO72
Hersteller: HEIDELBERGER
Modello: SHD 12 PERF0
Baujahr: 2010
Type of sealing/bags: 3 side weld
Bag length: 350mm
Bag width: 550mm

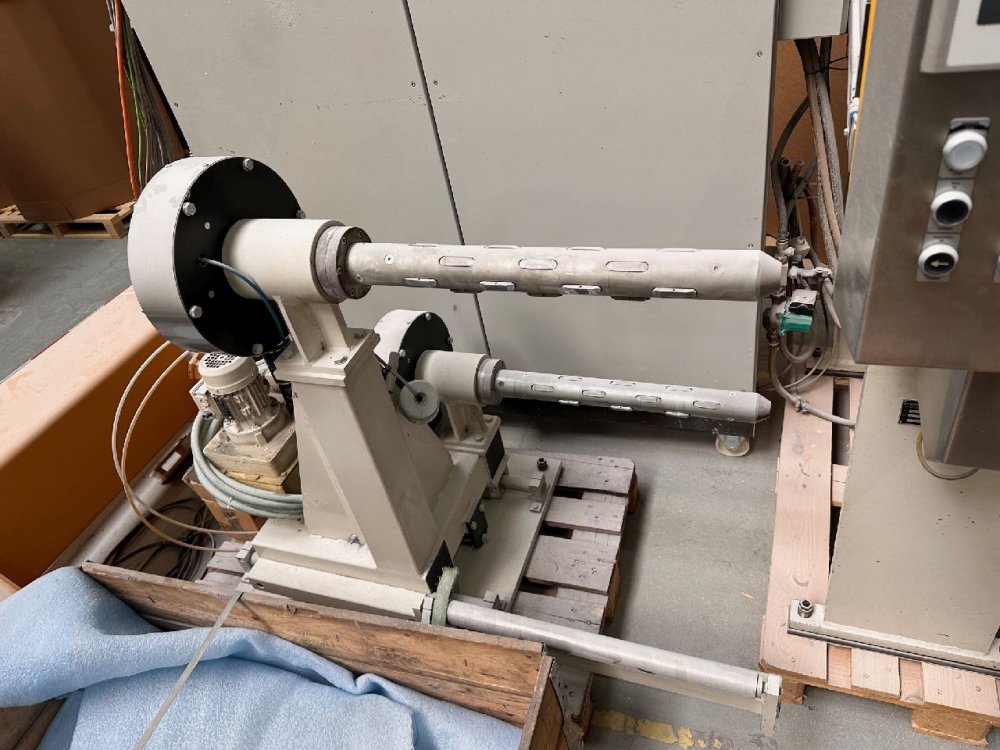

Unwinder: -Max. diameter 800 mm - Max. width 550mm -3" and optional with an adapter 6" cores -web edge control owdering station -tupe opener with fixed knife -width without tape max. 400 mm -max. bag size 350 mm x 550 side seal
Cycle / min: 50-60 pcs/min
Additional information type of bags: 40Âµ - 105Âµ high barrier shrink tube

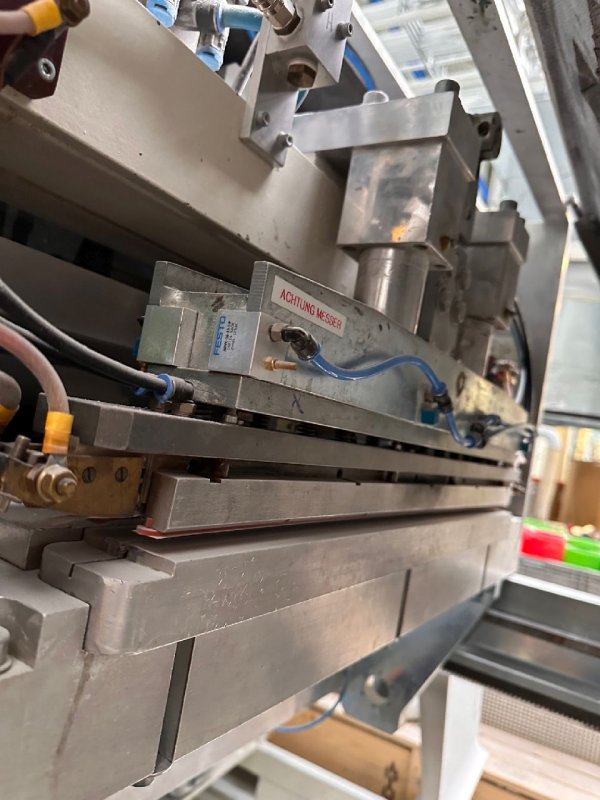

Note: -Perforation knife cutter -seal width 1,5-2 mm -40µ - 105µ high barrier shrink tube configuration packing: budle of 10-50 pcs | on tape | shindled antistatic width without tape max. 400 mm max. bag size 350 mm x 550 side seal

Maschinencode	PO72
Hersteller	HEIDELBERGER
Modello	SHD 12 PERF0
Baujahr	2010
Type of sealing/bags	3 side weld
Bag length	350mm
Bag width	550mm
Unwinder	-Max. diameter 800 mm - Max. width 550mm -3" and optional with an adapter 6" cores -web edge control owdering station -tupe opener with fixed knife -width without tape max. 400 mm -max. bag size 350 mm x 550 side seal
Cycle / min	50-60 pcs/min
Additional information type of bags	40Âµ - 105Âµ high barrier shrink tube
Note	-Perforation knife cutter -seal width 1,5-2 mm -40µ - 105µ high barrier shrink tube configuration packing: budle of 10-50 pcs \| on tape \| shindled antistatic width without tape max. 400 mm max. bag size 350 mm x 550 side seal
