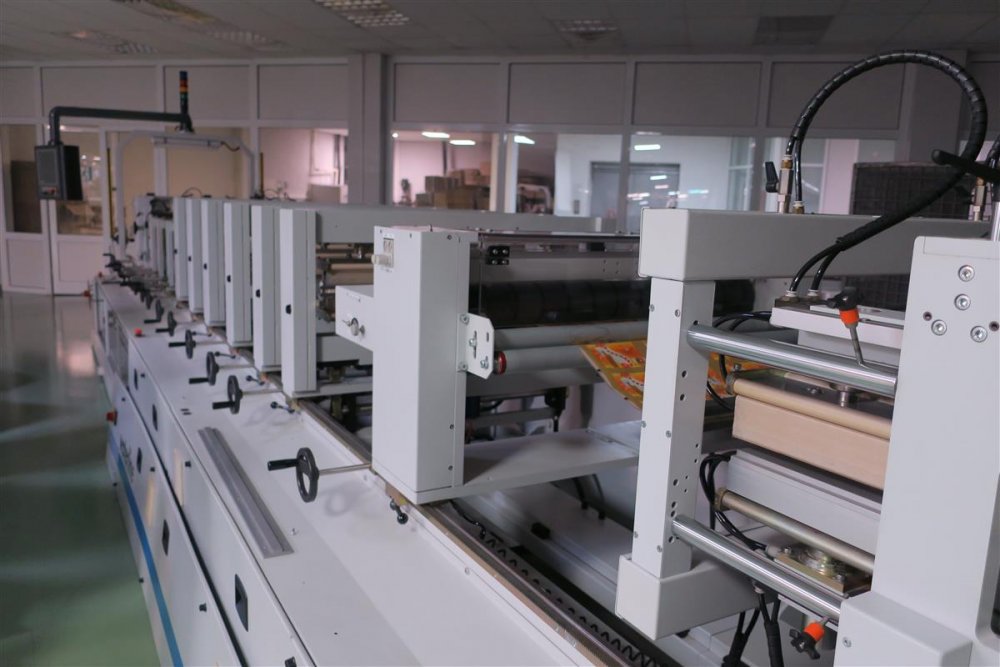

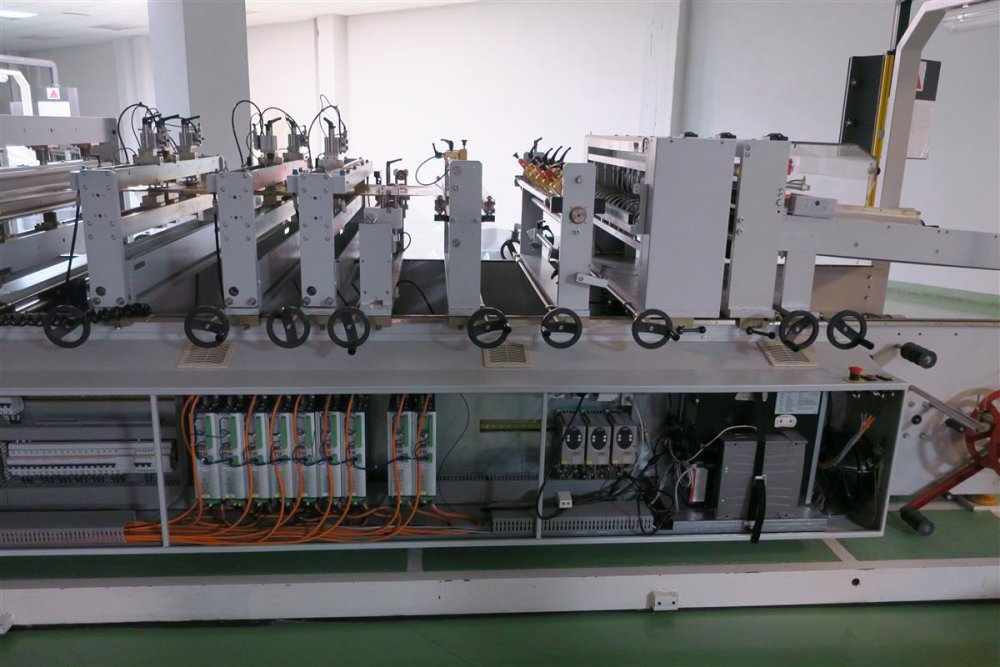

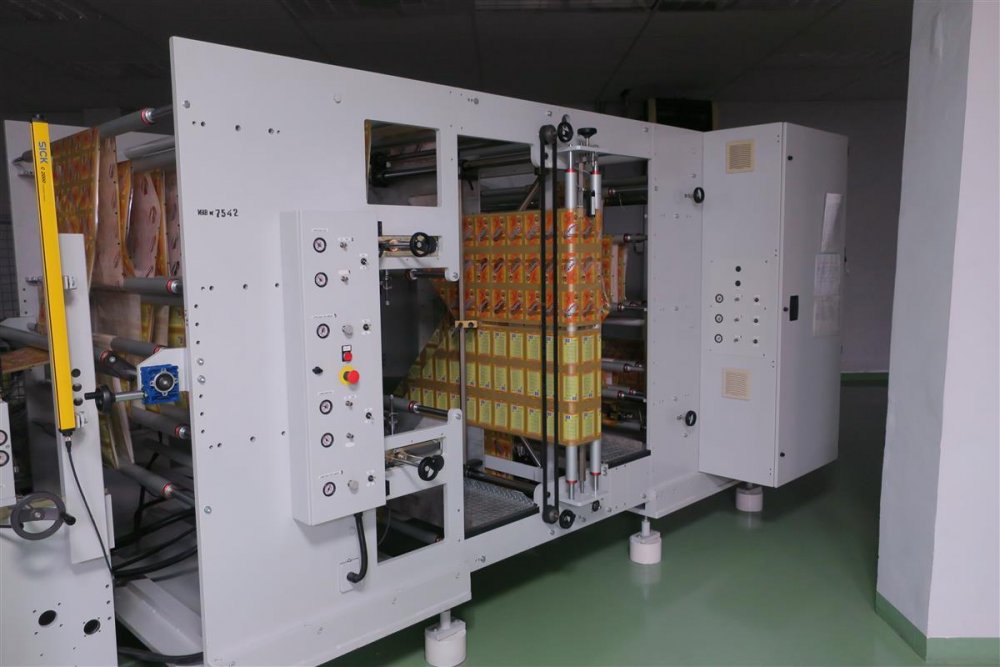

WATERLINE RITEBAG 900-S-LP Vakuumbeutel / Deupack Beutelmaschinen // Pouch and vacuum bag making // Bag making // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

Fotogalerie

Maschinencode: PO37
Hersteller: WATERLINE
Modello: RITEBAG 900-S-LP
Baujahr: 2006
Type of sealing/bags: 3 side weld
Bag length: 150-300mm
Bag width: 80-300mm
Unwinder: Double W= 1240mm x roll diameter 800mm on 152mm ID cores
Cycle / min: 180-200
Additional information type of bags: 3 side seal pouches
Note: Installed power 50 Kw, 400V 50Hz 12 m x 1.5 m x 2.3 m (L x W x H) 4 Euro hole, 4 tear notch, 5 round corner punches Dancer at unwinding + 2 edge ultrasonic guides Folding unit 3 longitudinal sealing bars 600mm+600mm cooling 4 cross sealing bars 2 cross cooling bars 1 trim winder Cross cutting by sevodriven Guillotine on rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel)
