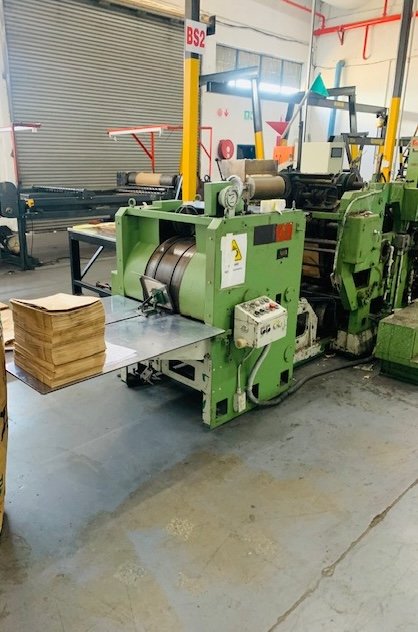

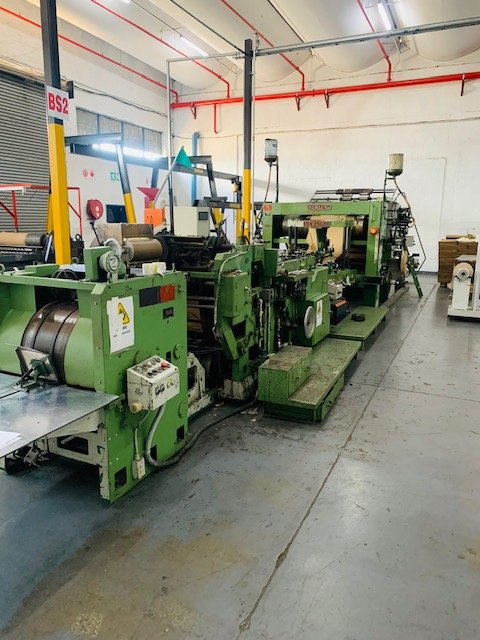

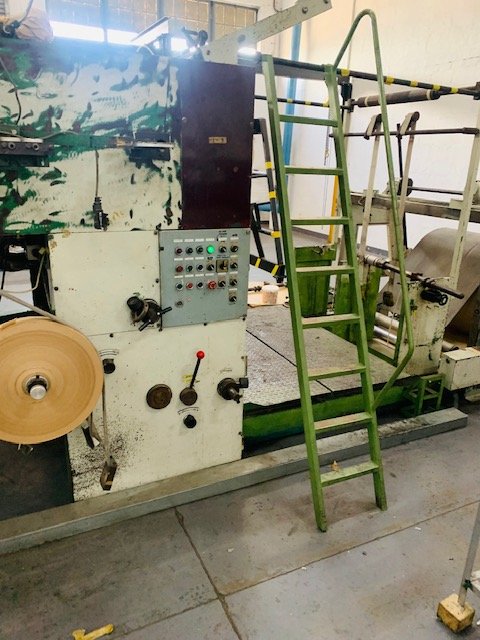

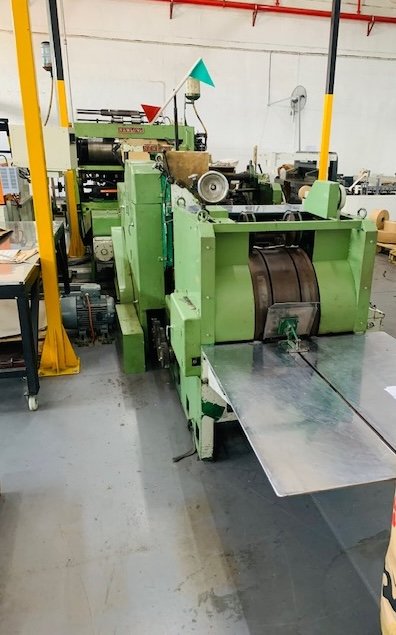

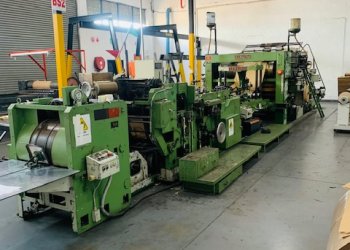

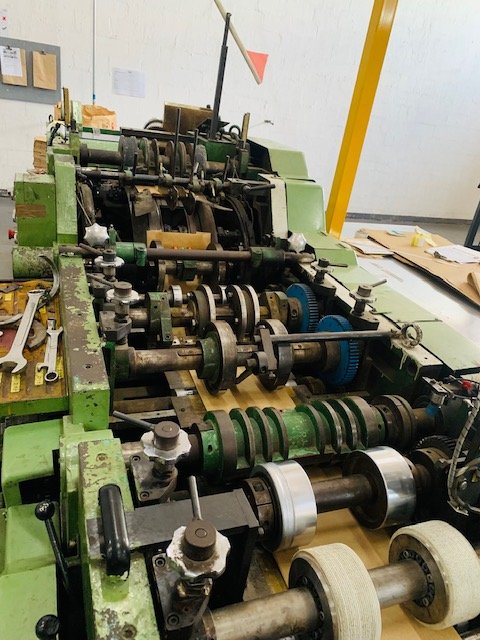

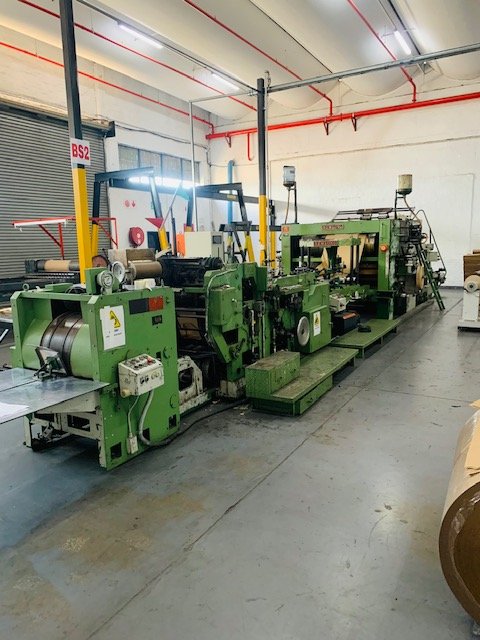

NEW LONG 117T+ 506TH SOS Papier Blockboden / Kreuzboden Beutelmaschine // Paper bag making SOS // Bag making // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

Fotogalerie

Maschinencode: SO338
Hersteller: NEW LONG
Modello: 117T+ 506TH
Baujahr: 1980
Width (mm): 1200
Feed:: Reel fed
Handel unit: Flat
Bag length max (mm): 530
Bag length min (mm): 260
Bag width max (mm): 320
Bag width min (mm): 220
Bottom width max (mm): 160
Bottom width (mm): 120
Cycle / min: 70 bags per min (or 4,200 per hour)
Note: Cut length/Pull : 450 – 640 mm Handle : Flat Handle 10 mm width Patch paper: 160 x 50 mm (width x height) Gears available: 500mm – 51teeth, 540mm-55teeth, 570mm-58teeth, Former plates available: 320mm, 260mm

Maschinencode	SO338
Hersteller	NEW LONG
Modello	117T+ 506TH
Baujahr	1980
Width (mm)	1200
Feed:	Reel fed
Handel unit	Flat
Bag length max (mm)	530
Bag length min (mm)	260
Bag width max (mm)	320
Bag width min (mm)	220
Bottom width max (mm)	160
Bottom width (mm)	120
Cycle / min	70 bags per min (or 4,200 per hour)
Note	Cut length/Pull : 450 – 640 mm Handle : Flat Handle 10 mm width Patch paper: 160 x 50 mm (width x height) Gears available: 500mm – 51teeth, 540mm-55teeth, 570mm-58teeth, Former plates available: 320mm, 260mm
