- Maschinencode
- SR492
- Hersteller
- UTECO - USIMECA
- Modello
- LMA 13.4.10.7
- Baujahr
- 1994
- Working width (mm)
- 1300
- Materials
- Paper up to 120 g/m2, Films up to 100 µ, Laminated products
- Speed
- 500 m/min
- Unwinder type
- Unwinder (T4) with spindle, Electromagnetic brakes Merobel FRAT 2002, Lifting system, Tension control. Max weight for the reel - 1200 kg Max web tension 60 kg
- Max diameter reel unwinder
- 1000
- Rewinder type
- Double turret center driven
- Max diameter reel rewinder
- 700
- Rewinder description
- Center rewinder with 1 turret, lay on roll full width on trolley with banana rolls, cross slit, reels unloading with cantilevered system. Max weight for reel - 450 kg. Max web tension - 60 kg.
- Min slit width
- 100 mm
- Note
- WINDER IS A SINGLE TURRET WINDER. NOT DOUBLE TURRET
| Maschinencode | SR492 |
| Hersteller | UTECO - USIMECA |
| Modello | LMA 13.4.10.7 |
| Baujahr | 1994 |
| Working width (mm) | 1300 |
| Materials | Paper up to 120 g/m2, Films up to 100 µ, Laminated products |
| Speed | 500 m/min |
| Unwinder type | Unwinder (T4) with spindle, Electromagnetic brakes Merobel FRAT 2002, Lifting system, Tension control. Max weight for the reel - 1200 kg Max web tension 60 kg |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Double turret center driven |
| Max diameter reel rewinder | 700 |
| Rewinder description | Center rewinder with 1 turret, lay on roll full width on trolley with banana rolls, cross slit, reels unloading with cantilevered system. Max weight for reel - 450 kg. Max web tension - 60 kg. |
| Min slit width | 100 mm |
| Note | WINDER IS A SINGLE TURRET WINDER. NOT DOUBLE TURRET |
BIELLONI SAGE B 86.120
-
Maschinencode: SR591
-
Baujahr: 1993
-
Working width (mm): 1300
IMS- DEL MAGLIO
-
Maschinencode: SR446
-
Baujahr: 1999
-
Working width (mm): 1400
DCM BAC 800 SPAG
-
Maschinencode: SR437
-
Baujahr: 1995
-
Working width (mm): 800
EUROMAC
-
Maschinencode: SR650
-
Baujahr: 2008
-
Working width (mm): 1350
KAMPF RASANTA B
-
Maschinencode: SR562
-
Baujahr: 1984
-
Working width (mm): 1680

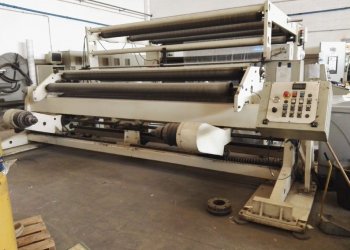

F.LLI VIOLA TRB LN-3300
-
