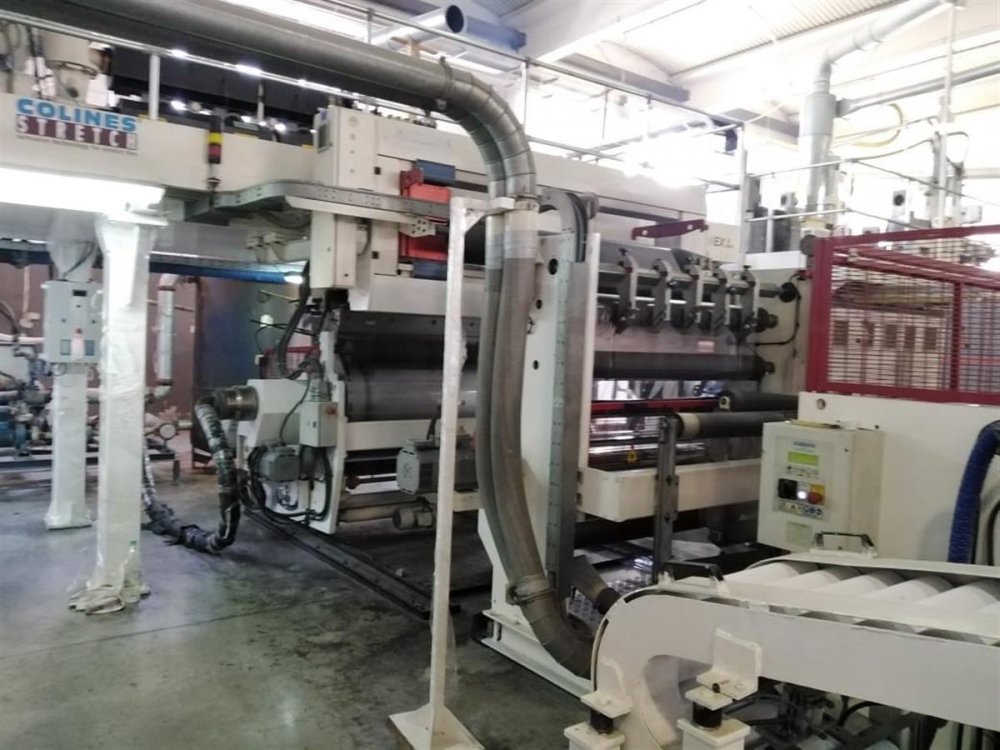

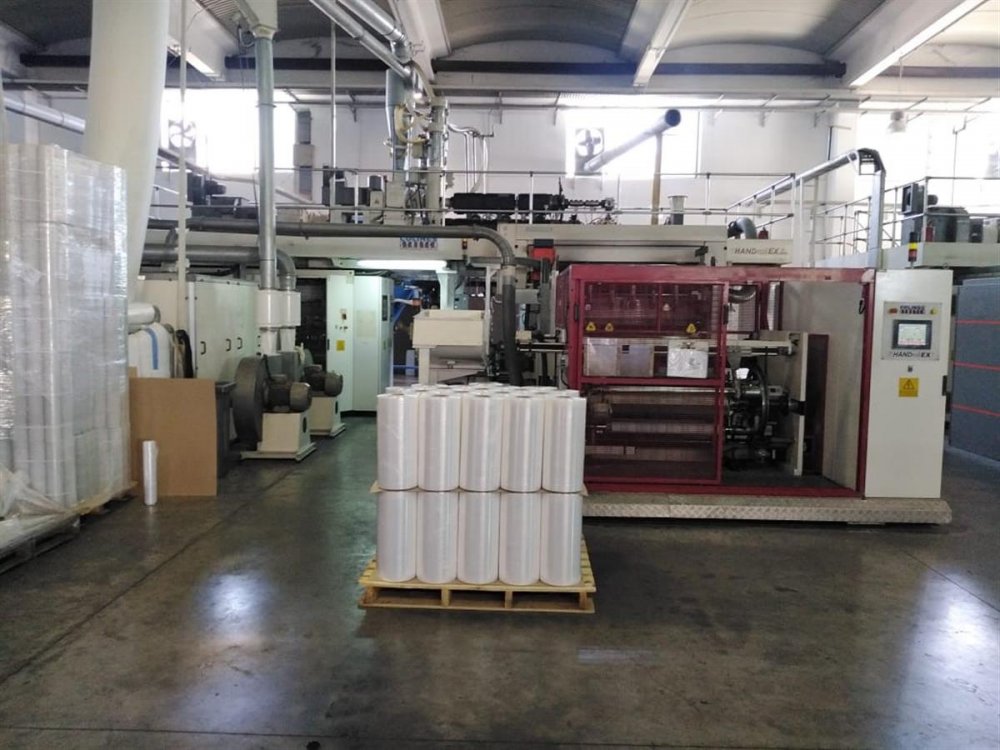

3 schichten COLINES HANDrollEX 1000A Chillroll-extrusionanlage

Maschinencode
CA200
Hersteller
COLINES
Modello
HANDrollEX 1000A
Baujahr
2009
Number of layers
3
Film structure
ABC
Material

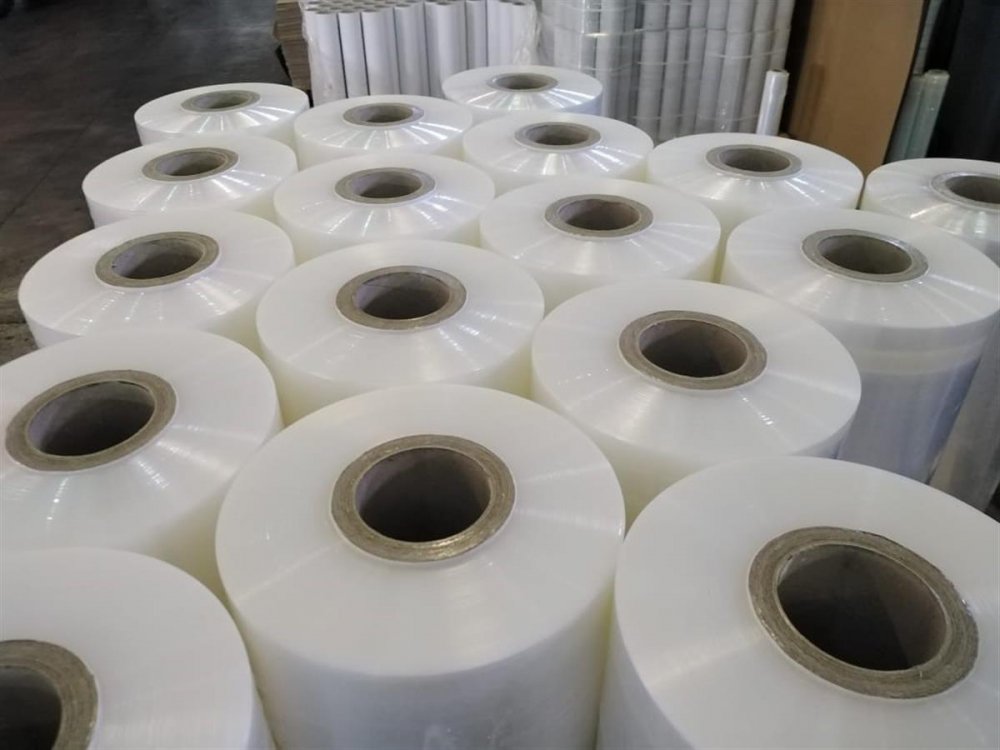

Stretch film LLDPE
Film width (mm)
1000
Speed (m/min)
up to 600
Output (Kg/h)
600

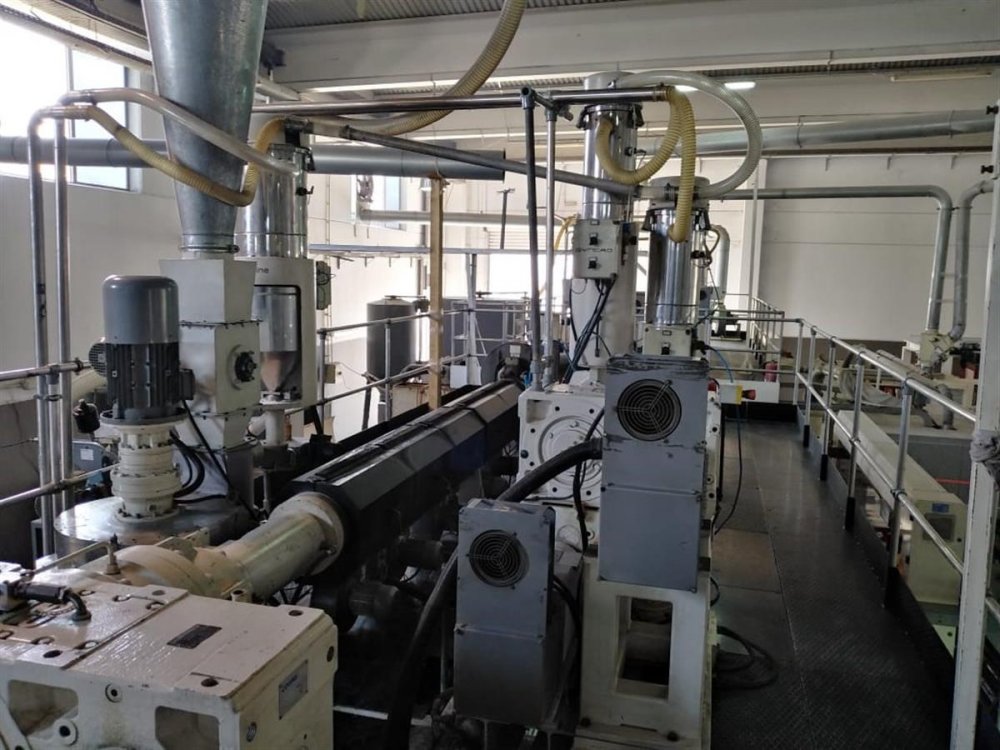

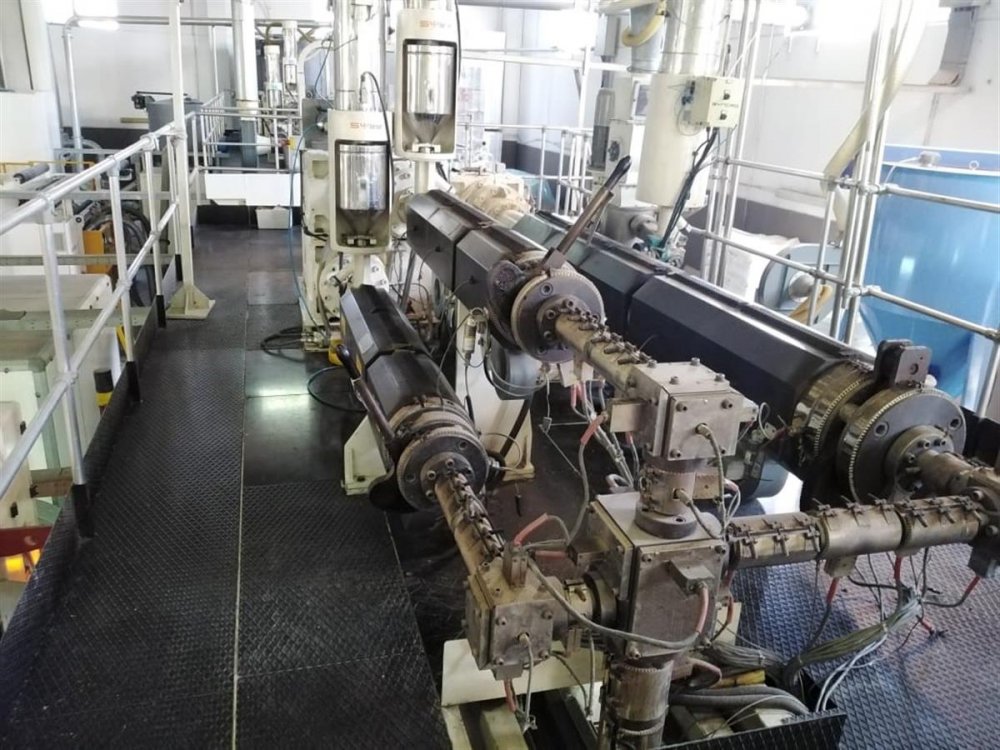

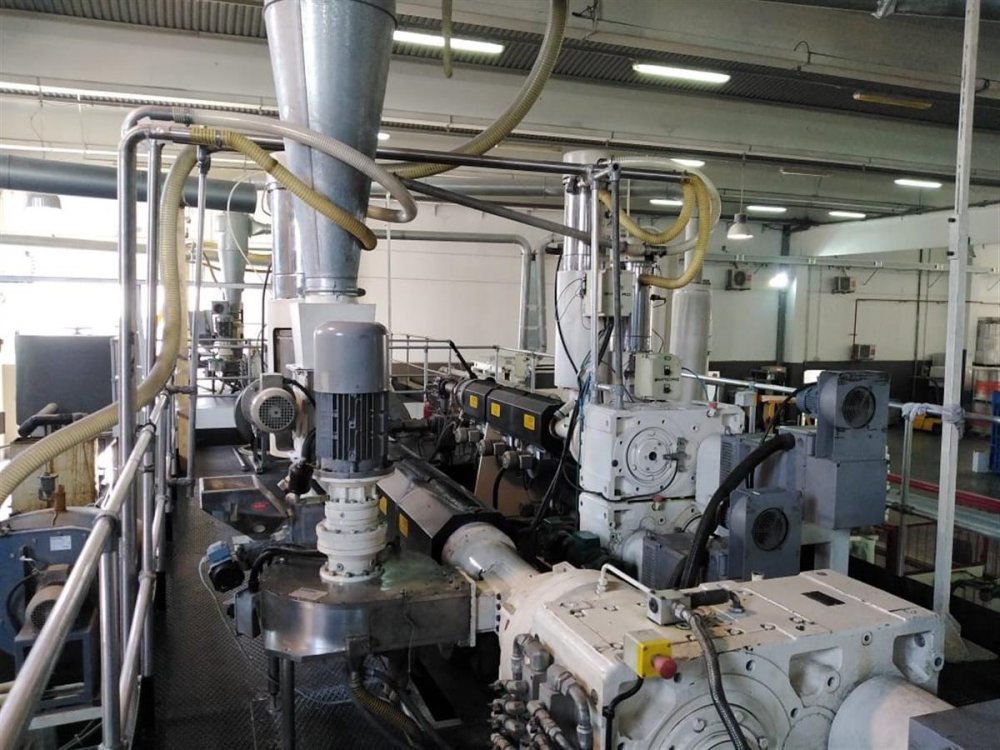

Extruder 1 Layer ref:
A
Screw diam 1
60/30 LD
Extruder 2 Layer ref:
B
Screw diam 2
120/30 LD
Extruder 3 Layer ref:
C
Screw diam 3
60/30 LD
Head description
FARCON with automatic gauge correction
Die width (mm)
1550

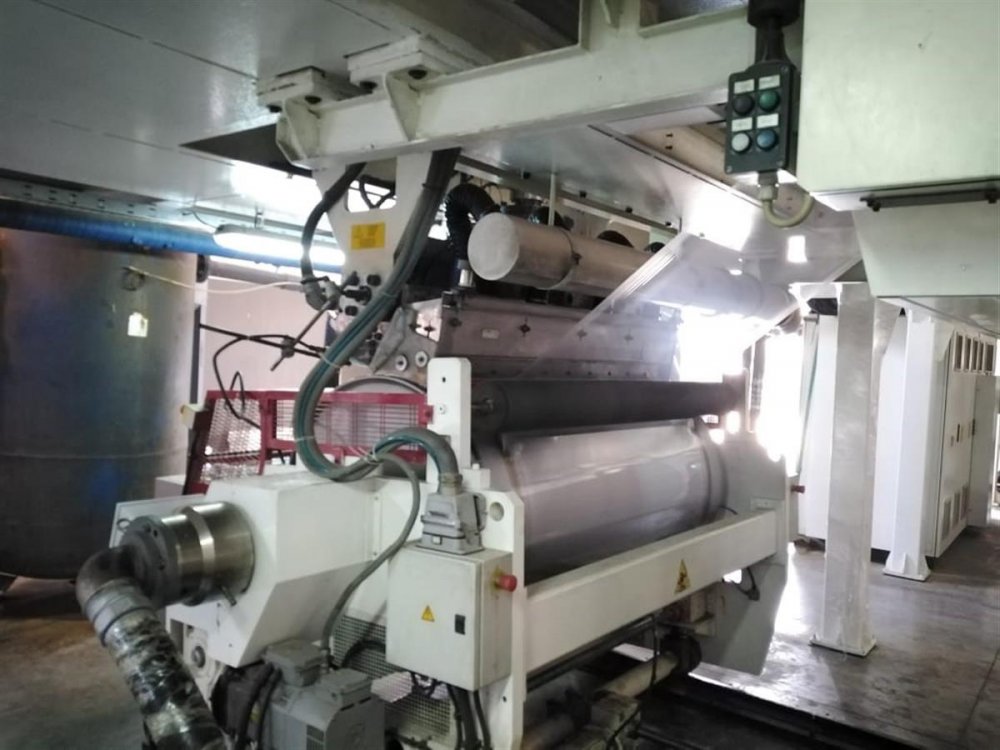

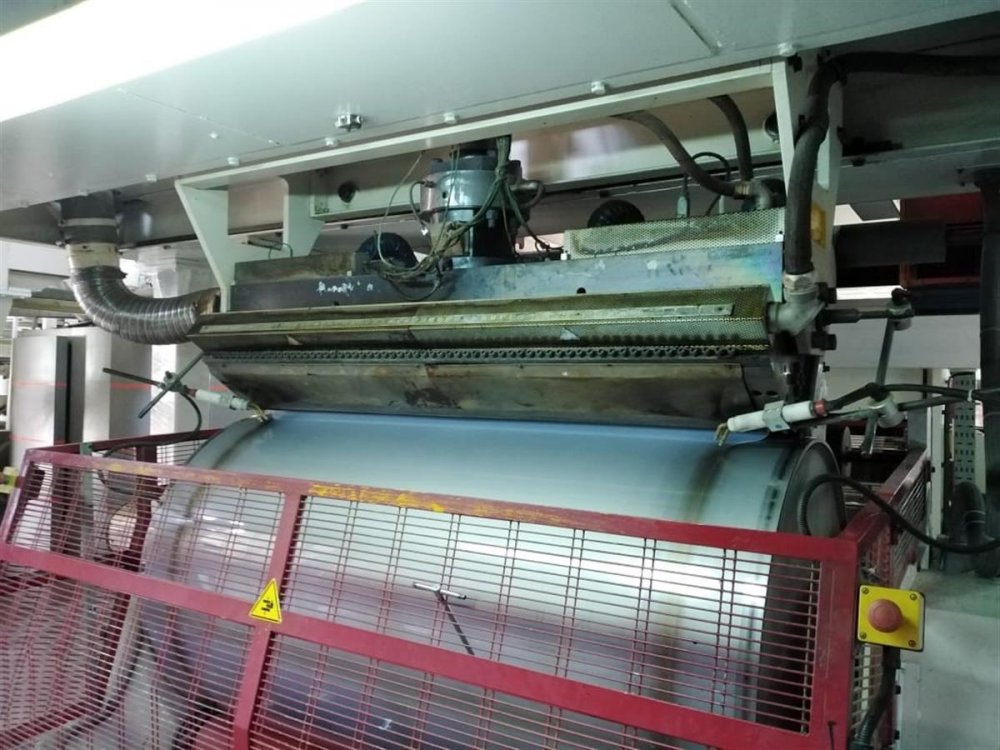

Chill roll unit
960
Thickness controll system
Electronic System
Web guide
Yes
Rewinder max reel diameter (mm)
230 on 3"cores and 80-150mm on 2" cores

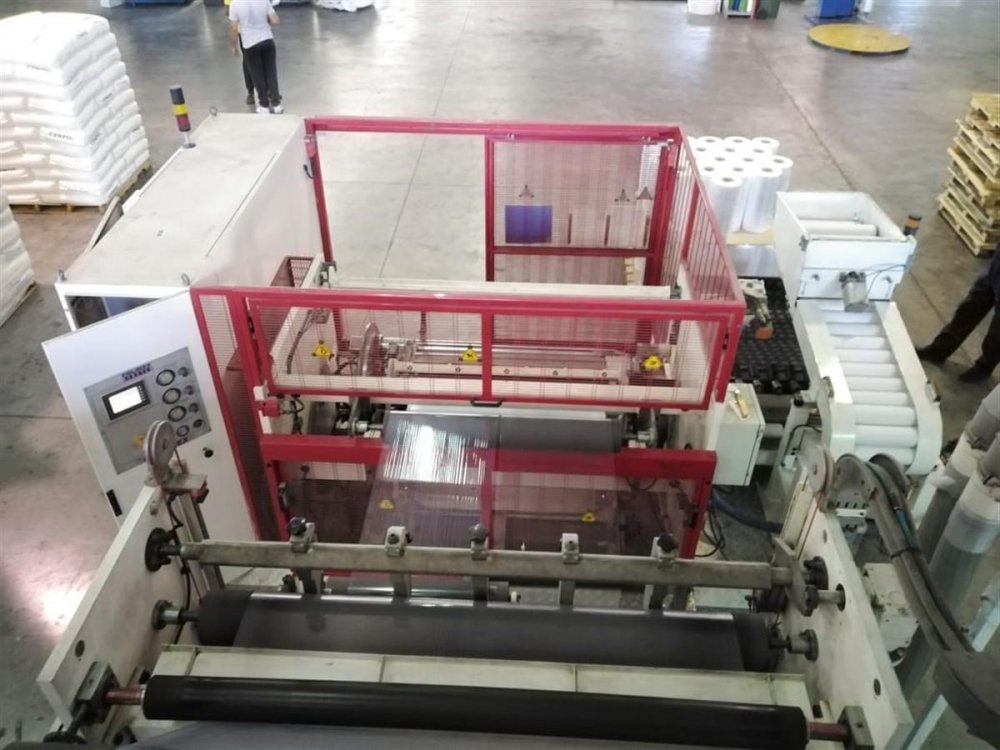

Rewinder description
Automatic and Manual
Note

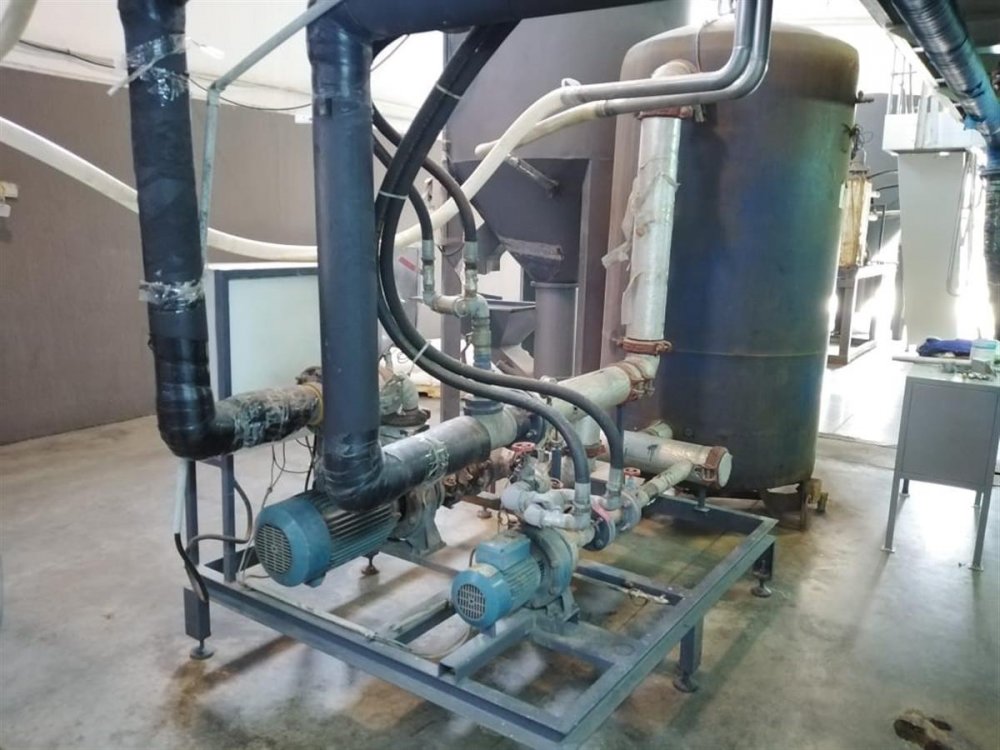

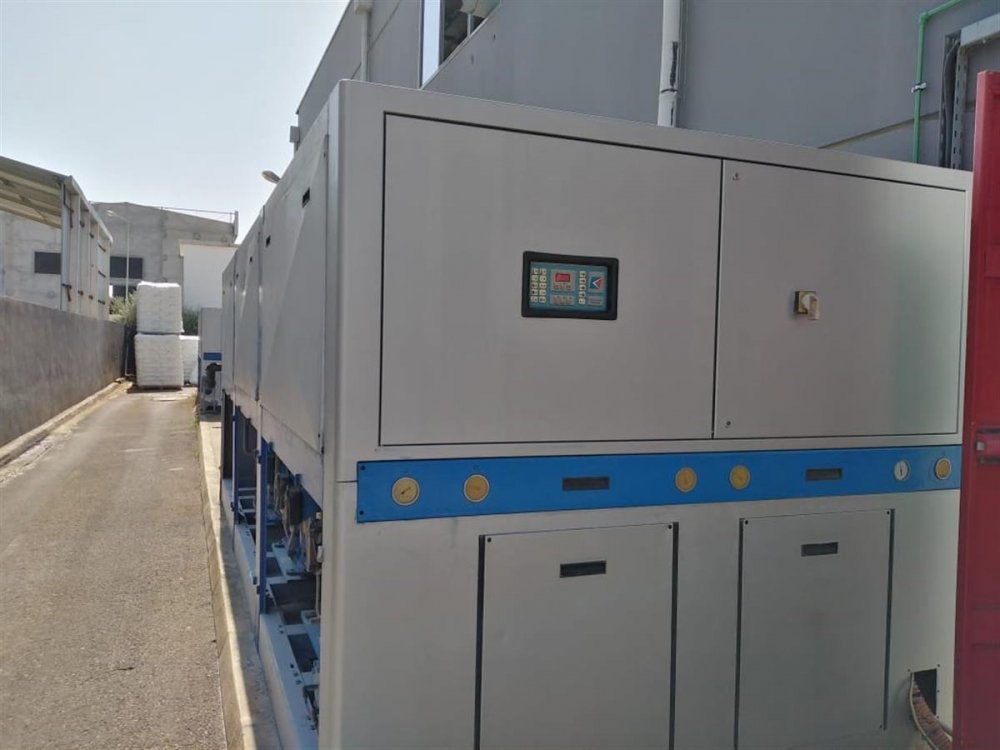

Thickness range: 12-50my Side trim recycler: Croci Chiller: Eurochiller 300Kw Pumping unit
Maschinencode CA200
Hersteller COLINES
Modello HANDrollEX 1000A
Baujahr 2009
Number of layers 3
Film structure ABC
Material Stretch film LLDPE
Film width (mm) 1000
Speed (m/min) up to 600
Output (Kg/h) 600
Extruder 1 Layer ref: A
Screw diam 1 60/30 LD
Extruder 2 Layer ref: B
Screw diam 2 120/30 LD
Extruder 3 Layer ref: C
Screw diam 3 60/30 LD
Head description FARCON with automatic gauge correction
Die width (mm) 1550
Chill roll unit 960
Thickness controll system Electronic System
Web guide Yes
Rewinder max reel diameter (mm) 230 on 3"cores and 80-150mm on 2" cores
Rewinder description Automatic and Manual
Note Thickness range: 12-50my Side trim recycler: Croci Chiller: Eurochiller 300Kw Pumping unit
