- Maschinencode
- FL0695
- Hersteller

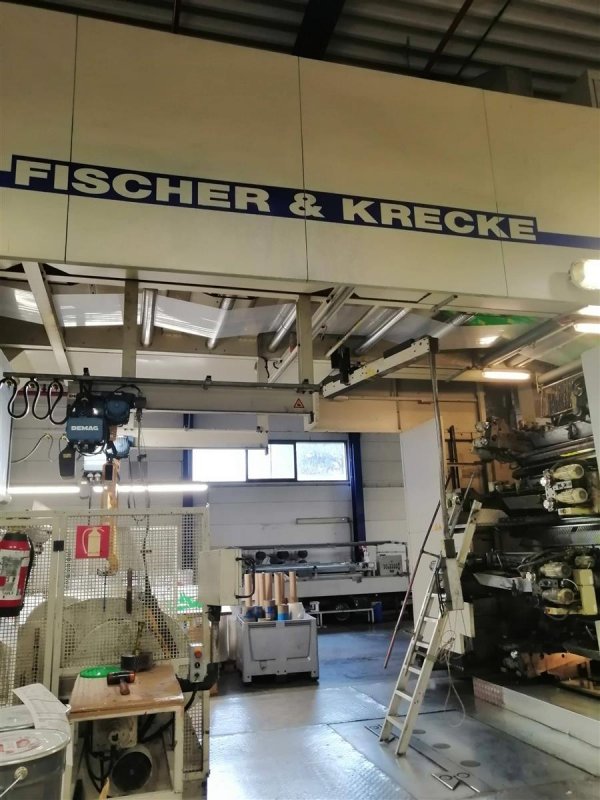

- FISCHER & KRECKE
- Modello
- 34DF/8 CNC
- Baujahr
- 1995
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- No

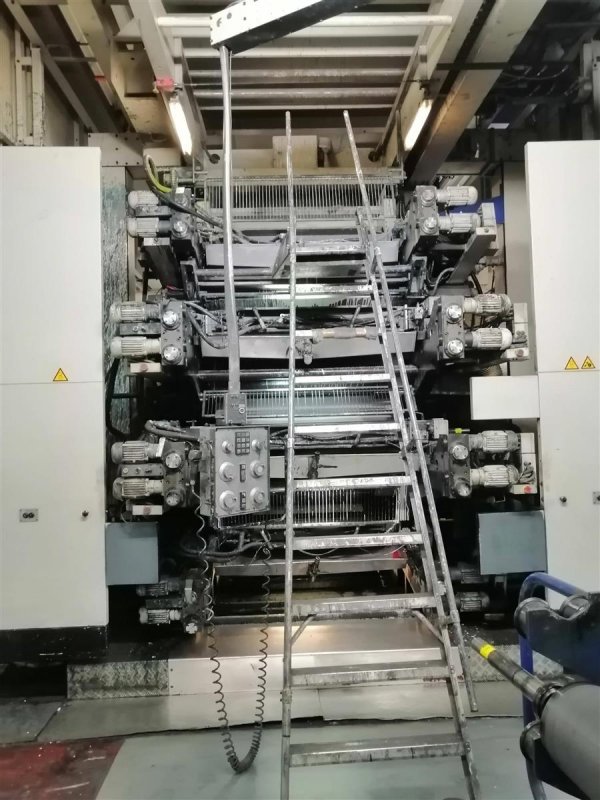

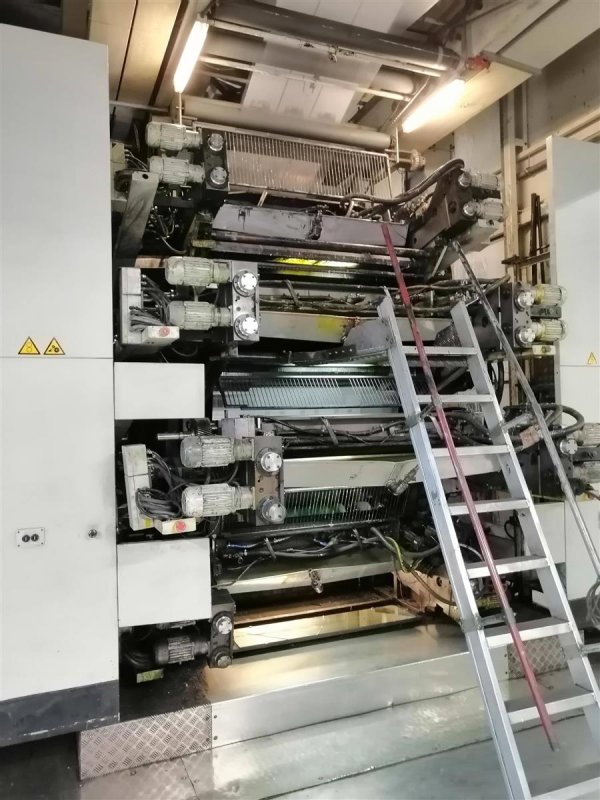

- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1300
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 1100

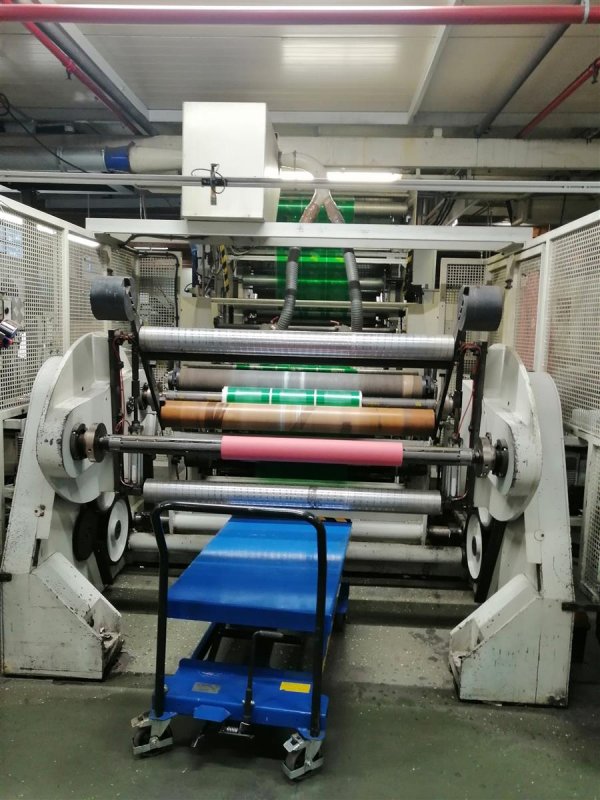

- Unwinder type
- Turret FLYING SPLICE
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret FLYING SPLICE
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans 2 gas burners
- Videocamera
- Yes
- Corona treatment
- NO
- Web guides
- FIFE
- Vyscosity control
- Yes
- Washing system
- yes, F&K
- Inking system
- Ceramic anilox + closed chambered doctor blade
- Anilox
- 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm
- Print Sleeves
- 200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030
- Print cylinders
- Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 ,
- Note
- Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm
| Maschinencode | FL0695 |
| Hersteller | FISCHER & KRECKE |
| Modello | 34DF/8 CNC |
| Baujahr | 1995 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1300 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 1100 |
| Unwinder type | Turret FLYING SPLICE |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret FLYING SPLICE |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans 2 gas burners |
| Videocamera | Yes |
| Corona treatment | NO |
| Web guides | FIFE |
| Vyscosity control | Yes |
| Washing system | yes, F&K |
| Inking system | Ceramic anilox + closed chambered doctor blade |
| Anilox | 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm |
| Print Sleeves | 200 sleeves repeat between 390 mm and 1090 mm ( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 , 780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030 |
| Print cylinders | Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm. Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 , 12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 , |
| Note | Overall sizes: L=17m, W=5m, H=6m Mech speed: 350m/min, working speed: up to 300m/min Diameter of central drum: 2280mm |
