- Maschinencode
- FL1117
- Hersteller
- UTECO
- Modello
- CRYSTAL
- Baujahr
- 2018
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 750

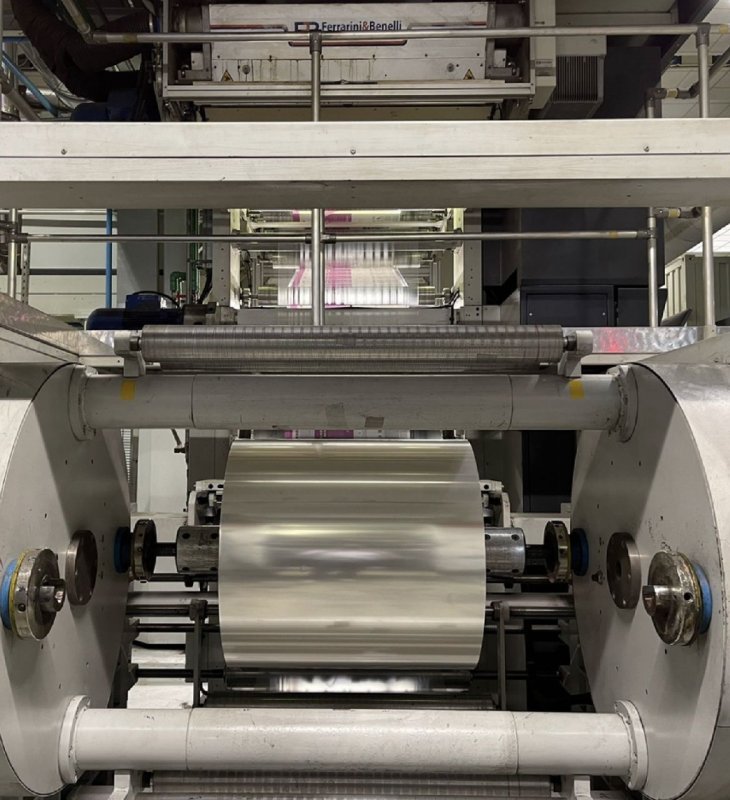

- Unwinder type
- Turret Automatic with roll loading system
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic with roll unloading system
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans final tunnel 5 mt , Thermo oil heat exchangers , automatic air recirculation system with LEL control
- Videocamera
- Yes Grafykontrol double camera with 100% inspection
- Corona treatment
- Yes
- Web guides
- yes in and out Fife OPG
- Vyscosity control
- Yes Automatic Gama G29
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 200 as 10 of each repeat each 10 mm repeat , 330, 340, 350 , 360
| Maschinencode | FL1117 |
| Hersteller | UTECO |
| Modello | CRYSTAL |
| Baujahr | 2018 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 750 |
| Unwinder type | Turret Automatic with roll loading system |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic with roll unloading system |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans final tunnel 5 mt , Thermo oil heat exchangers , automatic air recirculation system with LEL control |
| Videocamera | Yes Grafykontrol double camera with 100% inspection |
| Corona treatment | Yes |
| Web guides | yes in and out Fife OPG |
| Vyscosity control | Yes Automatic Gama G29 |
| Washing system | Yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 200 as 10 of each repeat each 10 mm repeat , 330, 340, 350 , 360 |
