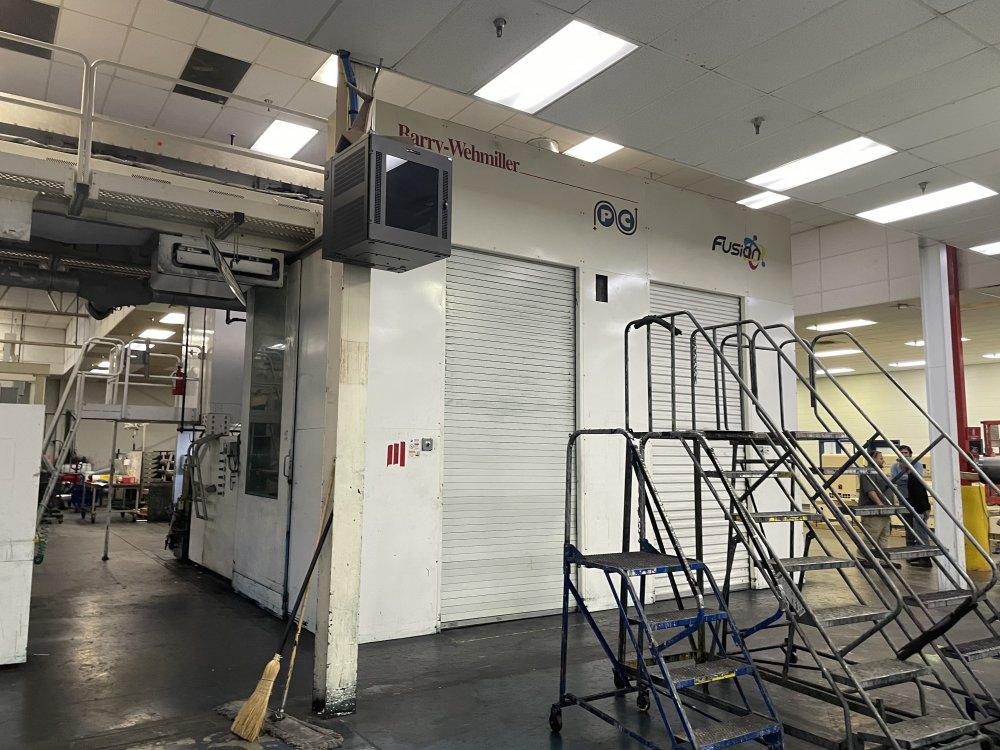

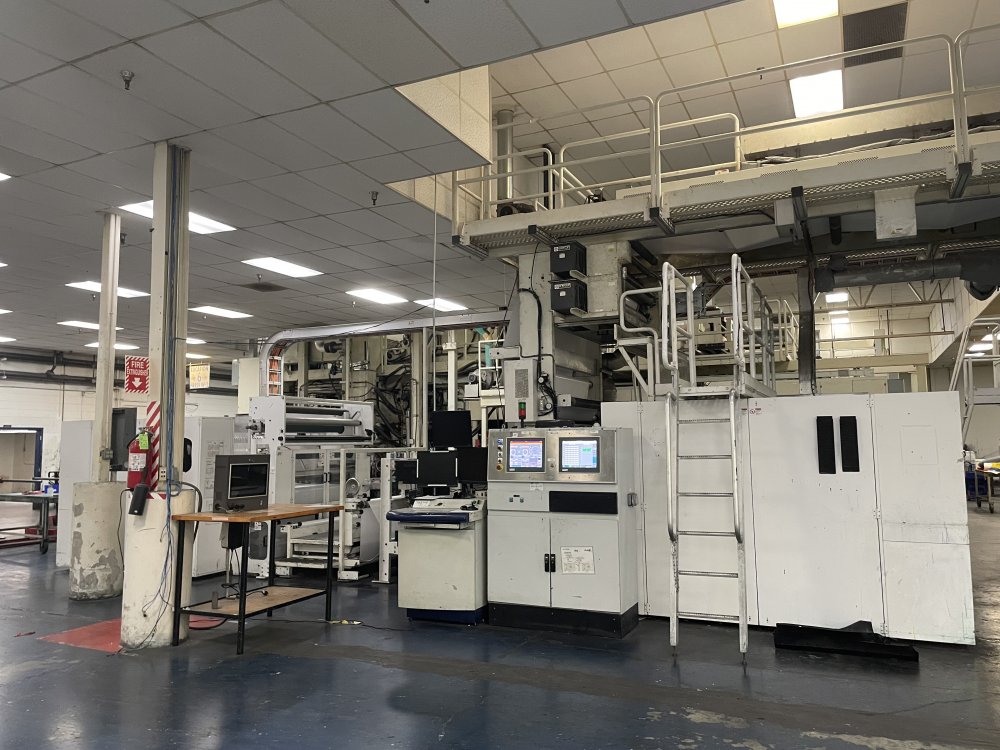

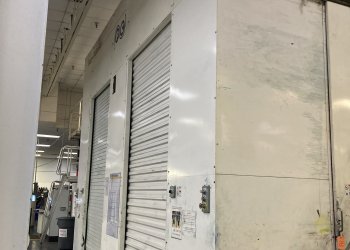

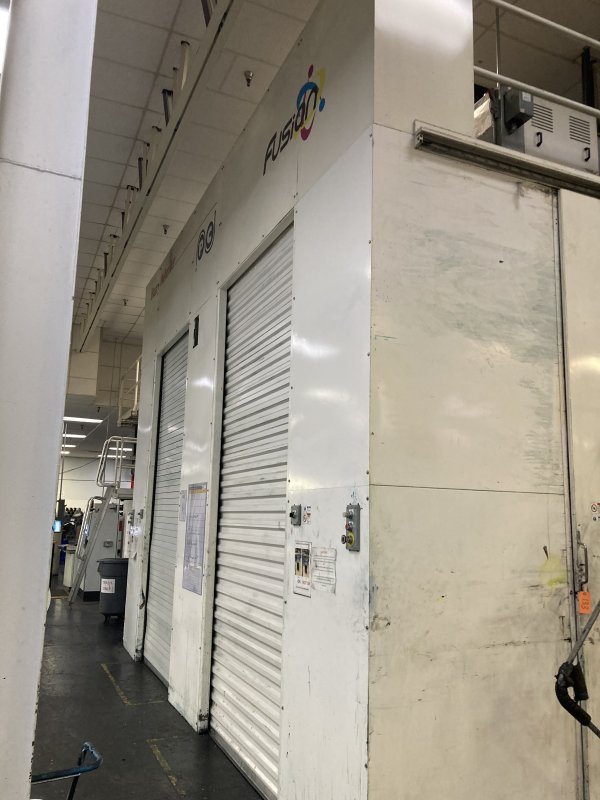

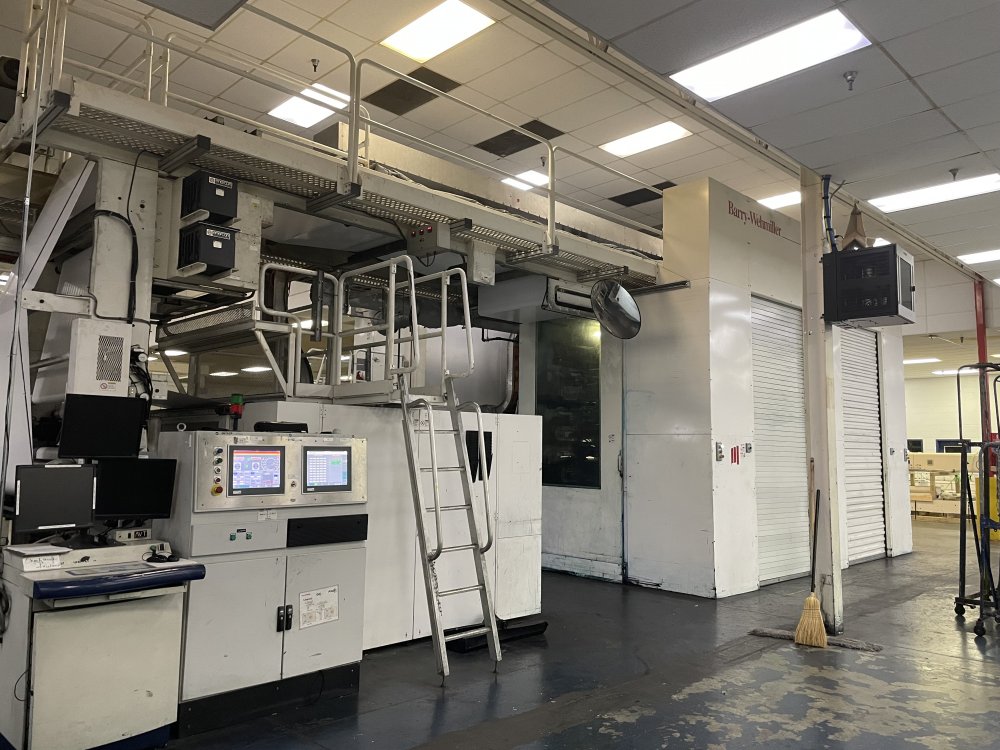

PCMC FUSION Flexodruck Maschine 10 farben // Flexo CI // Printing machines // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

** SOLD **

Fotogalerie Video

Maschinencode: FL1064
Hersteller: PCMC
Modello: FUSION
Baujahr: 2012
Number of colors: 10
Print possibilityes: 10+0
Gearless: Yes
Fast sleeve change: Yes

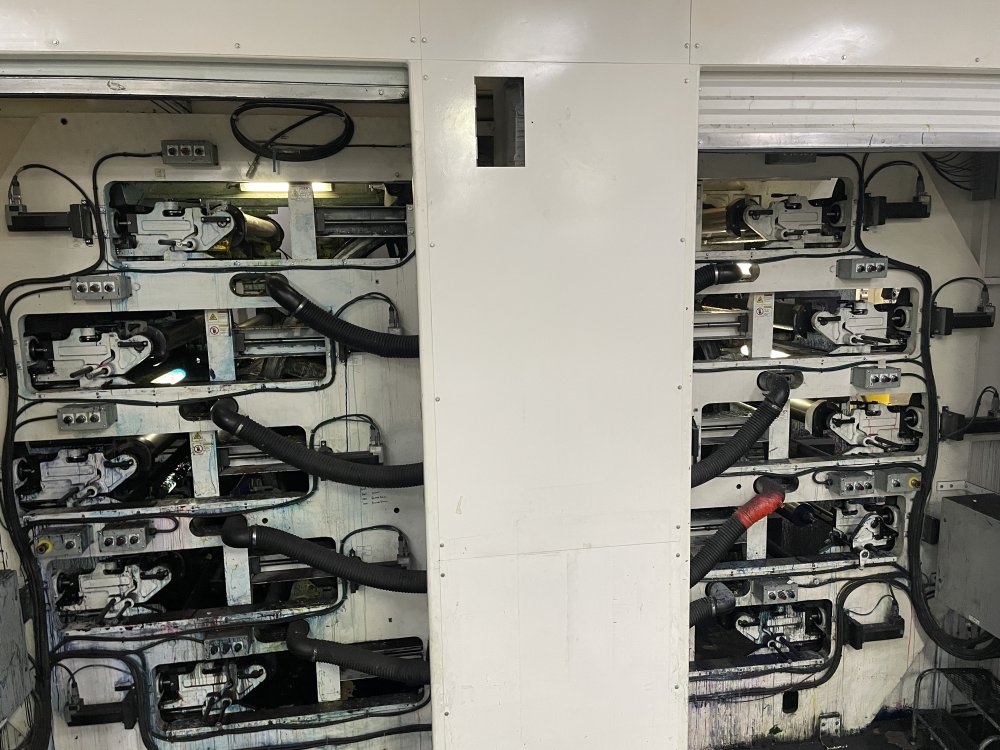

4 motor per deck CNC position system: Yes

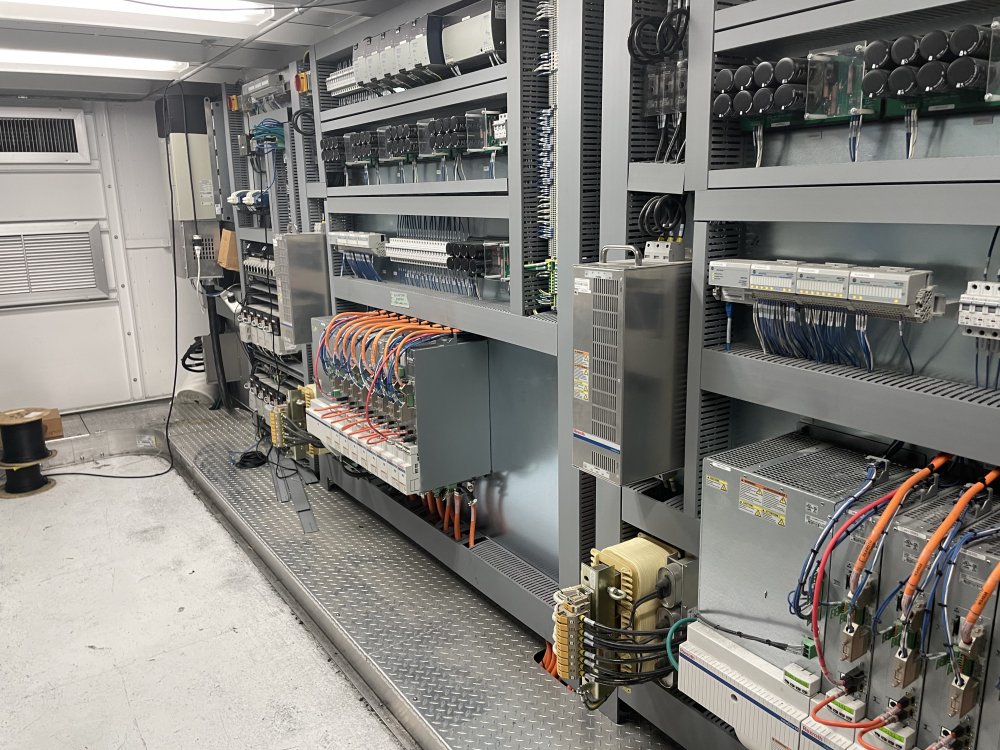

Computer supervision: Yes
Web width (mm): 1320
Print width (mm): 1300
Min print repeat (mm): 360
Max print repeat (mm): 900
Unwinder type: Automatic Turret Non stop , upper and under splice
Max reel diameter unwinder (mm): 800
Rewinder type: Automatic Turret Non stop , upper and under splice
Max reel diameter rewinder (mm): 800

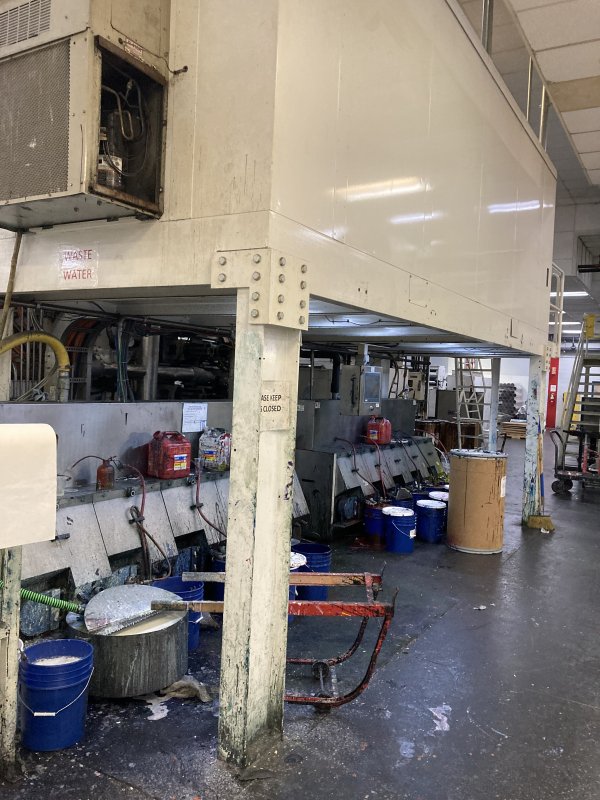

Drying: 2 zones 4 fans final tunnel

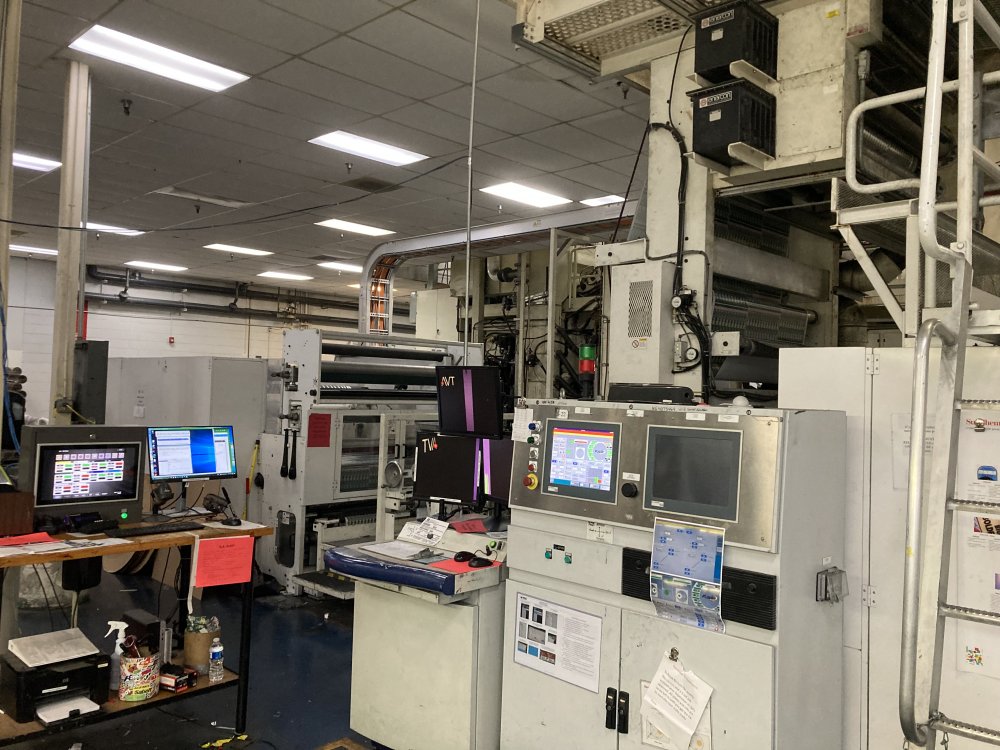

Videocamera: AVT ARGUS
Corona treatment: Yes Enercon 10 Kw Driven

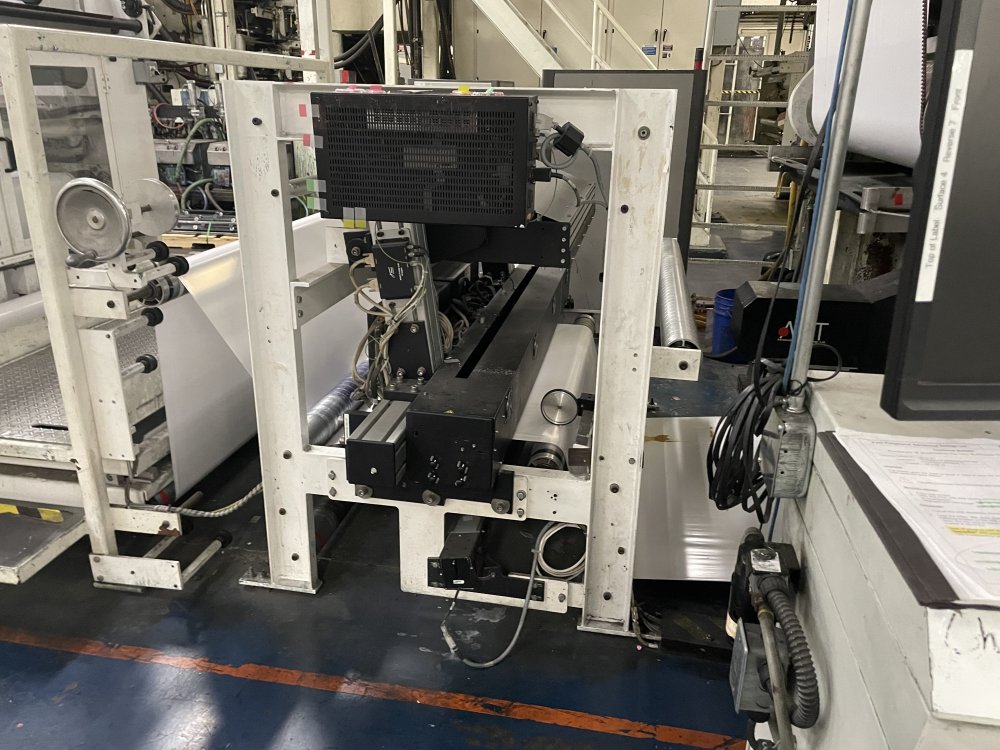

Web guides: Yes in and out Web guide OPG type
Vyscosity control: INKSPEC

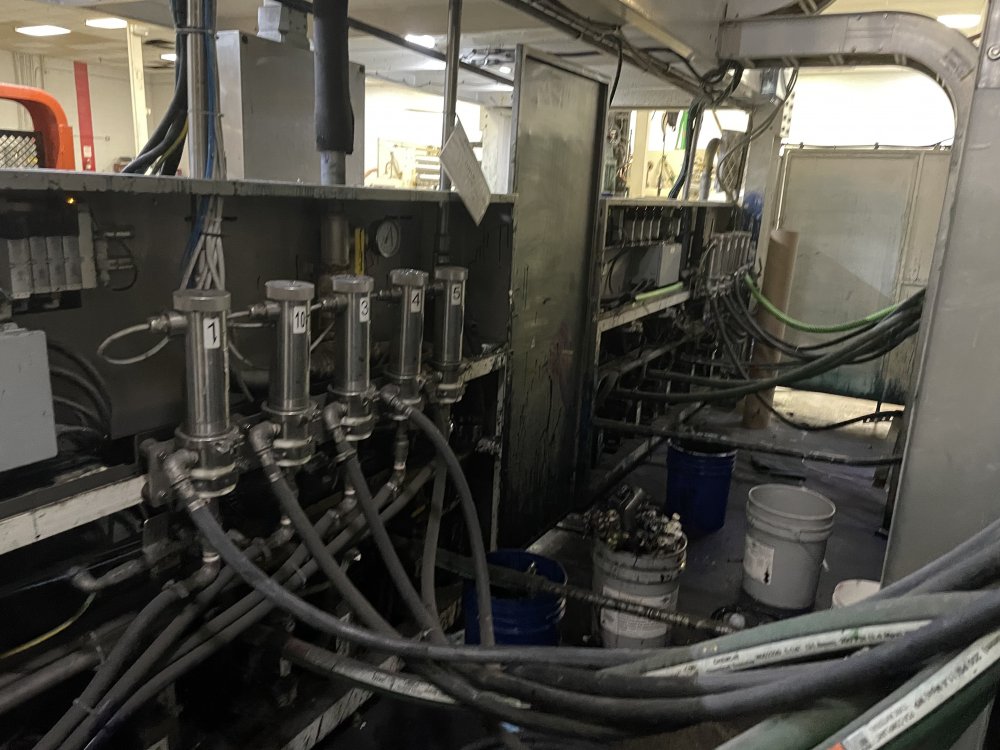

Washing system: Yes VORTEX HP pumping and wash up system with individual ink circulation and auto wash up control each deck
Inking system: Closed chamber doctor blades with toolless blade clamping and changing
Anilox: 15 ceramic anilox sleeves
Print Sleeves: approx 350
Note: Max speed 450 mpm Materials LDPE, MDPE , HDPE up to 150 microns CPP up to 100 microns , PET up to 100 microns , Paper up to 120 gsm CI drum Hastalloy coated Available as optional: Plate mounter Heaford Cobra, year 2013. 4 cameras
