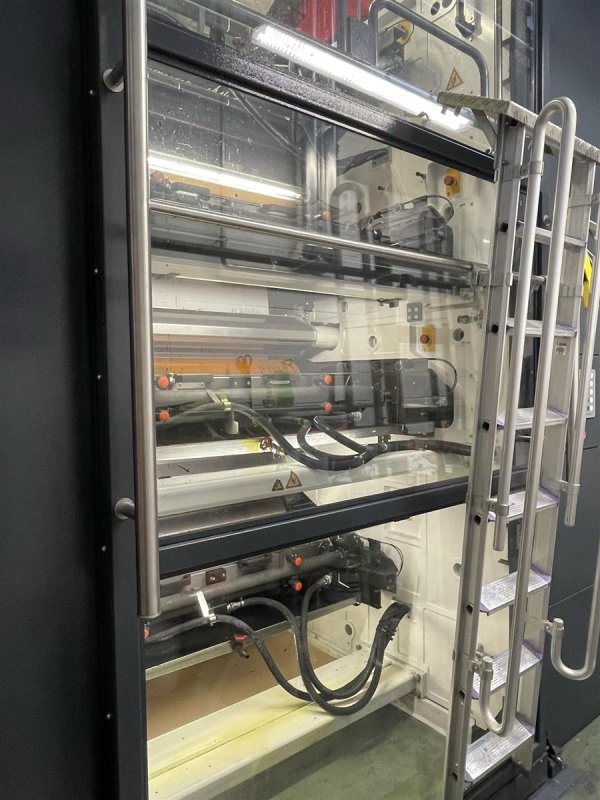

- Maschinencode
- FL972
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello

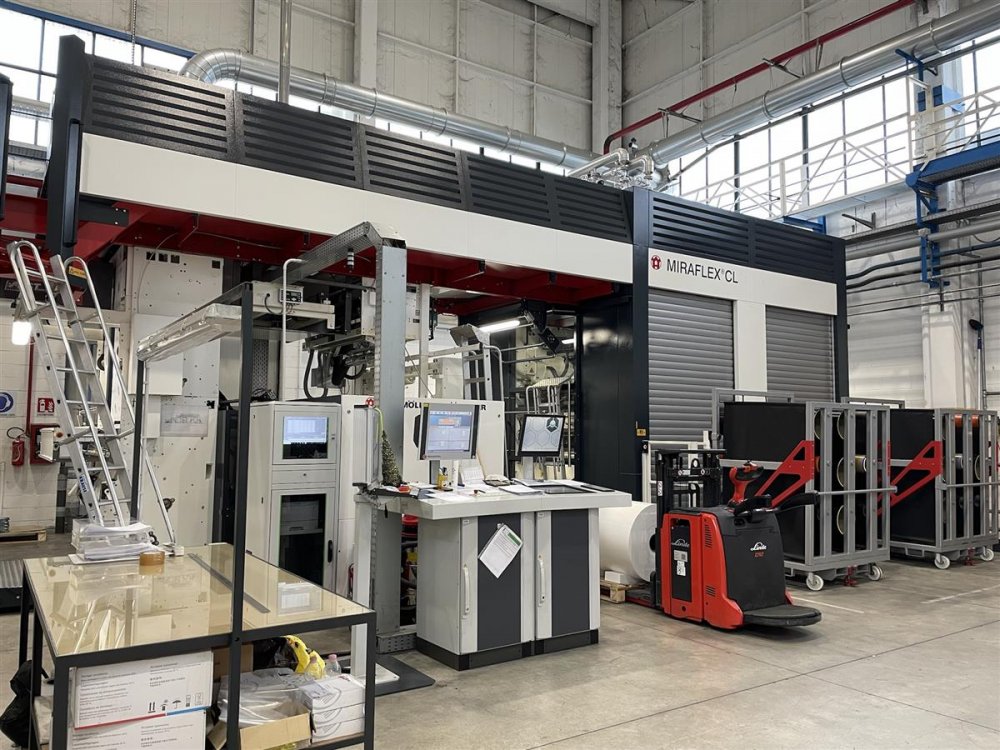

- MIRAFLEX CL8
- Baujahr
- 2018
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

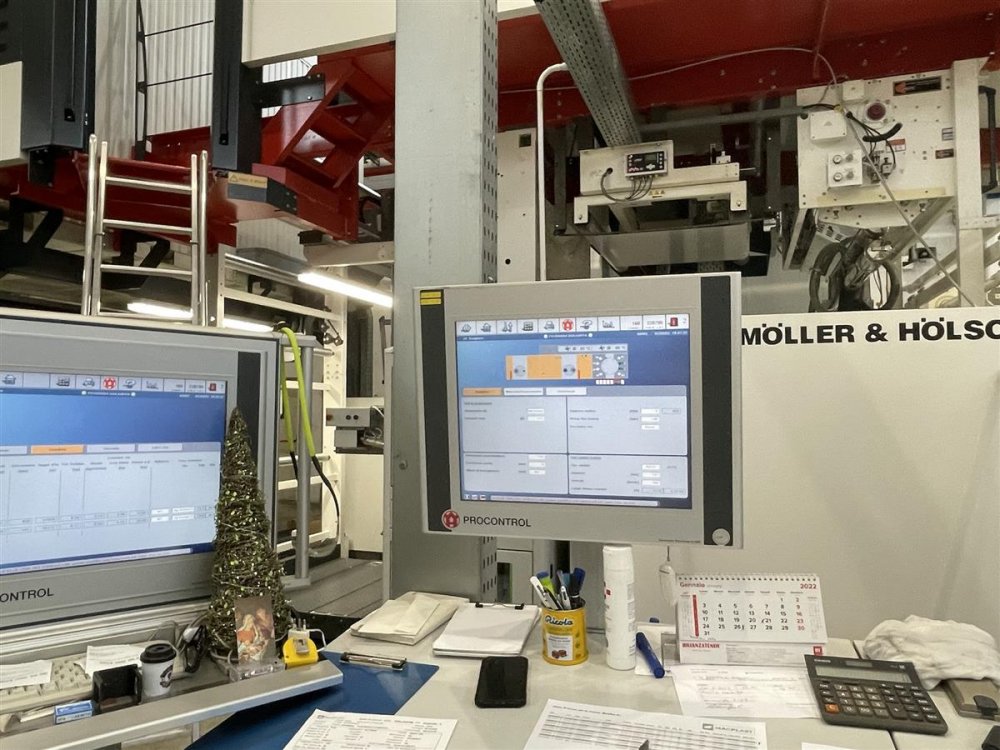

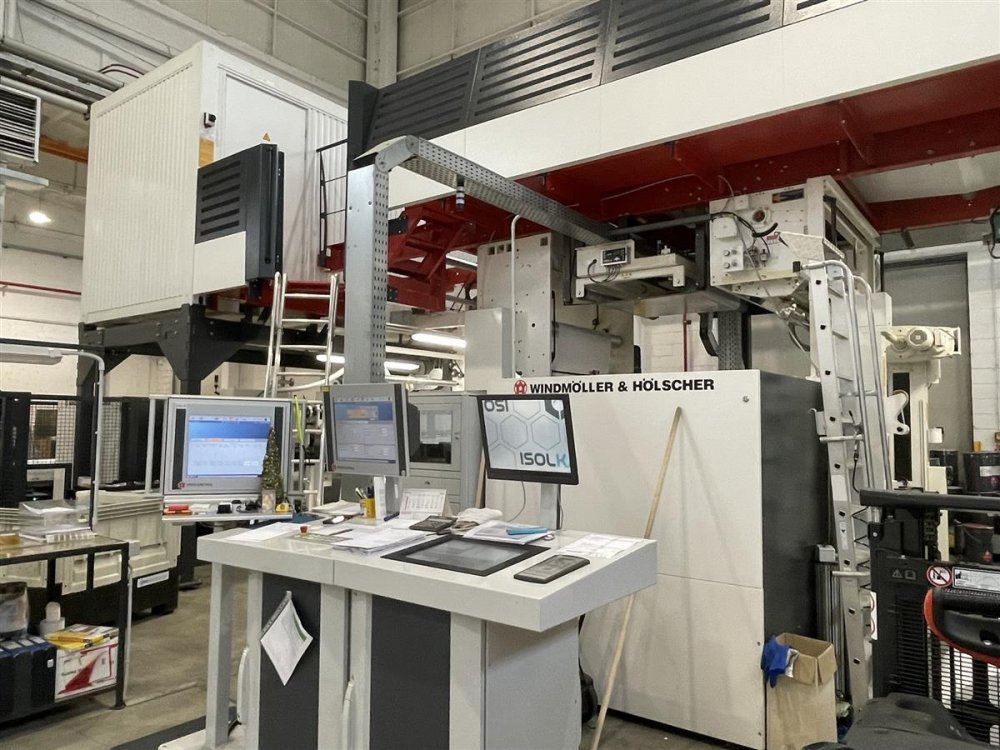

- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 500
- Max print repeat (mm)
- 1130

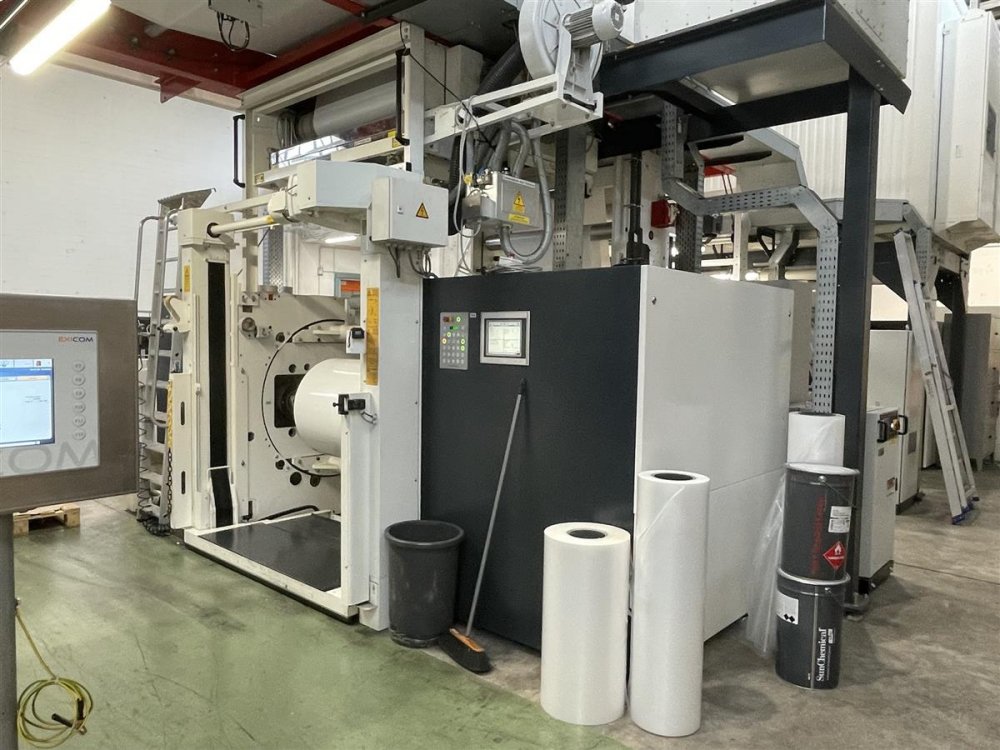

- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000

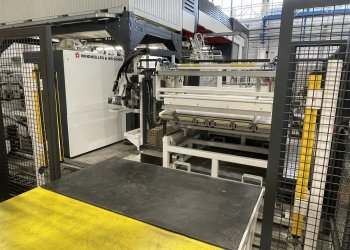

- Rewinder type

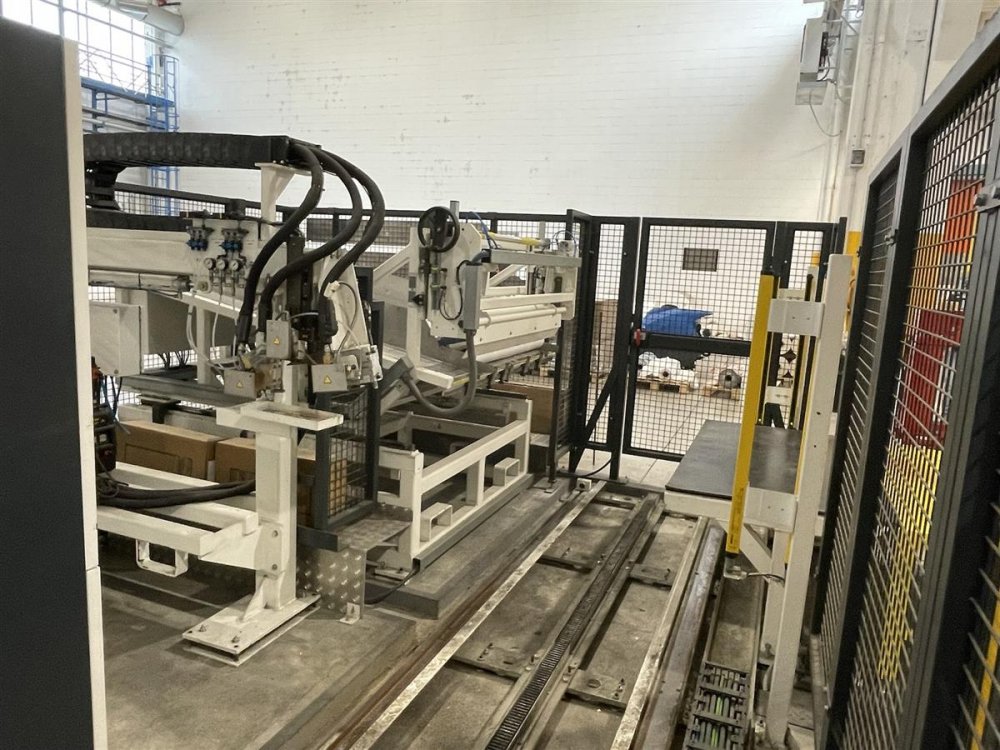

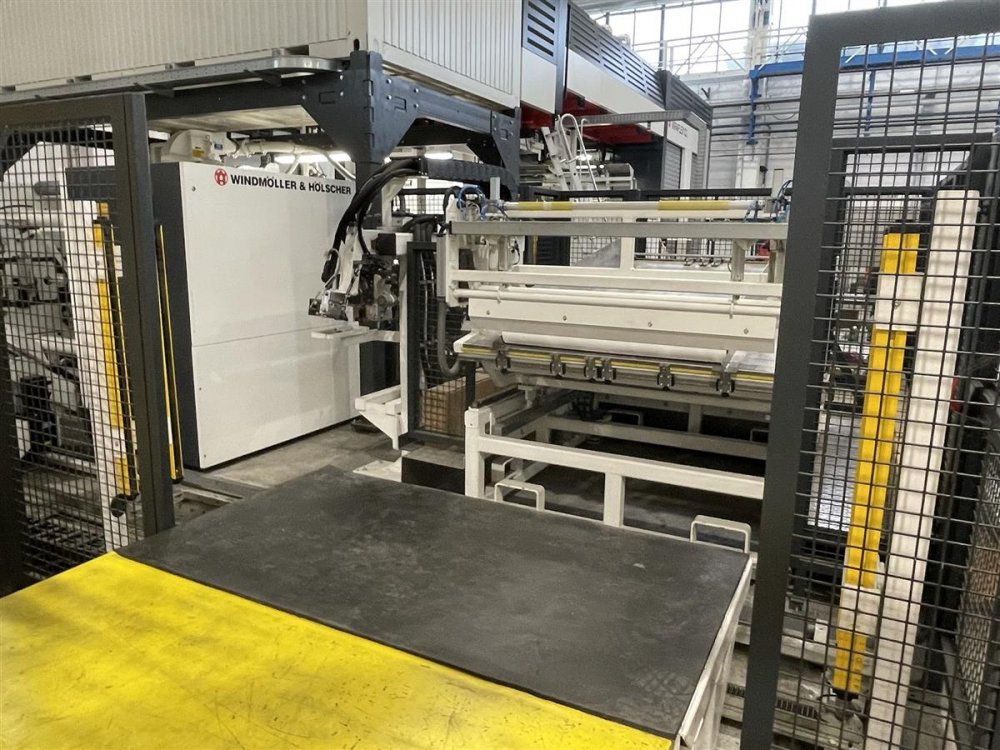

- Turret automatic. Automatic finished reel unloading, cores insertion into shafts and new shafts loading. All automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans , final tunnel, Thermo oil heaters included Thermo oil boiler gas burner heated
- Videocamera
- BST,3 chip with register control
- Corona treatment
- MERO (year 2021
- Web guides
- 2 X BST
- Vyscosity control
- Automatic (Easy col) with coolimng system and temperature control
- Washing system
- Automatic

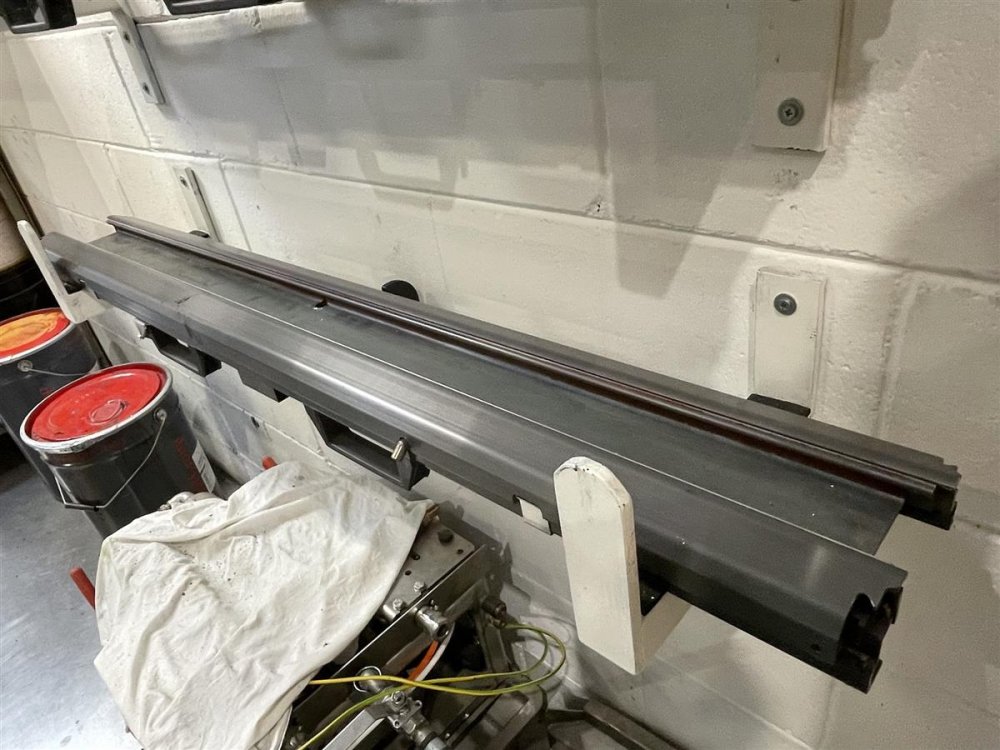

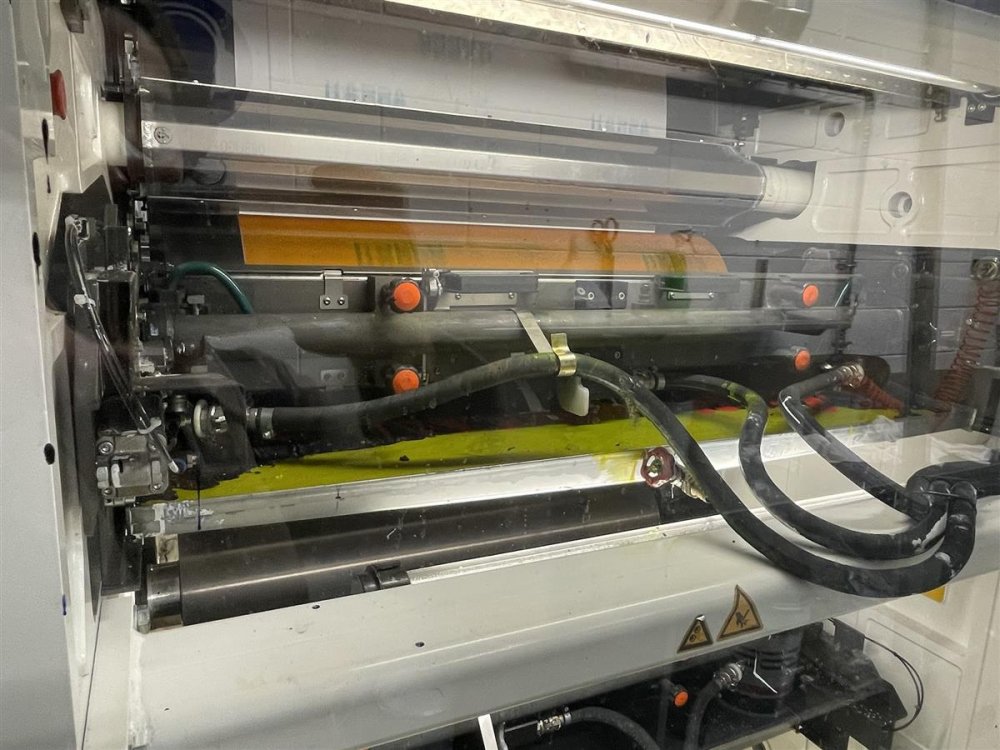

- Inking system
- Closed chamber doctor blade
- Anilox
- 6X400/2X340/2X280/1X220/2X200/1X170/1X120/1X100

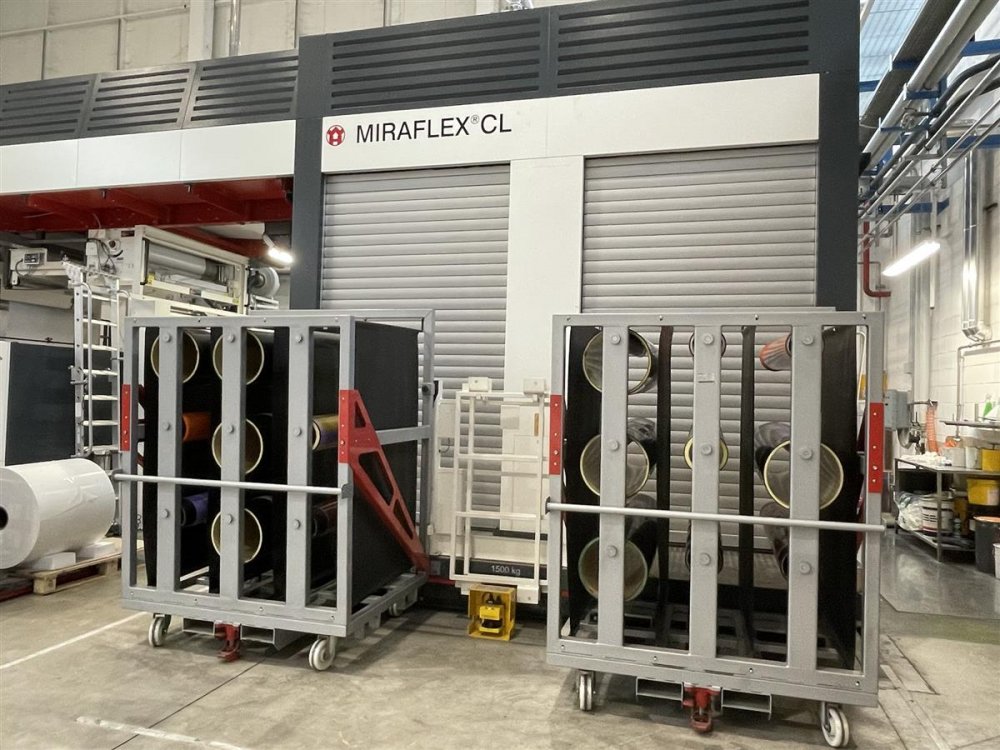

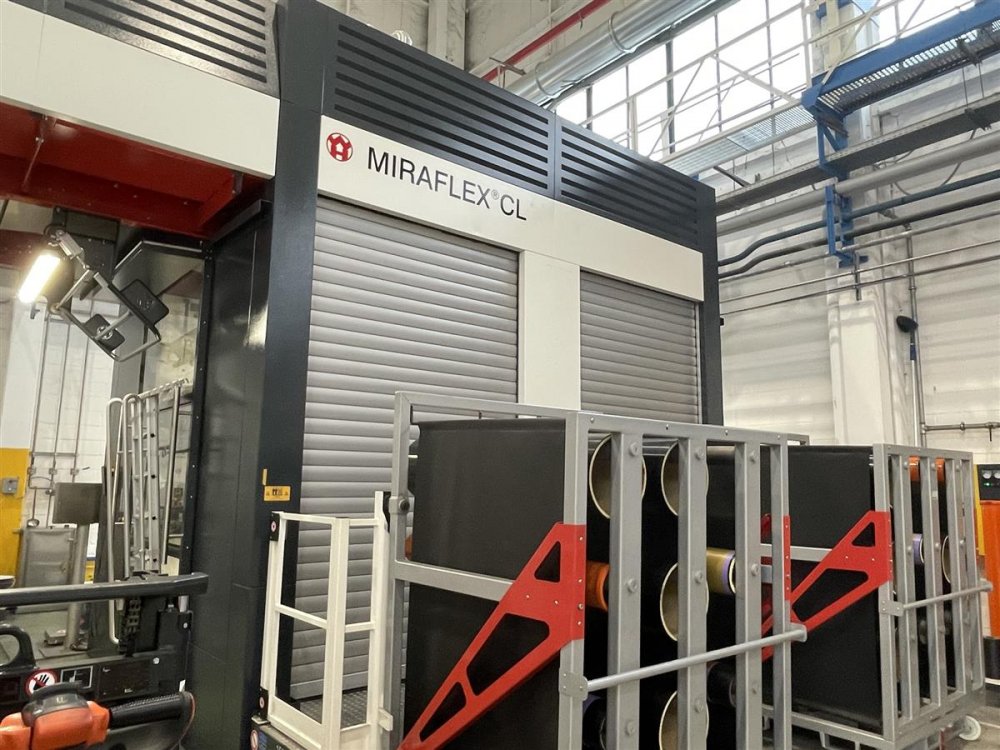

- Print Sleeves
- 8X500/560/570/590/630/650/680/750/800/820/880/900/9701010/1020/1030/1050/1065/10801090/1120
- Note
- Chiller and temperature control included Additional ancillaries included : Plate mounter Anilox washing system Ink tanks and parts washing system and solvent distillation -recovery system
| Maschinencode | FL972 |
| Hersteller | WINDMÖLLER & HÖLSCHER |
| Modello | MIRAFLEX CL8 |
| Baujahr | 2018 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 500 |
| Max print repeat (mm) | 1130 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret automatic. Automatic finished reel unloading, cores insertion into shafts and new shafts loading. All automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans , final tunnel, Thermo oil heaters included Thermo oil boiler gas burner heated |
| Videocamera | BST,3 chip with register control |
| Corona treatment | MERO (year 2021 |
| Web guides | 2 X BST |
| Vyscosity control | Automatic (Easy col) with coolimng system and temperature control |
| Washing system | Automatic |
| Inking system | Closed chamber doctor blade |
| Anilox | 6X400/2X340/2X280/1X220/2X200/1X170/1X120/1X100 |
| Print Sleeves | 8X500/560/570/590/630/650/680/750/800/820/880/900/9701010/1020/1030/1050/1065/10801090/1120 |
| Note | Chiller and temperature control included Additional ancillaries included : Plate mounter Anilox washing system Ink tanks and parts washing system and solvent distillation -recovery system |
