- Maschinencode
- FL862
- Hersteller
- WINDMÖLLER & HÖLSCHER
- Modello
- PRIMAFLEX CM
- Baujahr
- 2005
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes

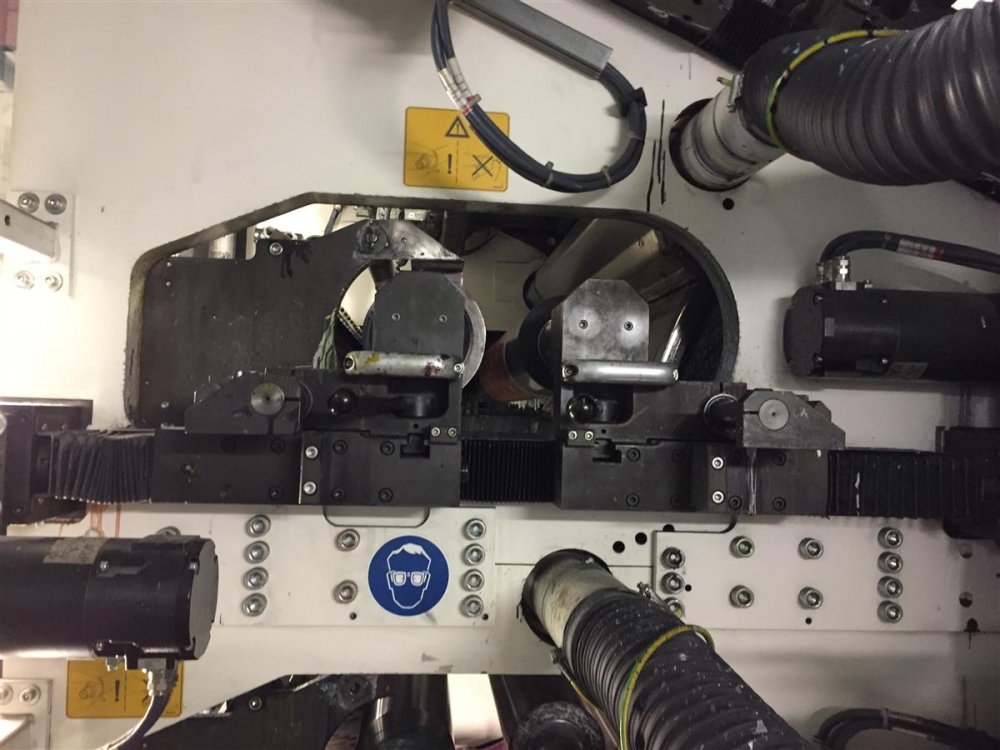

- 4 motor per deck CNC position system
- Yes

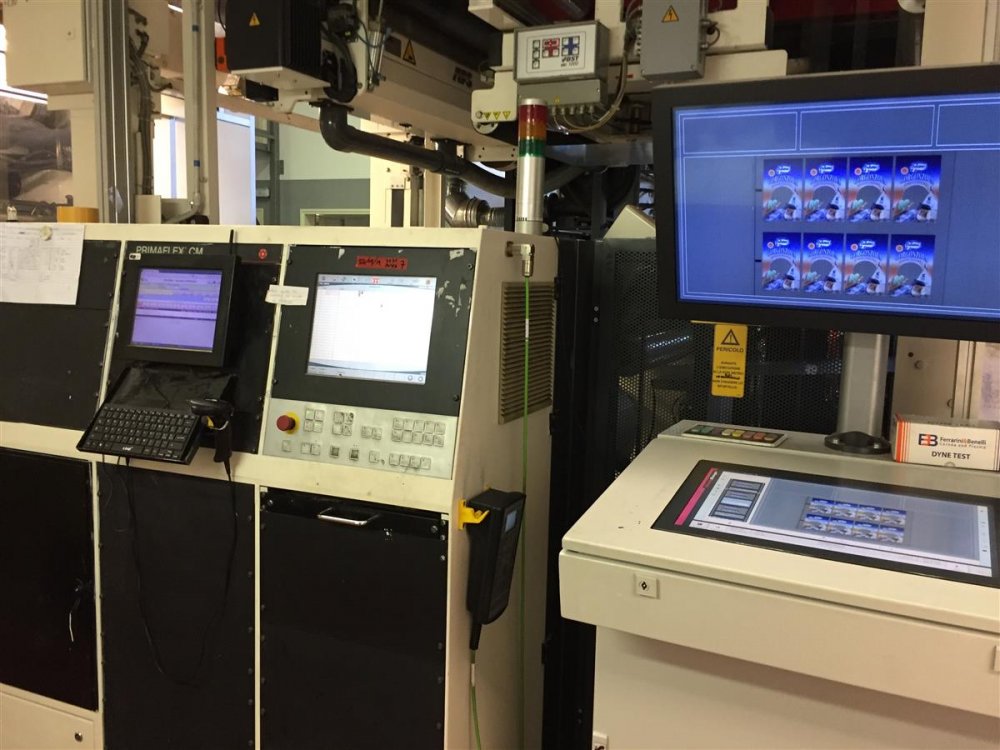

- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800

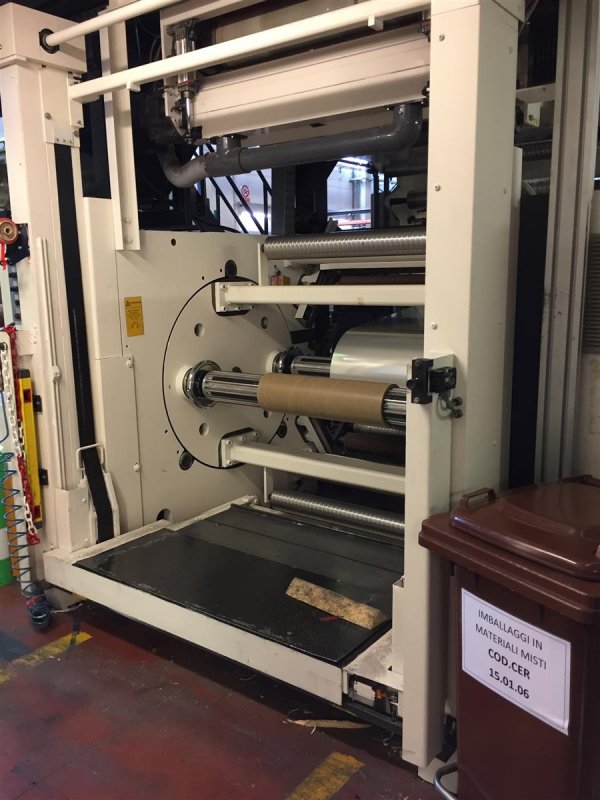

- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 800

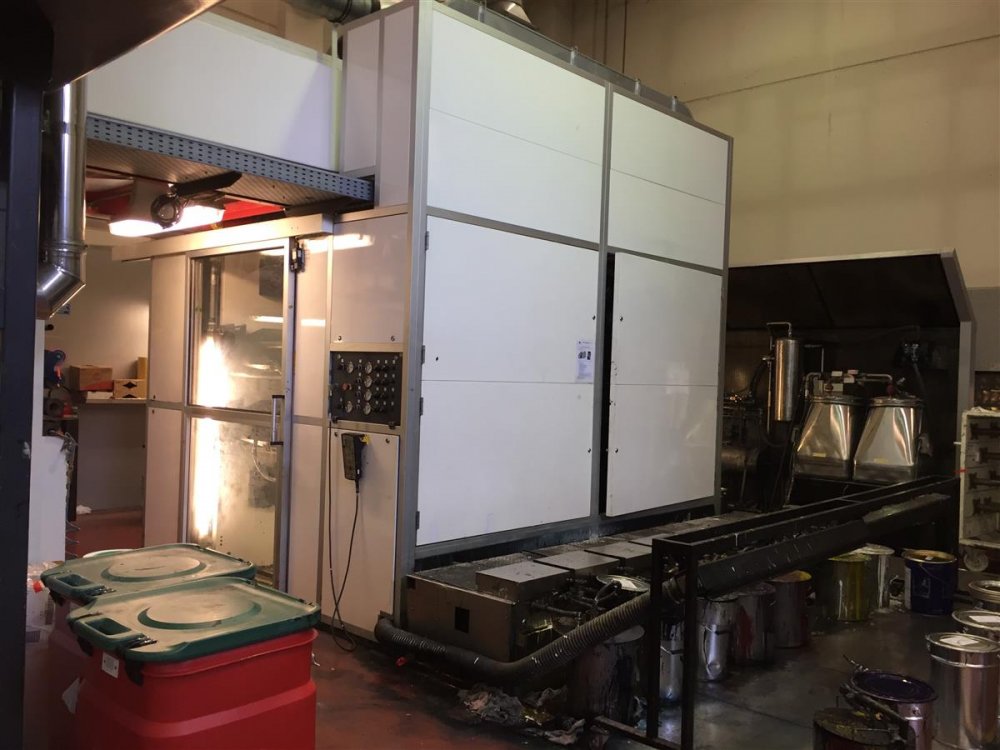

- Drying
- 2 zones, 2 thermal oil heaters, 4 fans

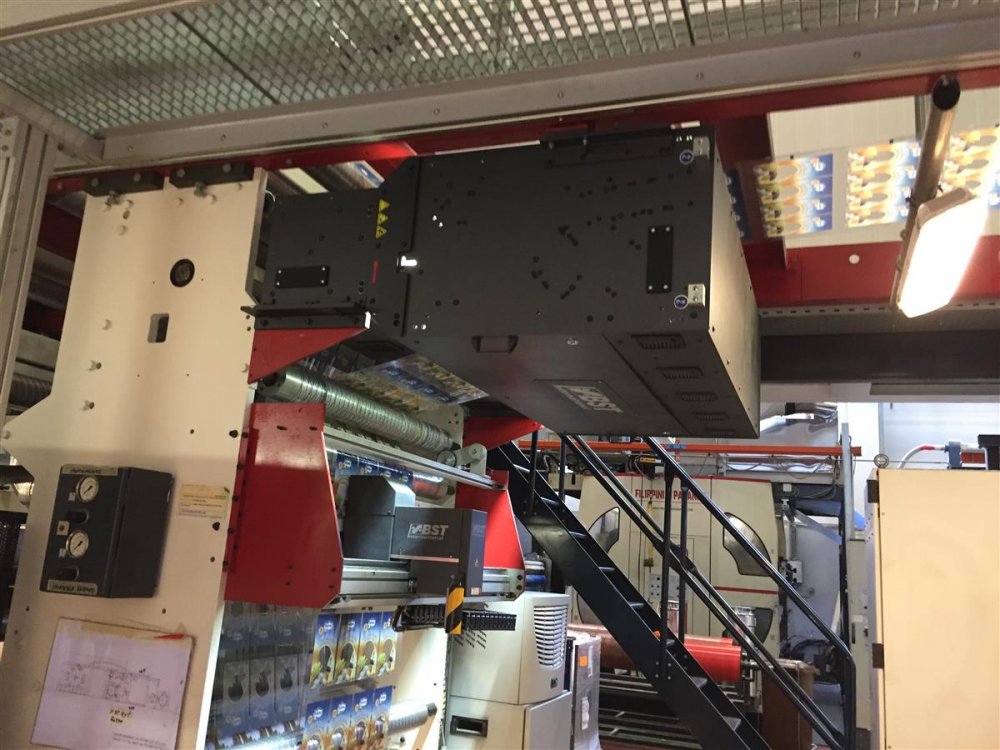

- Videocamera
- Qview BST 100% inspection installed in year 2015 Handy cam BST video camera
- Corona treatment
- AFS, driven
- Web guides
- BST
- Washing system
- Turboclean 400
- Inking system
- closed chambers doctor blades
- Anilox
- Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5
- Print Sleeves
- approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750
- Note
- SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers
Maschinencode | FL862 |
Hersteller | WINDMÖLLER & HÖLSCHER |
Modello | PRIMAFLEX CM |
Baujahr | 2005 |
Number of colors | 8 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1050 |
Print width (mm) | 1000 |
Min print repeat (mm) | 300 |
Max print repeat (mm) | 800 |
Unwinder type | TURRET |
Max reel diameter unwinder (mm) | 800 |
Rewinder type | TURRET |
Max reel diameter rewinder (mm) | 800 |
Drying | 2 zones, 2 thermal oil heaters, 4 fans |
Videocamera | Qview BST 100% inspection installed in year 2015 Handy cam BST video camera |
Corona treatment | AFS, driven |
Web guides | BST |
Washing system | Turboclean 400 |
Inking system | closed chambers doctor blades |
Anilox | Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5 |
Print Sleeves | approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750 |
Note | SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers |
