- Machine code
- SA19
- Manufacturer
- NEW LONG
- Modello
- 6M
- Year
- 1972
- Тип
- Tuber
- Sack dimensions (mm)
- Tube Width (Gusseted): 368 - 495mm, Tube Width (Flat): 368 - 597mm,
- Note

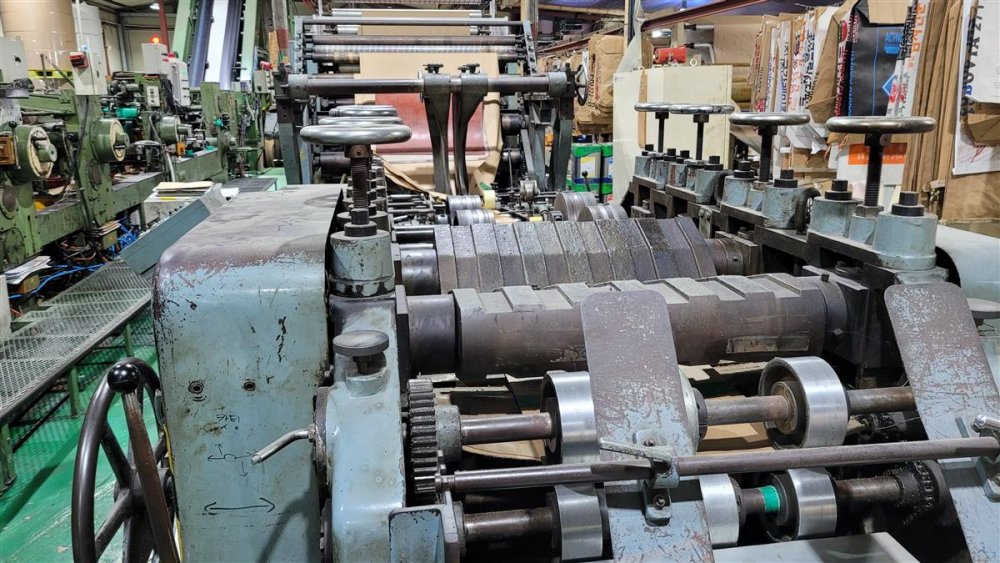

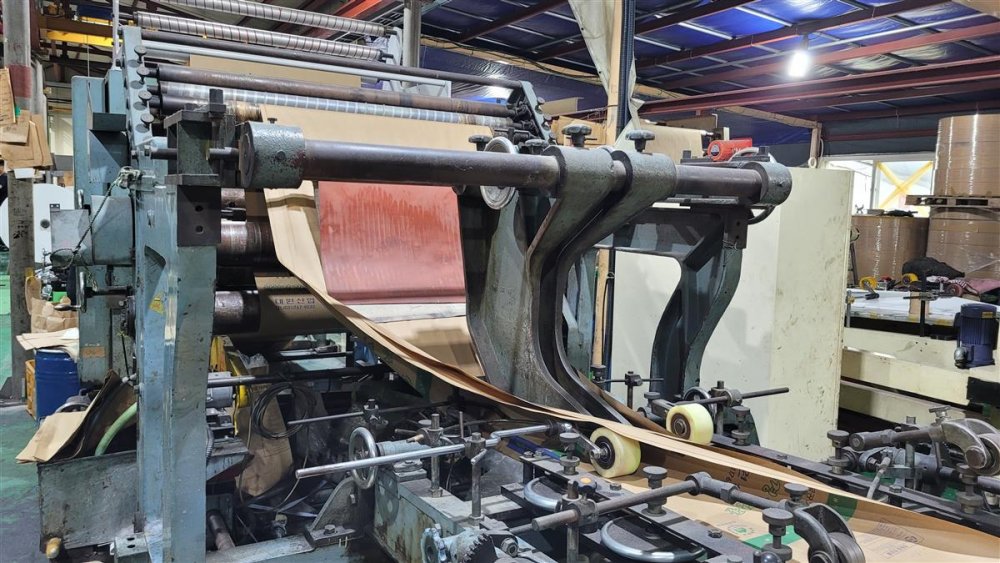

- TUBER + PRINTER+ SEWING MACHINE Newlong Tuber consists of a W&H 4 col printer and sewing machine. In addition, Newlong tuber can produce gusseted tubers and flat tubers. Flat tubers make paper sacks by bottomer, and gusseted tubers can make open-mouth paper sacks with a sewing machine. - Cutting Length: 508~1,092mm - Tube Width (Gusseted): 368~495mm - Tube Width (Flat): 368~597mm - Gusset Width: 76~152mm - Valve Extension Height: 25.4mm - Valve Extension Width: 64mm - Number of Ply: Up to 6 plies - Paper Width: 1,219mm - Main Drive Motor: 15KW -Speed: 200 tubes/min
| Machine code | SA19 |
| Manufacturer | NEW LONG |
| Modello | 6M |
| Year | 1972 |
| Тип | Tuber |
| Sack dimensions (mm) | Tube Width (Gusseted): 368 - 495mm, Tube Width (Flat): 368 - 597mm, |
| Note | TUBER + PRINTER+ SEWING MACHINE Newlong Tuber consists of a W&H 4 col printer and sewing machine. In addition, Newlong tuber can produce gusseted tubers and flat tubers. Flat tubers make paper sacks by bottomer, and gusseted tubers can make open-mouth paper sacks with a sewing machine. - Cutting Length: 508~1,092mm - Tube Width (Gusseted): 368~495mm - Tube Width (Flat): 368~597mm - Gusset Width: 76~152mm - Valve Extension Height: 25.4mm - Valve Extension Width: 64mm - Number of Ply: Up to 6 plies - Paper Width: 1,219mm - Main Drive Motor: 15KW -Speed: 200 tubes/min |
