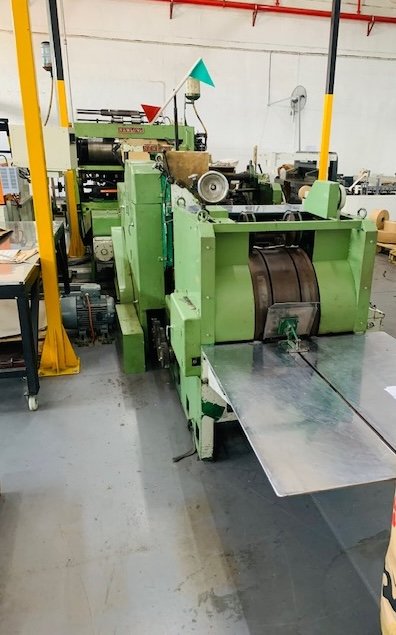

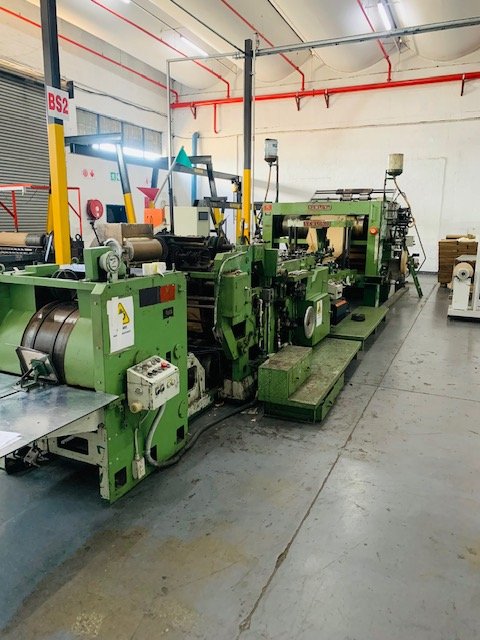

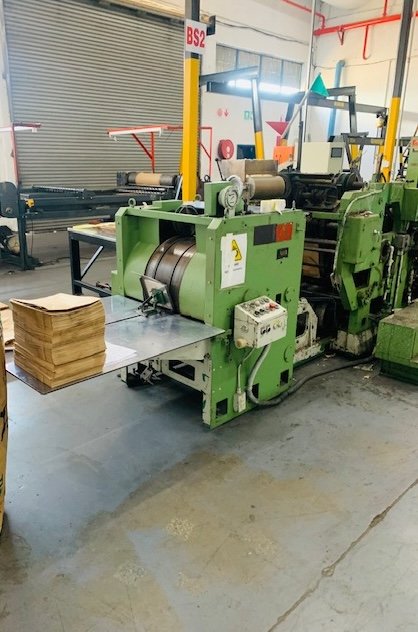

- Machine code
- SO338
- Manufacturer
- NEW LONG
- Modello
- 117T+ 506TH
- Year
- 1980
- Width (mm)
- 1200
- Feed:
- Reel fed
- Handel unit
- Flat
- Bag length max (mm)
- 530
- Bag length min (mm)
- 260
- Bag width max (mm)
- 320
- Bag width min (mm)
- 220
- Bottom width max (mm)
- 160
- Bottom width (mm)
- 120
- Cycle / min
- 70 bags per min (or 4,200 per hour)
- Note
- Cut length/Pull : 450 – 640 mm Handle : Flat Handle 10 mm width Patch paper: 160 x 50 mm (width x height) Gears available: 500mm – 51teeth, 540mm-55teeth, 570mm-58teeth, Former plates available: 320mm, 260mm
| Machine code | SO338 |
| Manufacturer | NEW LONG |
| Modello | 117T+ 506TH |
| Year | 1980 |
| Width (mm) | 1200 |
| Feed: | Reel fed |
| Handel unit | Flat |
| Bag length max (mm) | 530 |
| Bag length min (mm) | 260 |
| Bag width max (mm) | 320 |
| Bag width min (mm) | 220 |
| Bottom width max (mm) | 160 |
| Bottom width (mm) | 120 |
| Cycle / min | 70 bags per min (or 4,200 per hour) |
| Note | Cut length/Pull : 450 – 640 mm Handle : Flat Handle 10 mm width Patch paper: 160 x 50 mm (width x height) Gears available: 500mm – 51teeth, 540mm-55teeth, 570mm-58teeth, Former plates available: 320mm, 260mm |
