- Machine code
- LA448
- Manufacturer
- GENERAL CONVERTING MACHINES
- Modello
- Olympia 1300
- Year
- 2019
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1300
- Materials
- PE, PP, PET, OPA, ALU FOIL, PAPER,PLA
- Speed
- 450m/min
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 800
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000
- Coating unit
- 4 rolls type

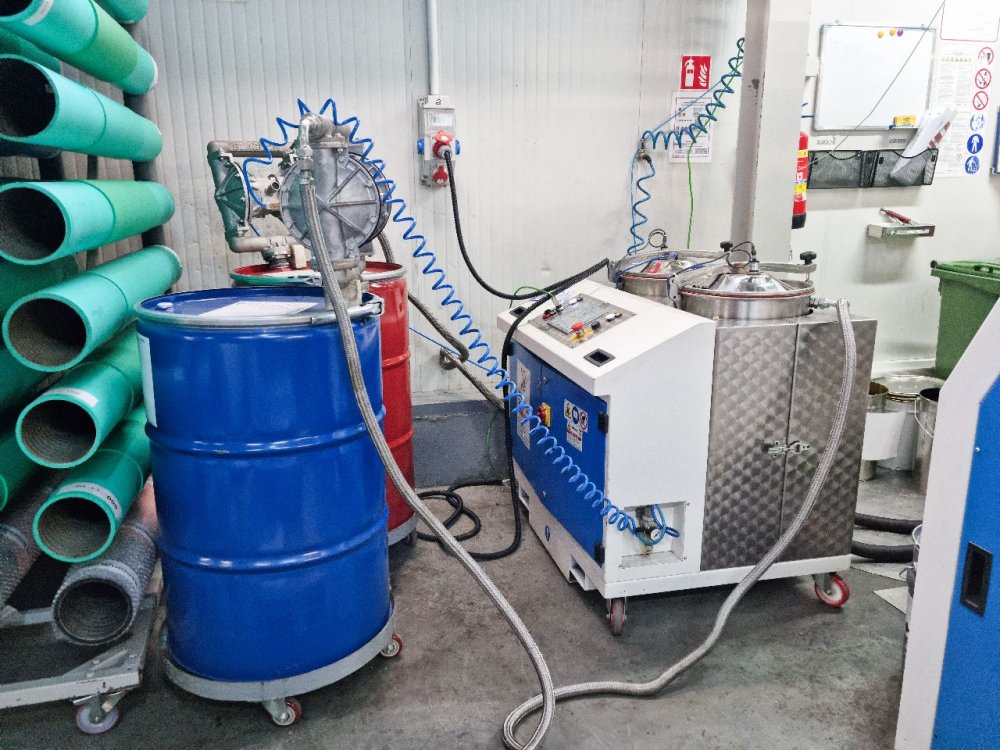

- pumping mixing unit
- 2 component solvetness mixer, 2019
- Note
- automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work
| Machine code | LA448 |
| Manufacturer | GENERAL CONVERTING MACHINES |
| Modello | Olympia 1300 |
| Year | 2019 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1300 |
| Materials | PE, PP, PET, OPA, ALU FOIL, PAPER,PLA |
| Speed | 450m/min |
| First unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 800 |
| Secondary unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 800 |
| Rewinder type | Shaftless AC motor driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | 4 rolls type |
| pumping mixing unit | 2 component solvetness mixer, 2019 |
| Note | automatic glue deposition setting system Computer supervision : yes Independent motorisation for metering rollers, sleeve, coating and laminating nip. All systems are integrated on board : main cabinet. thermo-regulations, air conditioning. Sleeve system : quick change of work |
