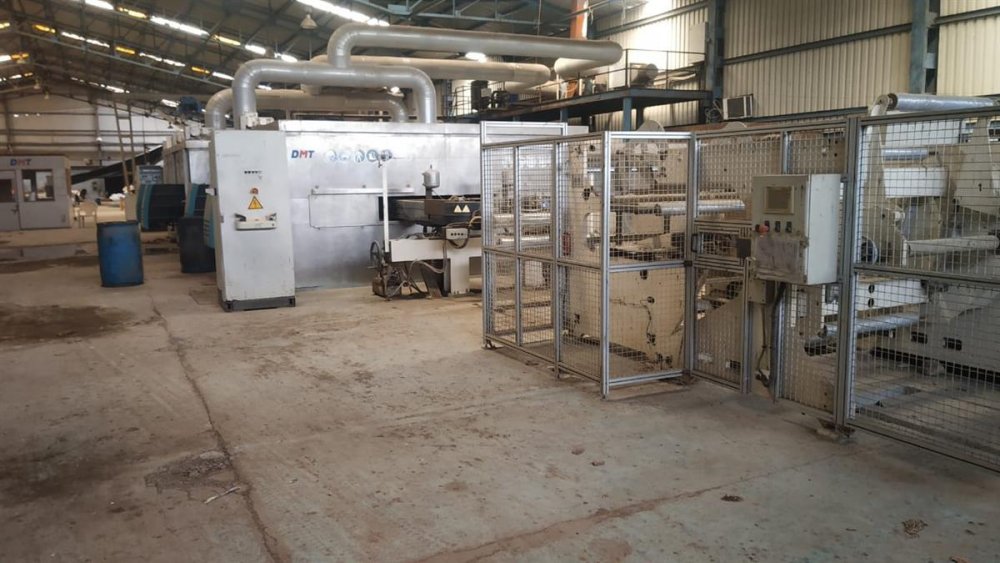

- Machine code
- BO68
- Manufacturer
- DMT
- Modello

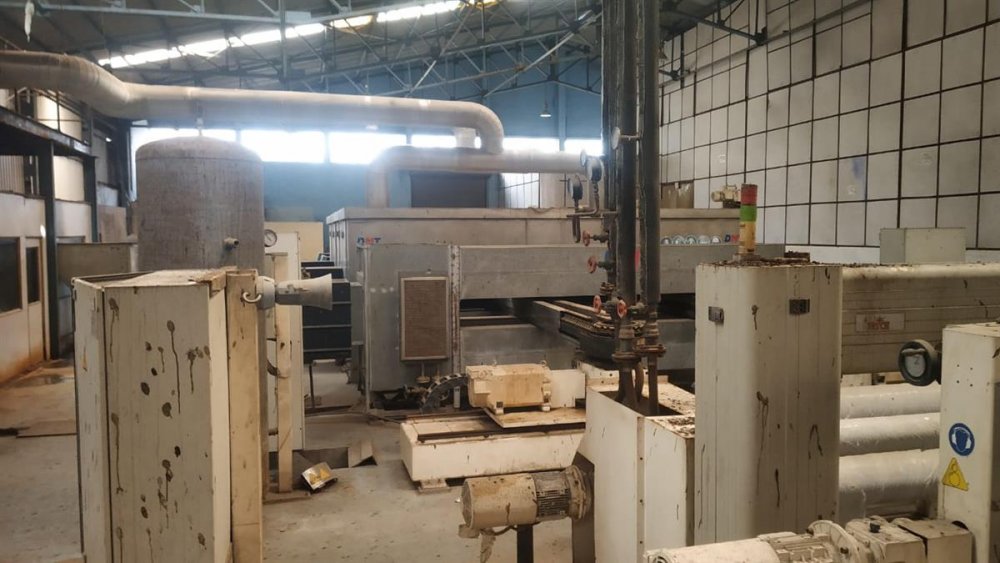

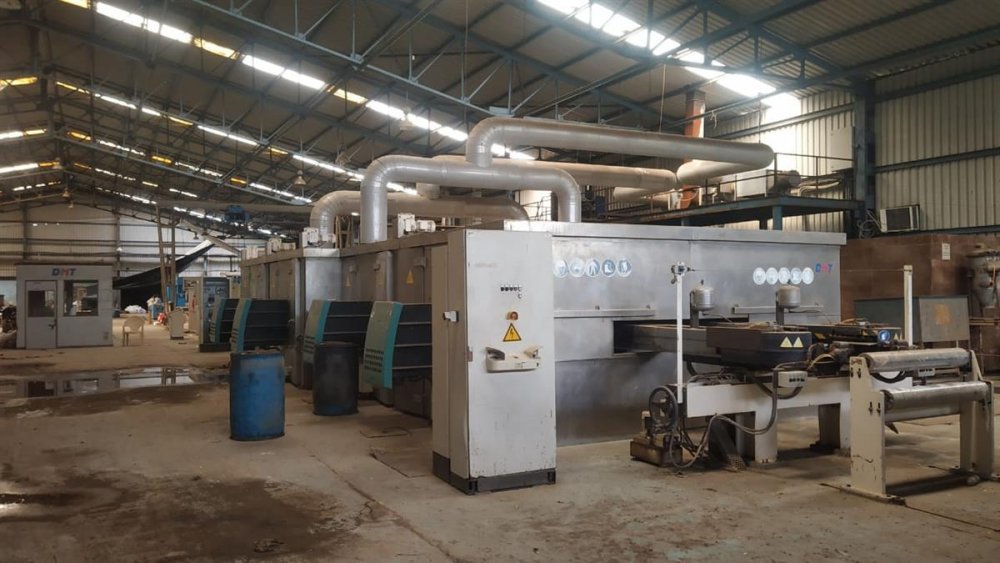

- TDO unit for PVC shrink labels
- Year
- 2004
- Material
- PVC for shrink labels
- Width (mm)
- 2500

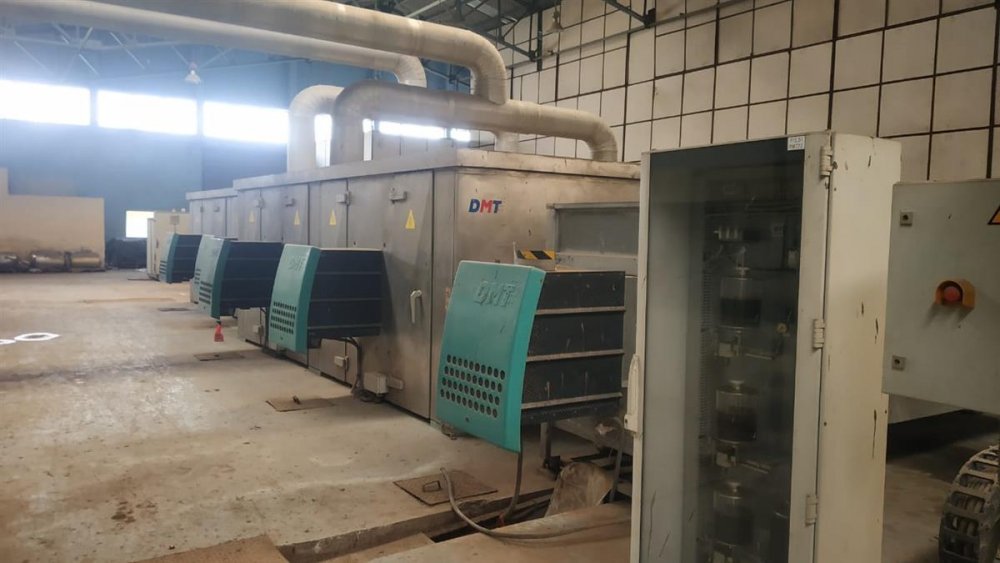

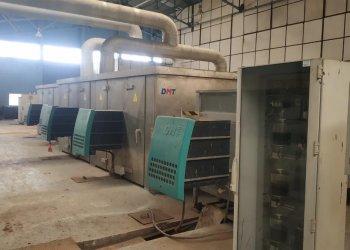

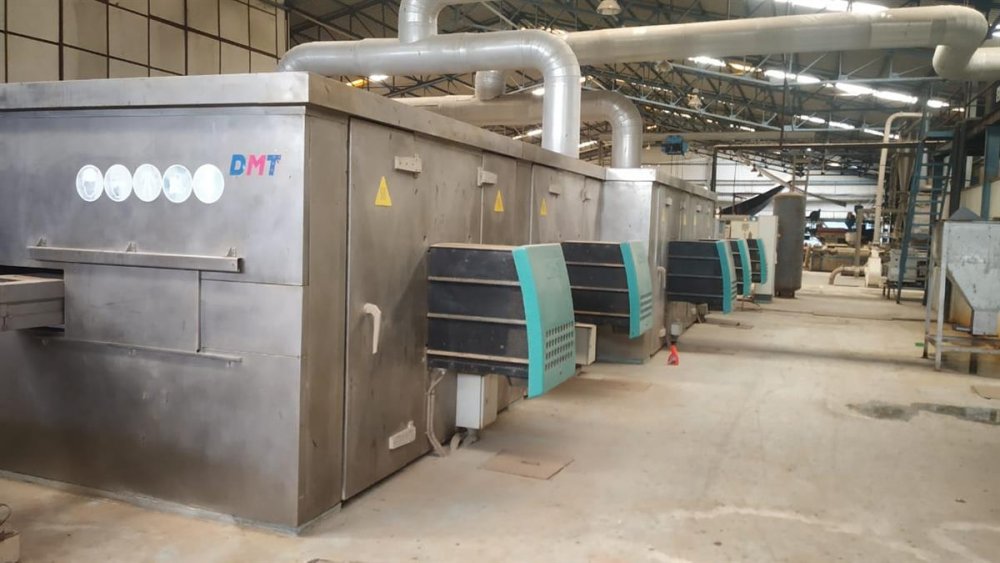

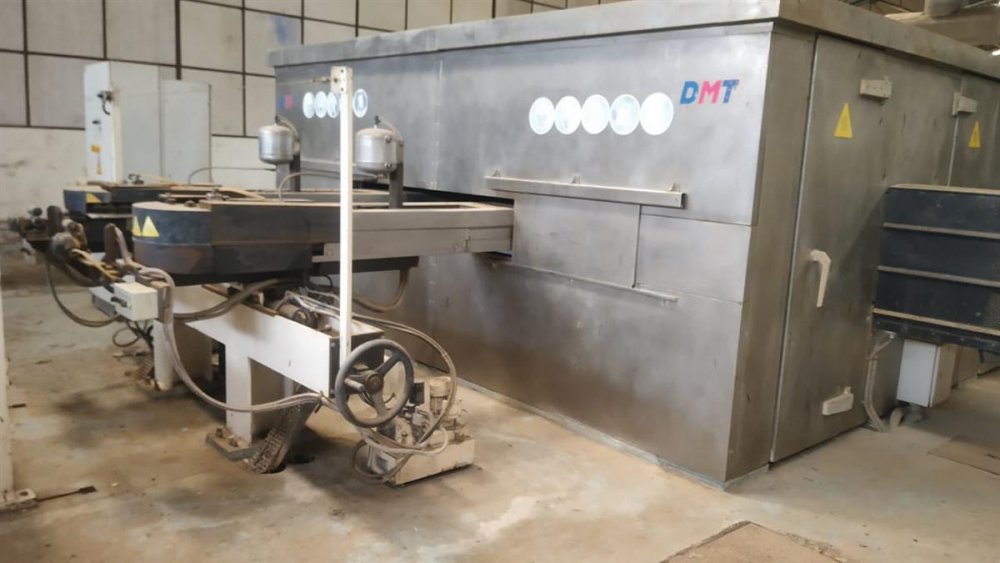

- TDO description
- Inlet with 450-1000 mm, outlet after stretching 1600 - 2800 mm width; final width after trimming 2500 mm; stretching ratio 1:2 - 1:5; chain type heavy duty lubrificated 60 mm pitch; clips 120 mm pitch; feed zone 1,5 m, pre-heating 2 x3 m, stretching 2 x 3 m, neutral 1 x1 m, cooling/annhealing 6 x 2 m outlet 1 x 1.5 m. 5 independent fans, number of centract joins 5, temperature 60/200 C

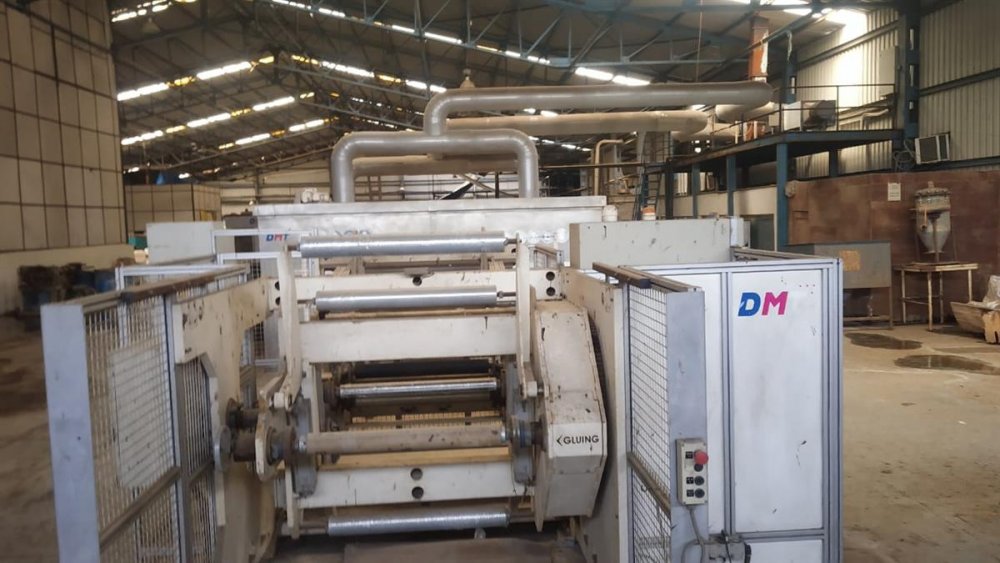

- Pull roll unit
- Yes with trimming
- Rewinder width
- 2500 mm
- Rewinder description
- Turret automatic rewinder
- Note
- Composed of: unwinder TDO unit Turret automatic unwinder
| Machine code | BO68 |
| Manufacturer | DMT |
| Modello | TDO unit for PVC shrink labels |
| Year | 2004 |
| Material | PVC for shrink labels |
| Width (mm) | 2500 |
| TDO description | Inlet with 450-1000 mm, outlet after stretching 1600 - 2800 mm width; final width after trimming 2500 mm; stretching ratio 1:2 - 1:5; chain type heavy duty lubrificated 60 mm pitch; clips 120 mm pitch; feed zone 1,5 m, pre-heating 2 x3 m, stretching 2 x 3 m, neutral 1 x1 m, cooling/annhealing 6 x 2 m outlet 1 x 1.5 m. 5 independent fans, number of centract joins 5, temperature 60/200 C |
| Pull roll unit | Yes with trimming |
| Rewinder width | 2500 mm |
| Rewinder description | Turret automatic rewinder |
| Note | Composed of: unwinder TDO unit Turret automatic unwinder |
