- Machine code
- CA060
- Manufacturer
- TECHNO COATING ENGINEERING
- Year
- 1997
- Number of layers
- 3
- Film structure
- A-B-C with posibilities AB/BA/ABA/ABC/AAA
- Material
- CPP and stretch film
- Film width (mm)
- 1500
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 65mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 130mm
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 65mm
- Head description
- Farcon
- Die width (mm)
- 2000

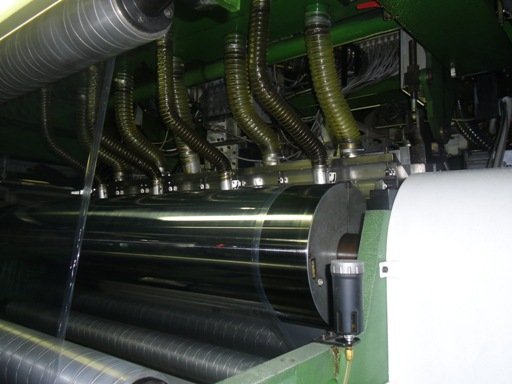

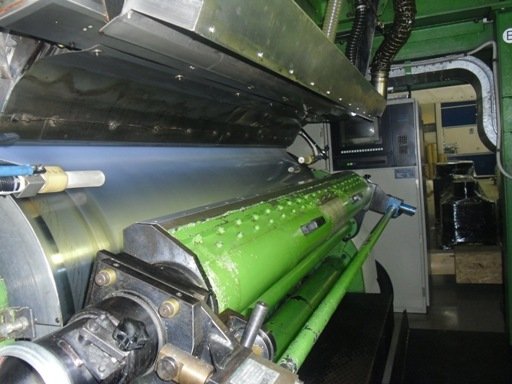

- Chill roll unit
- Chill roll and rolls width 2100 mm;Diam. chill roll 700 mm; Die head width 2050 mm, usefull 2000 mm.

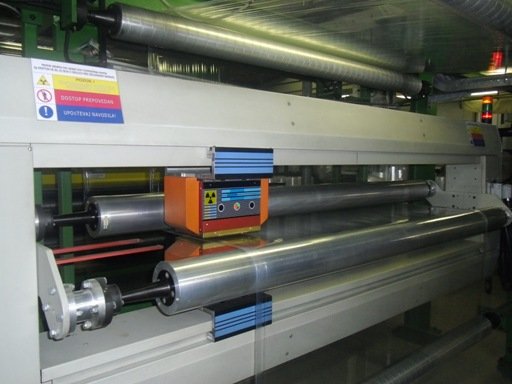

- Thickness controll system
- Control thickness system - Electronic system
- Corona treatment
- yes. Mero
- Web guide
- Web guide E+L
- Note
- Temperature and pression control Dynisco; Power load 400-500 kw ;
| Machine code | CA060 |
| Manufacturer | TECHNO COATING ENGINEERING |
| Year | 1997 |
| Number of layers | 3 |
| Film structure | A-B-C with posibilities AB/BA/ABA/ABC/AAA |
| Material | CPP and stretch film |
| Film width (mm) | 1500 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 65mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 130mm |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 65mm |
| Head description | Farcon |
| Die width (mm) | 2000 |
| Chill roll unit | Chill roll and rolls width 2100 mm;Diam. chill roll 700 mm; Die head width 2050 mm, usefull 2000 mm. |
| Thickness controll system | Control thickness system - Electronic system |
| Corona treatment | yes. Mero |
| Web guide | Web guide E+L |
| Note | Temperature and pression control Dynisco; Power load 400-500 kw ; |
