- Machine code
- FL0997
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- OLYMPIA
- Year
- 1991
- Number of colors
- 4
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- No

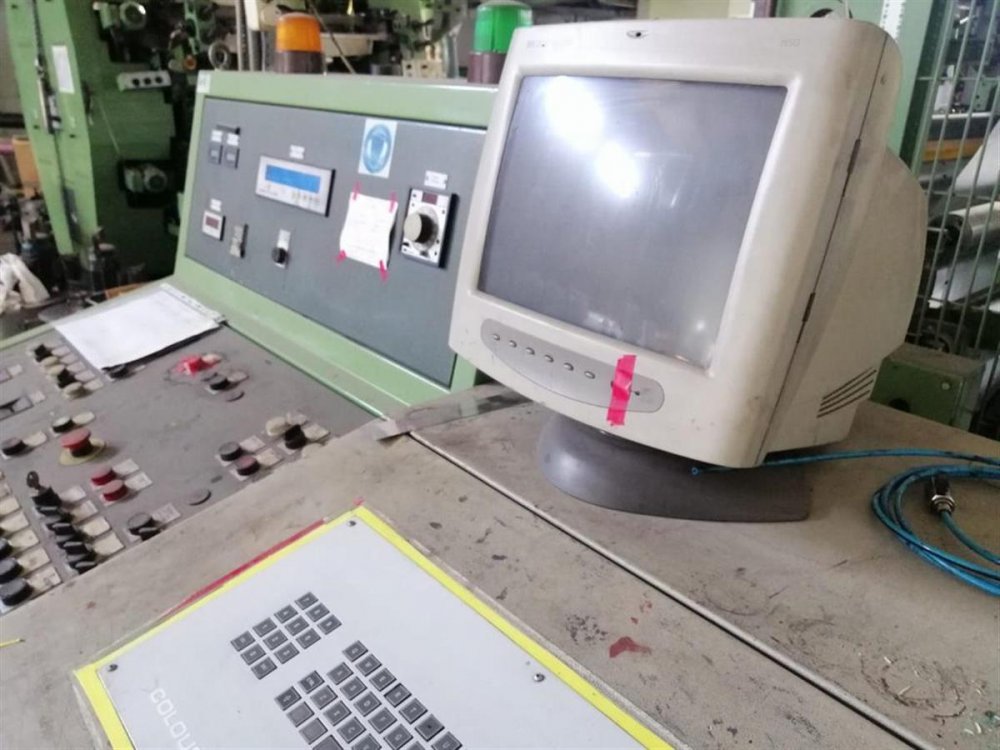

- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 640
- Unwinder type
- SINGLE,
- Max reel diameter unwinder (mm)
- 760
- Rewinder type
- SINGLE,
- Max reel diameter rewinder (mm)
- 760
- Drying
- ELECTRIC
- Videocamera
- YES - CS5
- Corona treatment
- YES
- Inking system
- 4 ELECTRIC PUMPS
- Anilox
- 4-370, 2-80, 2-120
- Print Sleeves
- 4-400, 4-390, 4-500, 4-450, 4-480, 4-560, 4-600, 4-620, 4-420
- Print cylinders
- 1-300, 4-360, 4-400, 4-450
- Note
- MATERIALS: PAPER / FILM 2 TROLLEYS OF 76MM
| Machine code | FL0997 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | OLYMPIA |
| Year | 1991 |
| Number of colors | 4 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | No |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 640 |
| Unwinder type | SINGLE, |
| Max reel diameter unwinder (mm) | 760 |
| Rewinder type | SINGLE, |
| Max reel diameter rewinder (mm) | 760 |
| Drying | ELECTRIC |
| Videocamera | YES - CS5 |
| Corona treatment | YES |
| Inking system | 4 ELECTRIC PUMPS |
| Anilox | 4-370, 2-80, 2-120 |
| Print Sleeves | 4-400, 4-390, 4-500, 4-450, 4-480, 4-560, 4-600, 4-620, 4-420 |
| Print cylinders | 1-300, 4-360, 4-400, 4-450 |
| Note | MATERIALS: PAPER / FILM 2 TROLLEYS OF 76MM |
