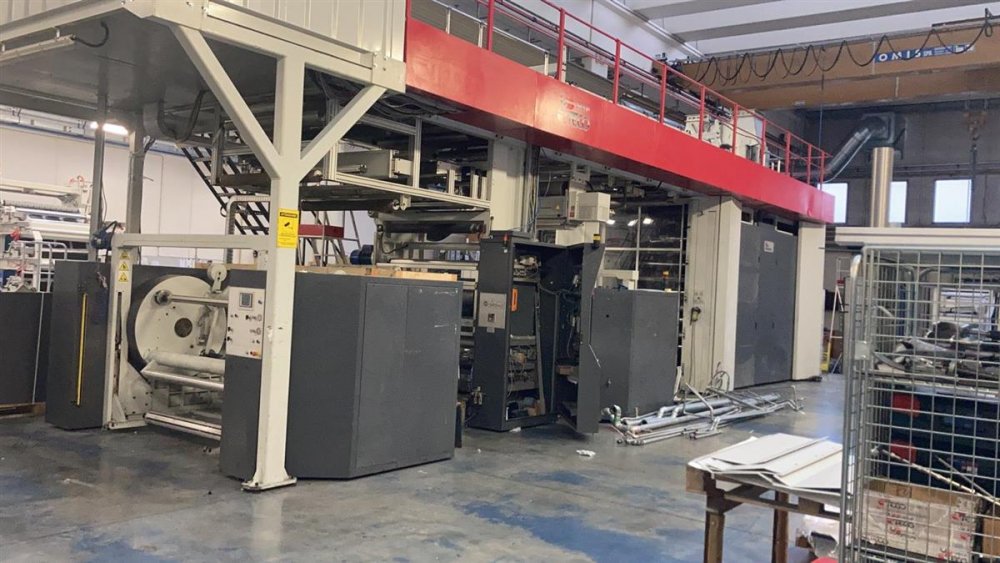

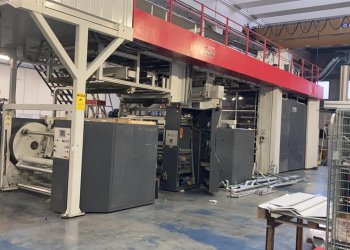

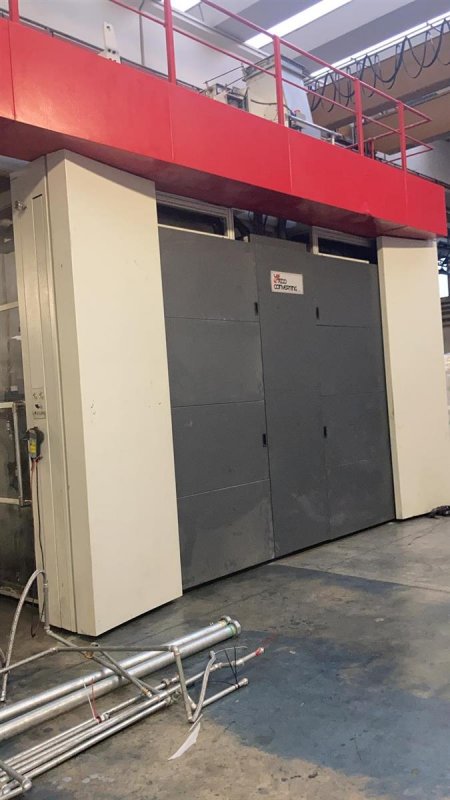

- Machine code
- FL926
- Manufacturer
- UTECO
- Modello
- ONYX 108
- Year
- 2013
- Number of colors
- 10
- Print possibilityes
- 10 +0
- Gearless
- Yes
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes

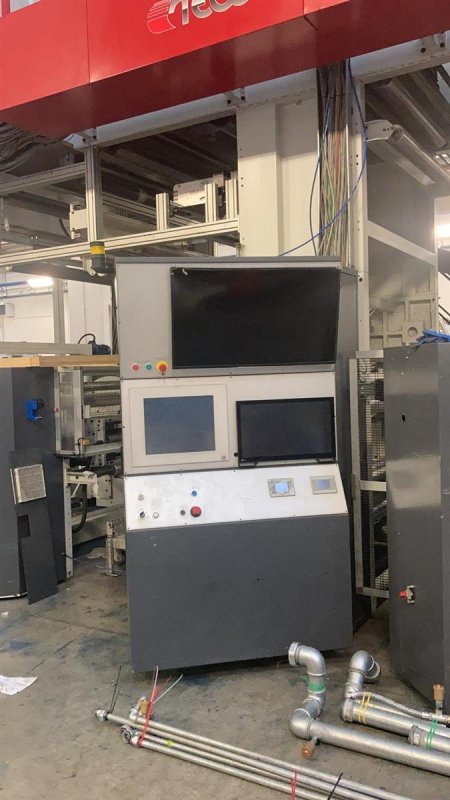

- Computer supervision
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 380
- Max print repeat (mm)
- 800

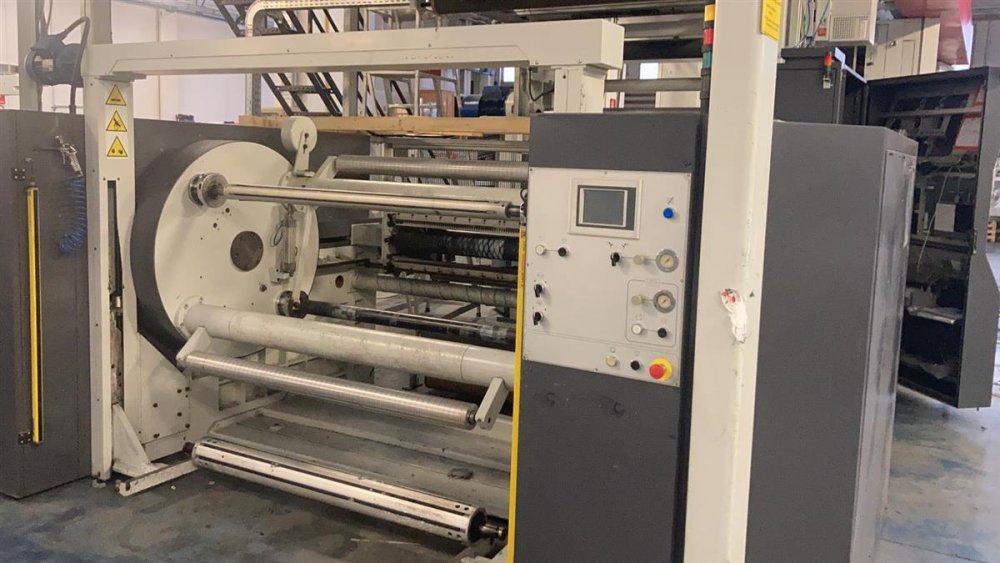

- Unwinder type
- Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
- Videocamera
- yes BST
- Corona treatment
- Option Ferrarini Benelli
- Web guides
- yes in and out

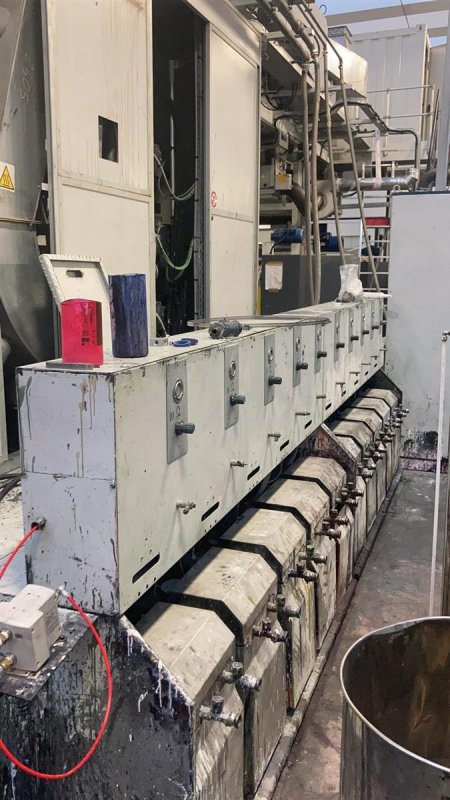

- Vyscosity control
- Yes included GAMA tipo G26-RIV-VIB c
- Washing system
- Yes included

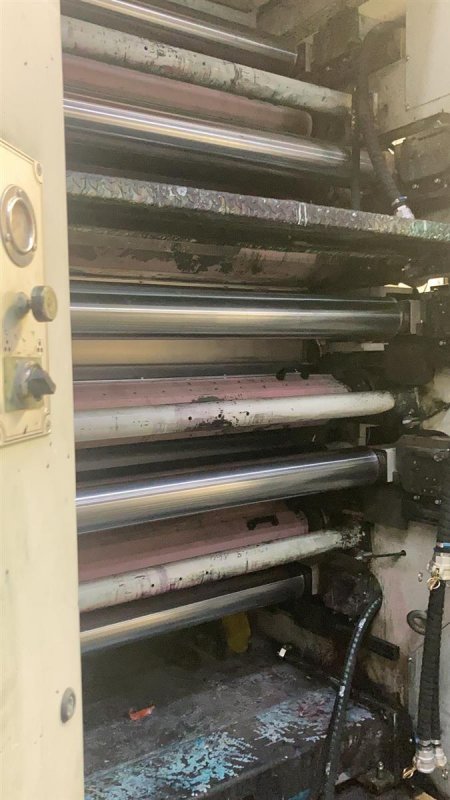

- Inking system
- Closed chamber doctor blades
- Anilox
- 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
- Print Sleeves
- total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
| Machine code | FL926 |
| Manufacturer | UTECO |
| Modello | ONYX 108 |
| Year | 2013 |
| Number of colors | 10 |
| Print possibilityes | 10 +0 |
| Gearless | Yes |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1450 |
| Print width (mm) | 1400 |
| Min print repeat (mm) | 380 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" - |
| Videocamera | yes BST |
| Corona treatment | Option Ferrarini Benelli |
| Web guides | yes in and out |
| Vyscosity control | Yes included GAMA tipo G26-RIV-VIB c |
| Washing system | Yes included |
| Inking system | Closed chamber doctor blades |
| Anilox | 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm |
| Print Sleeves | total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620 |
