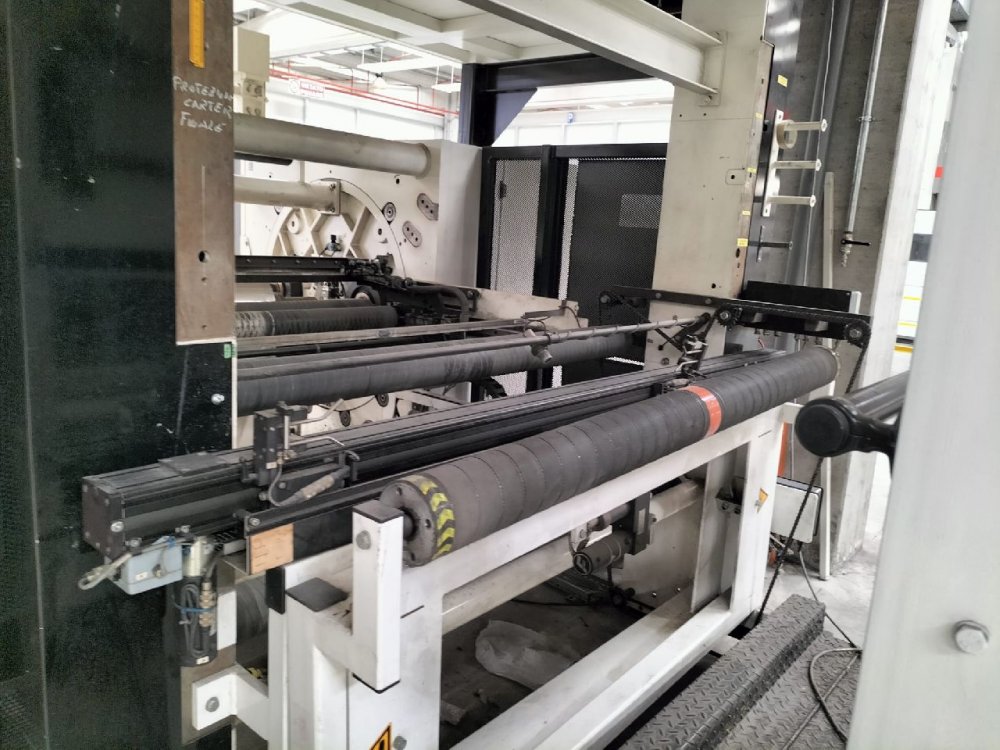

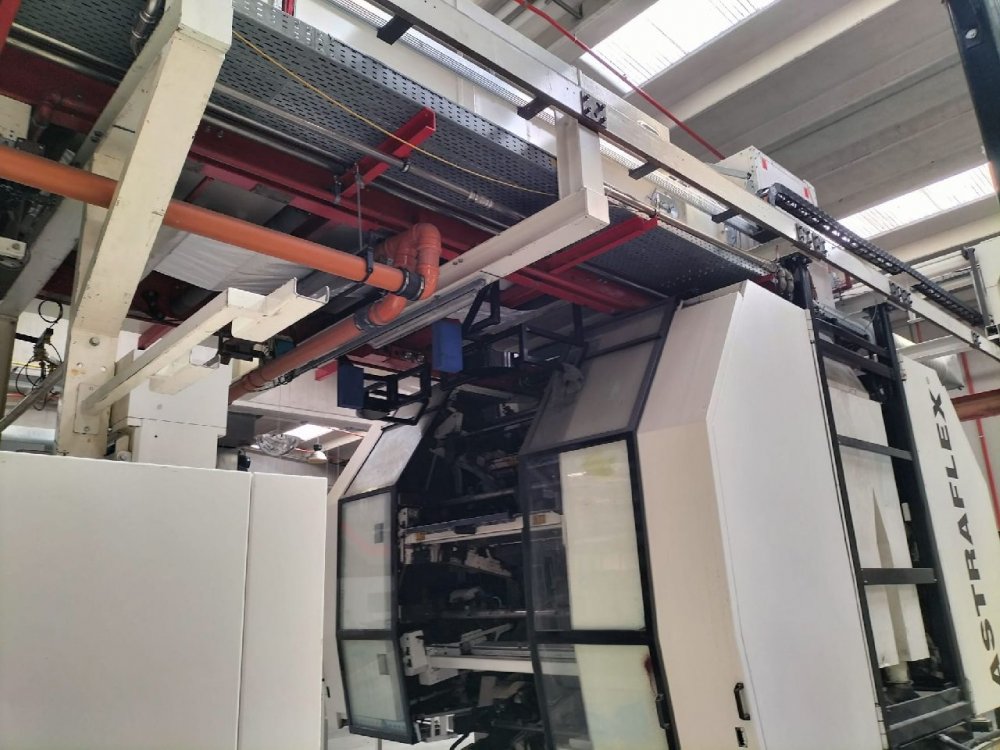

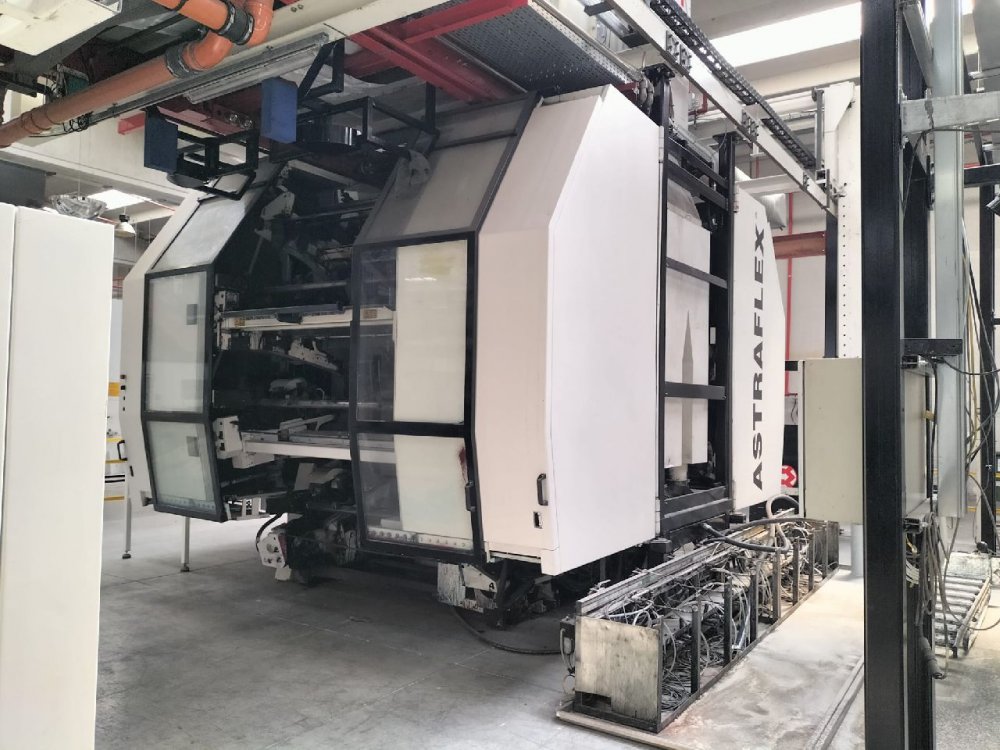

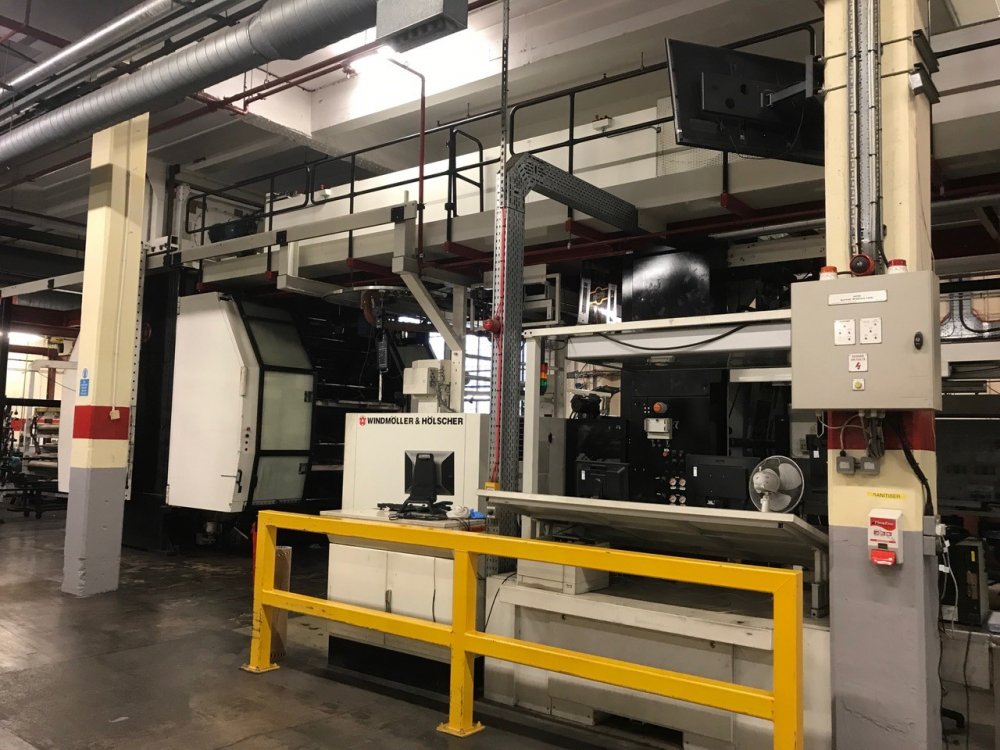

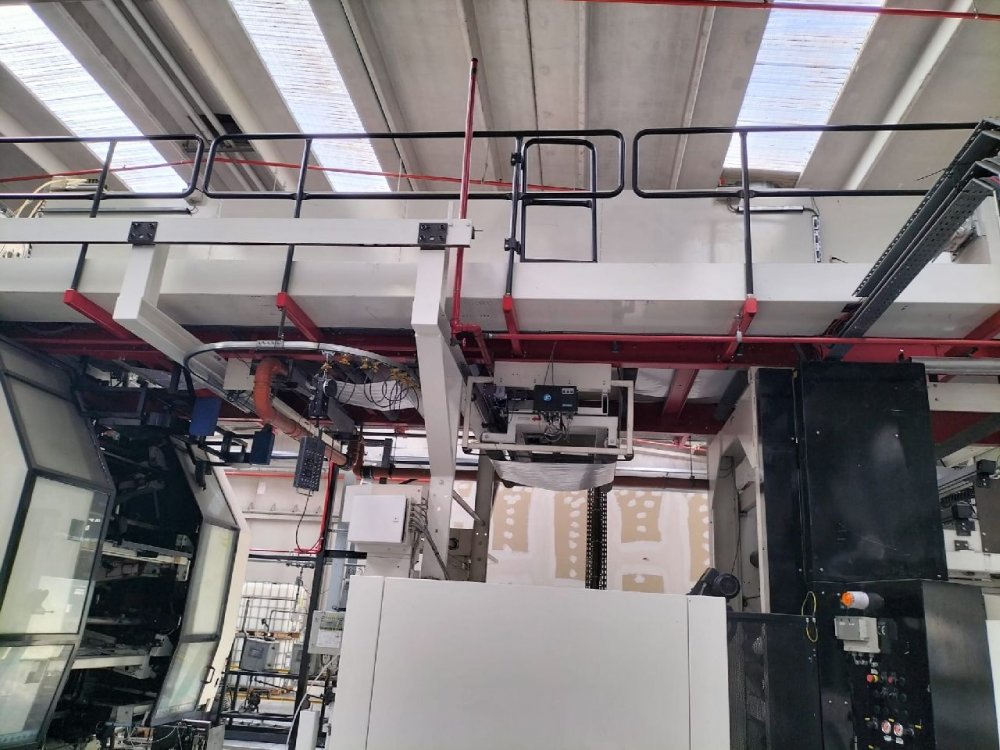

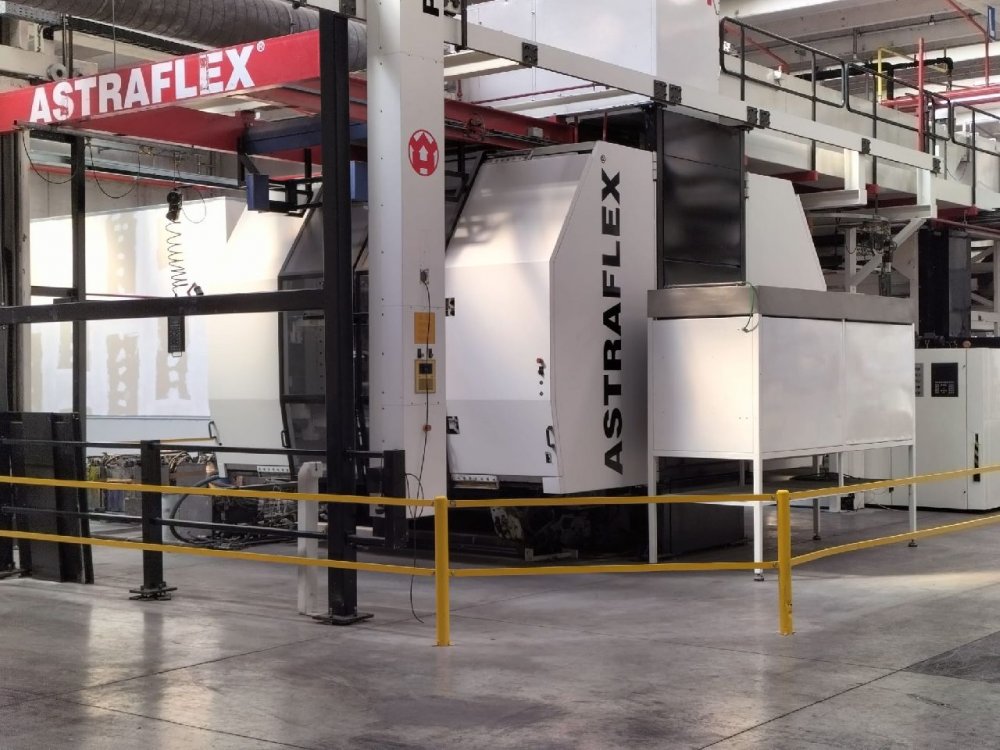

- Machine code
- FL0737
- Manufacturer
- WINDMÖLLER & HÖLSCHER
- Modello
- ASTRAFLEX
- Year
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1650
- Print width (mm)
- 1600
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1000
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas drying, inter colour dryers and overhead dryer
- Videocamera
- Eltromat
- Web guides
- BST Web Stroboscope
- Inking system
- closed chamber doctor blades
- Note
- Trolleys for porta lift system, for change over sleeeve change for print cylinders on the trolley
| Machine code | FL0737 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | ASTRAFLEX |
| Year | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1650 |
| Print width (mm) | 1600 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1000 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas drying, inter colour dryers and overhead dryer |
| Videocamera | Eltromat |
| Web guides | BST Web Stroboscope |
| Inking system | closed chamber doctor blades |
| Note | Trolleys for porta lift system, for change over sleeeve change for print cylinders on the trolley |
