- Codice Macchina
- PO75
- Manufacturer
- TOTANI
- Modello
- BH-60DLLS
- Year
- 2008
- Type of sealing/bags
- 3 side weld
- Lunghezza sacchetti
- 500 mm
- Larghezza sacchetti
- 200 - 600 mm
- Svolgitore
- max. 800 mm
- Ulteriori informazioni

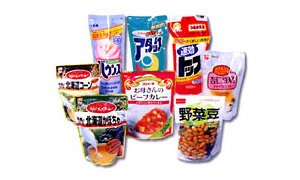

- Stand-up pouch , Doypack named , machine. TECHNICAL DATA: Bag length 500 mm max. (The max. length of 500 mm is limited by the length of the longitudinal cooling plate ) Bag width 200 - 600 mm MaX. cyclus per minute 240 Max speed 750 meter/hour => 12,5 meter/minute According to the user of the machine : It allows to produce the pouches in the range of 3500 pcs/hr (two ways – smaller pouches or 7000 pcs/hr in one way approach What kind of pouches can be made : Horizontal and vertical pouches with gusset on any angle with straight gusset. Cycles and film speed are calculated separately and are not related.
Codice Macchina | PO75 |
Manufacturer | TOTANI |
Modello | BH-60DLLS |
Year | 2008 |
Type of sealing/bags | 3 side weld |
Lunghezza sacchetti | 500 mm |
Larghezza sacchetti | 200 - 600 mm |
Svolgitore | max. 800 mm |
Ulteriori informazioni | Stand-up pouch , Doypack named , machine. TECHNICAL DATA: Bag length 500 mm max. (The max. length of 500 mm is limited by the length of the longitudinal cooling plate ) Bag width 200 - 600 mm MaX. cyclus per minute 240 Max speed 750 meter/hour => 12,5 meter/minute According to the user of the machine : It allows to produce the pouches in the range of 3500 pcs/hr (two ways – smaller pouches or 7000 pcs/hr in one way approach What kind of pouches can be made : Horizontal and vertical pouches with gusset on any angle with straight gusset. Cycles and film speed are calculated separately and are not related. |
