- Codice Macchina
- PO38
- Manufacturer
- WATERLINE
- Modello
- RITEBAG 1200-S-LP
- Year
- 2006
- Type of sealing/bags
- 3 side weld
- Lunghezza sacchetti
- 150mm min 1200mm max
- Larghezza sacchetti
- 80mm min unlimited
- Svolgitore

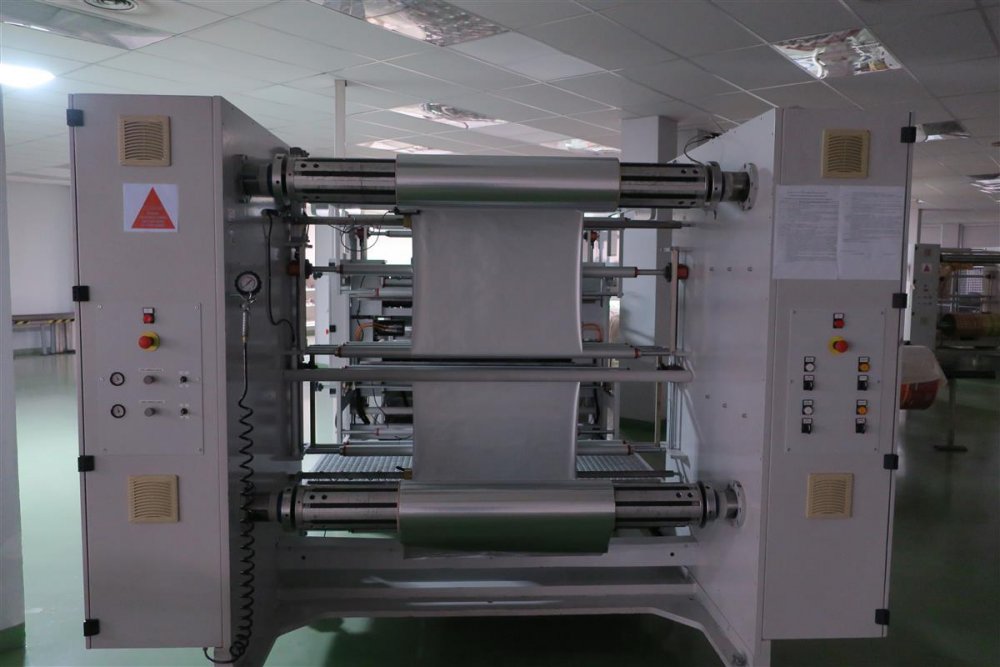

- Double W=1220mm x diameter 800mm on 152mm ID cores
- Ulteriori informazioni
- 3 side seal pouches
- Ulteriori informazioni

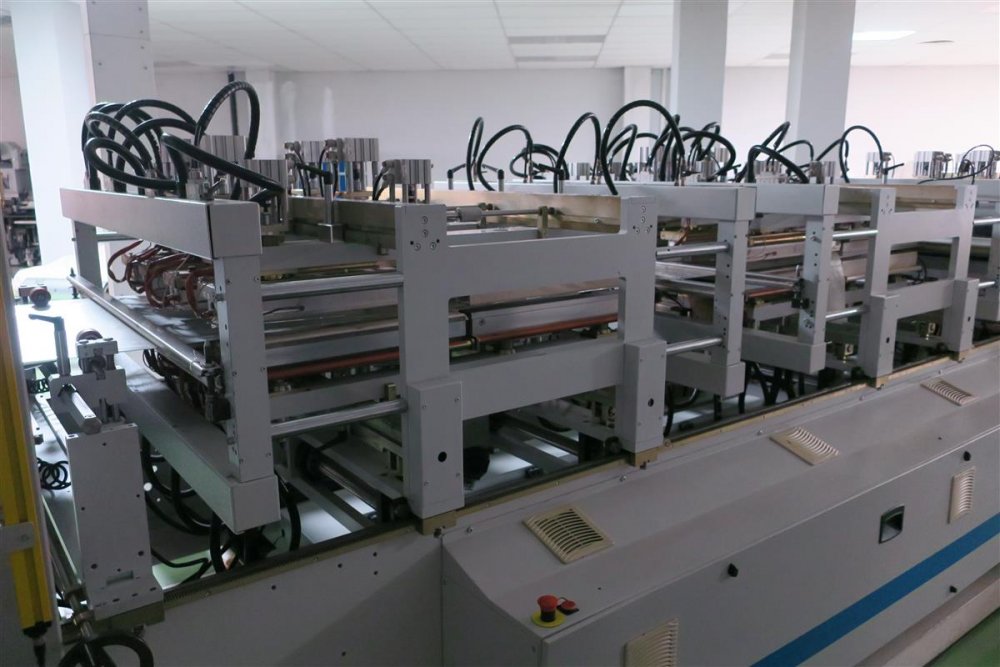

- Installed power 70Kw, 400V 50 Hz 14 m x 2 m x 2.3 m (L x W x H) 2 edge ultrasensor edge guides 2 longitudinal sealing stations, with 4 bars and 5 bars 600+ 600mm cooling 4 cross sealing bars 2 cross cooling bars 8 Euro holes, 9 Round corner, 9 tear notch punching units cross cutting station with servo-drive Guillotine mounted on ball rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel)
| Codice Macchina | PO38 |
| Manufacturer | WATERLINE |
| Modello | RITEBAG 1200-S-LP |
| Year | 2006 |
| Type of sealing/bags | 3 side weld |
| Lunghezza sacchetti | 150mm min 1200mm max |
| Larghezza sacchetti | 80mm min unlimited |
| Svolgitore | Double W=1220mm x diameter 800mm on 152mm ID cores |
| Ulteriori informazioni | 3 side seal pouches |
| Ulteriori informazioni | Installed power 70Kw, 400V 50 Hz 14 m x 2 m x 2.3 m (L x W x H) 2 edge ultrasensor edge guides 2 longitudinal sealing stations, with 4 bars and 5 bars 600+ 600mm cooling 4 cross sealing bars 2 cross cooling bars 8 Euro holes, 9 Round corner, 9 tear notch punching units cross cutting station with servo-drive Guillotine mounted on ball rails Nr. 1 Industrial-PC with VGA graphic monitor and touch screen 12" (800 x 600 pixel) |
