- Codice Macchina
- FI548
- Manufacturer
- HUDSON SHARP
- Modello
- 5750 W
- Year
- 2019
- Type of delivery
- Wicketer)
- Type of sealing/bags
- Side weld
- Tipo di sacchetti
- Wicketers
- Larghezza lavoro (mm)
- 1600
- Lunghezza sacchetti
- 150 – 710mm
- Larghezza sacchetti
- 110 – 390mm
- Cicli/min
- 450CPM
- Svolgitore

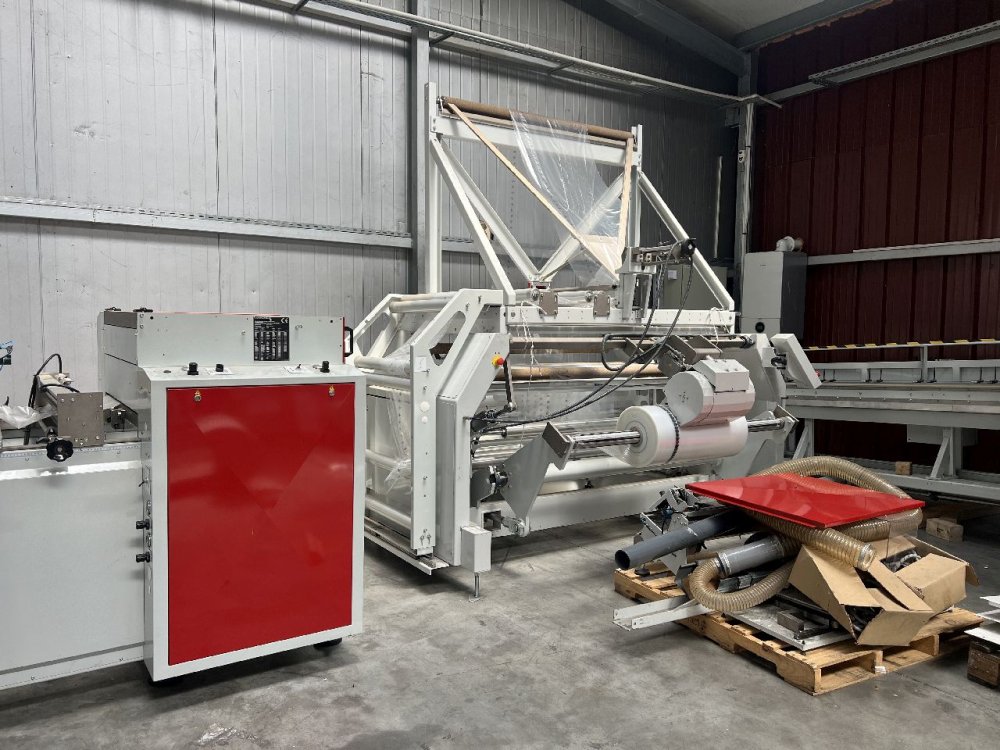

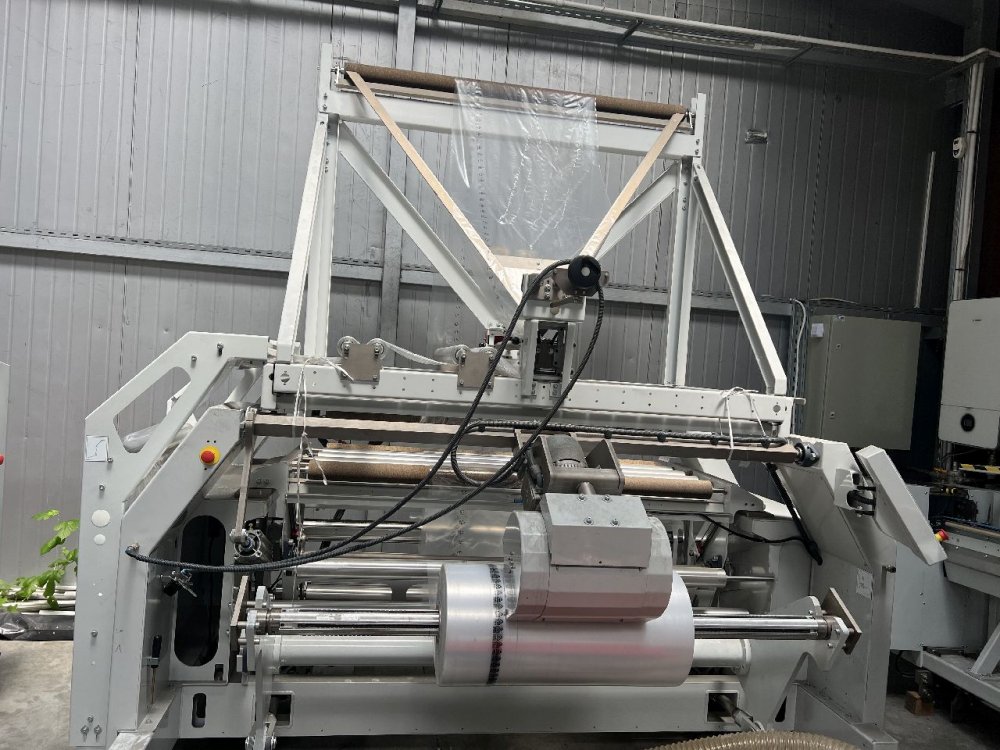

- Surface Driven Single Roll Reel Lift Unwind 1.600mm Max. weight: 645kg (at 1.000mm reel width) Compact Folding Triangle 1.600mm with motorized folding board positioning and automatic Positioning of Folding Triangle
- Ulteriori informazioni
- -The machine is practically new, has only 11 hours of production and operating -Edge Guiding System 1.600mm -Longitudinal Rotary Perforator On The Lip -Servo driven main drive motor reducer (AC Servo) -Easy threading infeed with 4m dancer capacity -Servo top & bottom driven air loaded draw rolls (AC servo) Side weld straight sealbar head, complete with seal roll, heat shielded, radius 0.020". For different materials or gauges an extra seal head might be required (not included in present scope of supply -Servo driven indexing seal roll -Servo driven seal head motion for constant seal time – speed independent with easy access of seal drive mechanism -Static eliminators on both sides of the film before draw rolls -Vacuum pick-off with 2 x 8 wicket arms – pressure blow-off -Two level Static Loader on lip and the gusset of the bag -Servo Driven Square Bottom Sealer -Conversion Kit For Square Bottom Sealer into a Round Bottom Sealer
| Codice Macchina | FI548 |
| Manufacturer | HUDSON SHARP |
| Modello | 5750 W |
| Year | 2019 |
| Type of delivery | Wicketer) |
| Type of sealing/bags | Side weld |
| Tipo di sacchetti | Wicketers |
| Larghezza lavoro (mm) | 1600 |
| Lunghezza sacchetti | 150 – 710mm |
| Larghezza sacchetti | 110 – 390mm |
| Cicli/min | 450CPM |
| Svolgitore | Surface Driven Single Roll Reel Lift Unwind 1.600mm Max. weight: 645kg (at 1.000mm reel width) Compact Folding Triangle 1.600mm with motorized folding board positioning and automatic Positioning of Folding Triangle |
| Ulteriori informazioni | -The machine is practically new, has only 11 hours of production and operating -Edge Guiding System 1.600mm -Longitudinal Rotary Perforator On The Lip -Servo driven main drive motor reducer (AC Servo) -Easy threading infeed with 4m dancer capacity -Servo top & bottom driven air loaded draw rolls (AC servo) Side weld straight sealbar head, complete with seal roll, heat shielded, radius 0.020". For different materials or gauges an extra seal head might be required (not included in present scope of supply -Servo driven indexing seal roll -Servo driven seal head motion for constant seal time – speed independent with easy access of seal drive mechanism -Static eliminators on both sides of the film before draw rolls -Vacuum pick-off with 2 x 8 wicket arms – pressure blow-off -Two level Static Loader on lip and the gusset of the bag -Servo Driven Square Bottom Sealer -Conversion Kit For Square Bottom Sealer into a Round Bottom Sealer |
