- Codice Macchina
- FI542
- Manufacturer
- MOBERT
- Modello
- VICTORY 110 DELTA 8
- Year
- 2013
- Type of delivery
- Conveyor table
- Type of sealing/bags
- Bottom weld
- Tipo di sacchetti
- Shoppers
- Larghezza lavoro (mm)
- 1100
- Numero di piste
- 3
- Lunghezza sacchetti
- Min 320 – Max 1100 mm
- Cicli/min
- 300 cycles/min
- Svolgitore

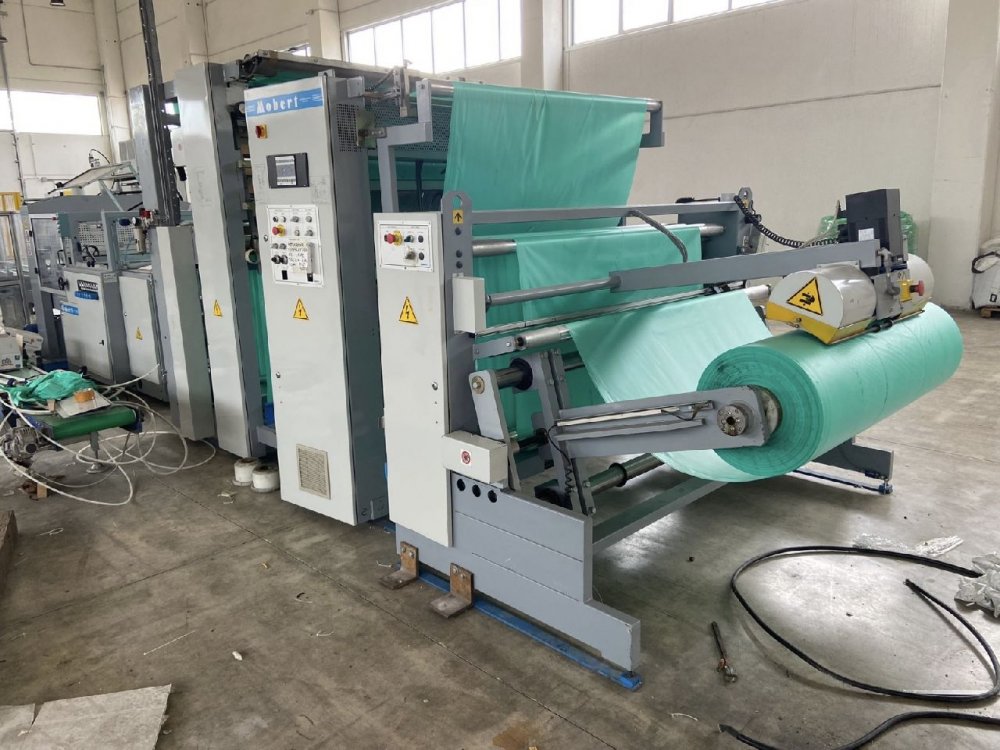

- Shaftless roll diam 1500 mm ac motor driven
- Ulteriori informazioni
- Open Mouth Bag length: Min 320 – Max 1100 mm T-shirt Bag length: Min 350 mm – Max 650 mm Automatic folding unit for pack of bags and die cutter Automatic electronic welding bar (1 welding - for open top bags; 2 weldings fot shoppers) Automatic punching unit Collection of bags on pins at 120mm from the cutting edge Self centring reel holder Max film speed 150m/min automatic control by photocell of handle position OPTIONAL: is possible to add some equipment like conveyor belt, boxing unit... Or make a full automatic line (boxing line + conveyor belt + robot ...) With automatic box packaging
| Codice Macchina | FI542 |
| Manufacturer | MOBERT |
| Modello | VICTORY 110 DELTA 8 |
| Year | 2013 |
| Type of delivery | Conveyor table |
| Type of sealing/bags | Bottom weld |
| Tipo di sacchetti | Shoppers |
| Larghezza lavoro (mm) | 1100 |
| Numero di piste | 3 |
| Lunghezza sacchetti | Min 320 – Max 1100 mm |
| Cicli/min | 300 cycles/min |
| Svolgitore | Shaftless roll diam 1500 mm ac motor driven |
| Ulteriori informazioni | Open Mouth Bag length: Min 320 – Max 1100 mm T-shirt Bag length: Min 350 mm – Max 650 mm Automatic folding unit for pack of bags and die cutter Automatic electronic welding bar (1 welding - for open top bags; 2 weldings fot shoppers) Automatic punching unit Collection of bags on pins at 120mm from the cutting edge Self centring reel holder Max film speed 150m/min automatic control by photocell of handle position OPTIONAL: is possible to add some equipment like conveyor belt, boxing unit... Or make a full automatic line (boxing line + conveyor belt + robot ...) With automatic box packaging |
