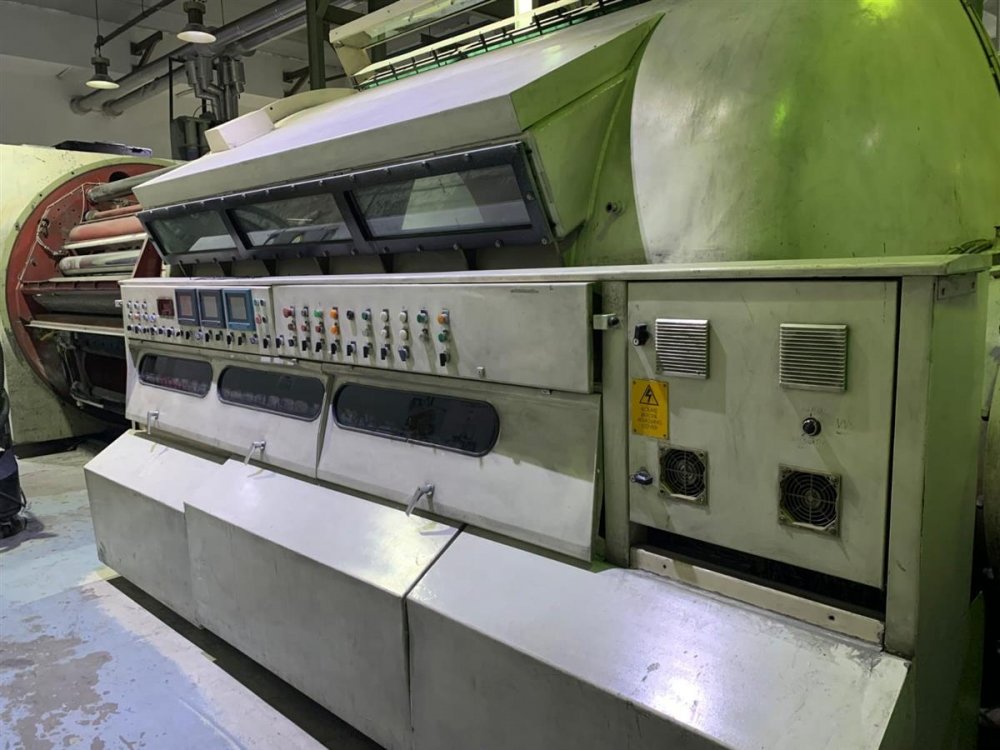

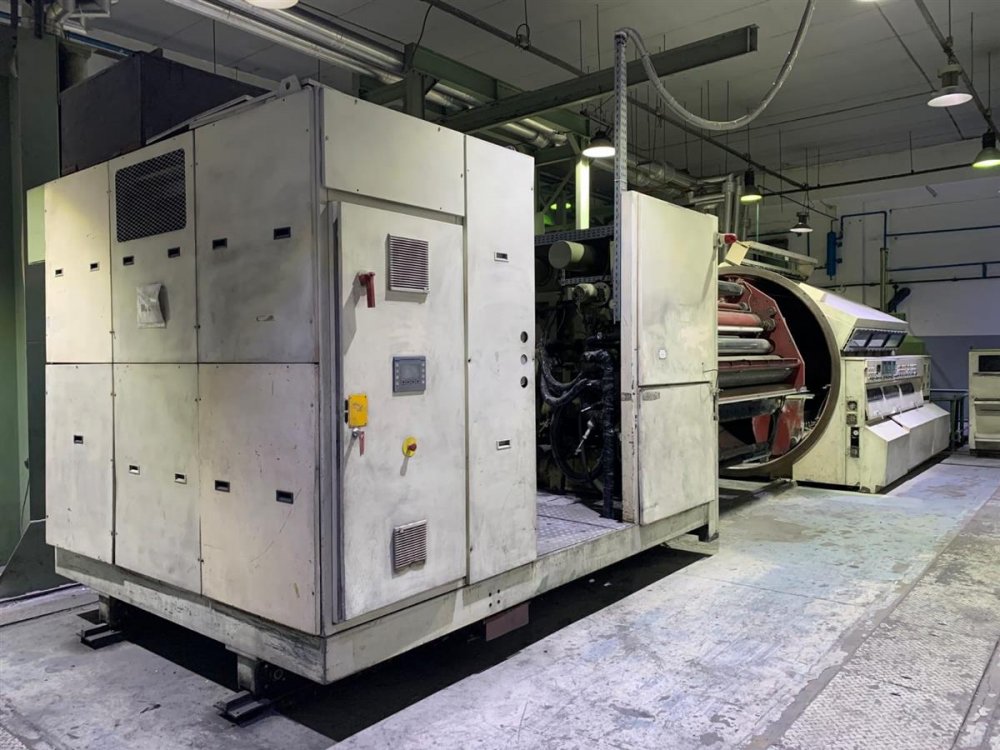

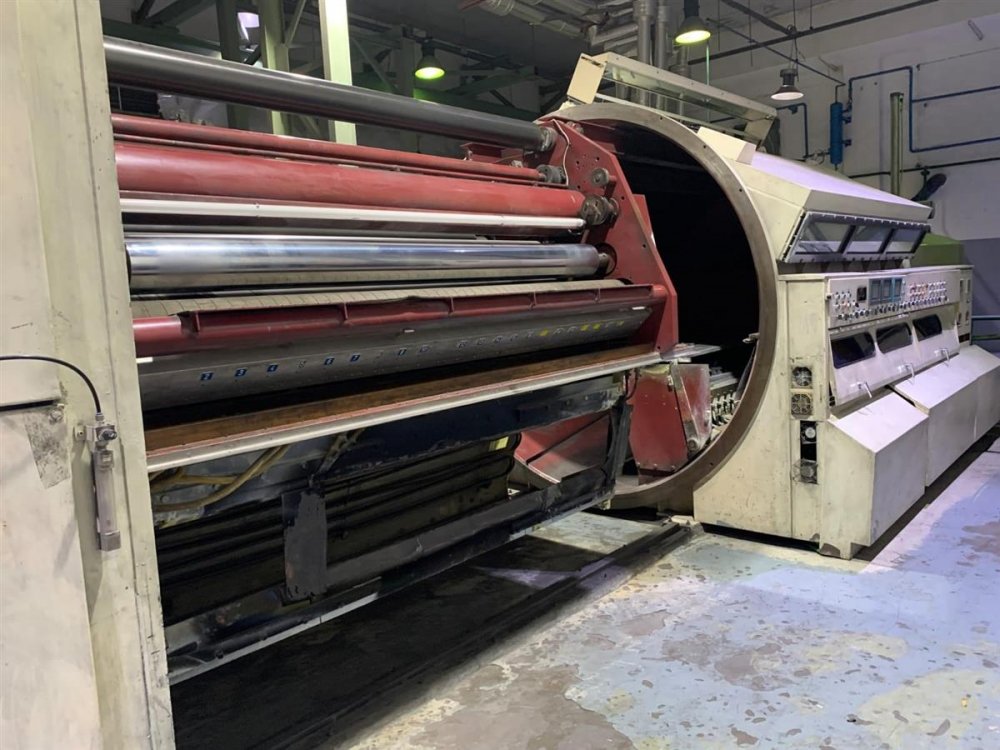

GENERAL VACUUM EQUIPMENT EHF 2250-2250 Metallizzatore

Codice Macchina
ME80
Manufacturer
GENERAL VACUUM EQUIPMENT
Modello
EHF 2250-2250
Year
1998
Larghezza lavoro (mm)
2250
Materiali
BOPP 15-80my ; PET 09-50my; CPP 20-40my; LDPE 25-50my ; Nylon 12-50my ; UPVC 20-80my
Velocità
72-720m/min line speed
Diametro massimo bobina svolgitore
1000mm
Diametro massimo bobina avvolgitore
1000mm
Navicelle di evaporazione
24pc . Evaporation boats size : 150*30*9mm

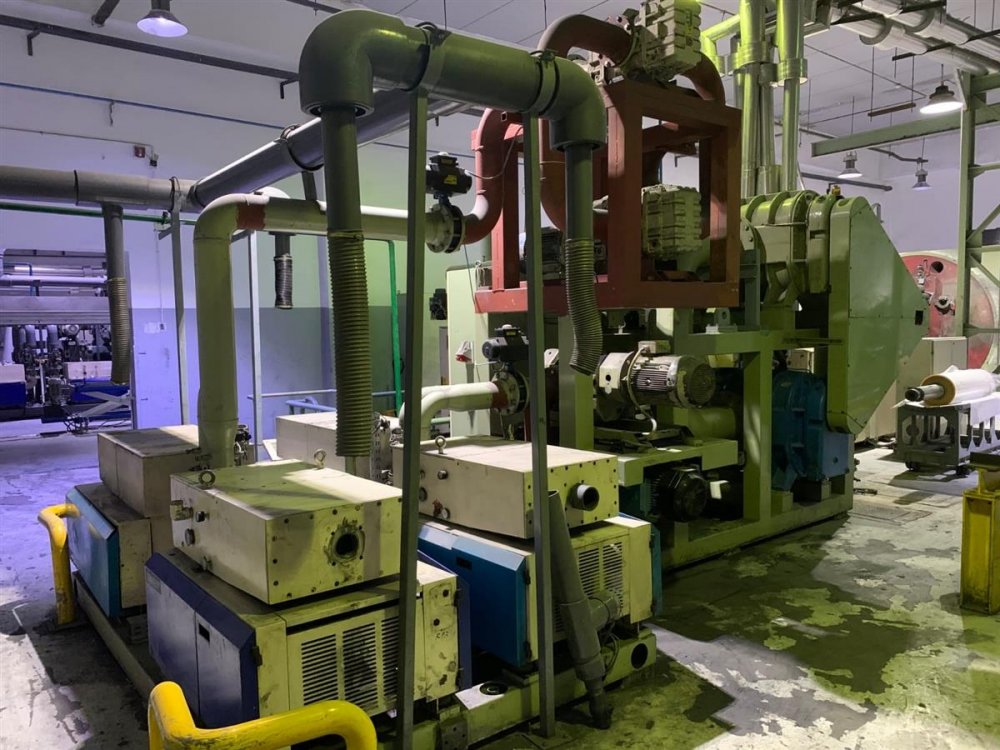

Sistema di pompaggio
Pumping configuration ( 50HZ/60HZ )
Polycold
yes , 2 PFC 1100 HC
Ulteriori informazioni
Max web width 2250mm / Min web width 1450mm Max roll diam 1250mm ( modification made to increase from 1000mm ) .Core internal diam 152mm Evaporation zone operating pressure 5x10-4 mbar ; Winding zone operating pressure : 2x 10-2 mbar Evaporation zone : - 2x 50,000 l/s NHS-35 Varian diffusion pump ; - 2 x 2000/2400 m3/h Aerzen (GLA 13.F7 HV ) booster pump ; - 2 x300/505 m3/h Kinney (505LP) rotary piston pump -2x 200,000 l/s Polycold PFC 1100 HC cryogenic pump (modification made to put both units in evaporation zone to increase efficiency ) Evaporation source type : resistance heated intermetalic (boats) Winding zone : - 2 x 12700/15200 m3/h Holmes Dresser booster pump -2x3000/3500 m3/h Holmes Dresser booster pump -2x 300/505 m3/h Kinney (505LP) rotary piston pump Winding Mechanism : Line speed : 72-720m/min Unwind tension : 320N Rewind tension : 320N (min tension 20-25N ) Alum wire : 1.6mm -2mm 98.2% purity ( variable gap instead of fixed gap ). Aluminum wire spool size 300-350mm Metalizing data : Max deposition rate : 1.8 ohms at 720m/min Deposition uniformity : depend upon material and running speed Thicnkess range of deposition : 100-200 angstrom Evaporator life : 15 hours average Spare parts available
Codice Macchina ME80
Manufacturer GENERAL VACUUM EQUIPMENT
Modello EHF 2250-2250
Year 1998
Larghezza lavoro (mm) 2250
Materiali BOPP 15-80my ; PET 09-50my; CPP 20-40my; LDPE 25-50my ; Nylon 12-50my ; UPVC 20-80my
Velocità 72-720m/min line speed
Diametro massimo bobina svolgitore 1000mm
Diametro massimo bobina avvolgitore 1000mm
Navicelle di evaporazione 24pc . Evaporation boats size : 150*30*9mm
Sistema di pompaggio Pumping configuration ( 50HZ/60HZ )
Polycold yes , 2 PFC 1100 HC
Ulteriori informazioni Max web width 2250mm / Min web width 1450mm Max roll diam 1250mm ( modification made to increase from 1000mm ) .Core internal diam 152mm Evaporation zone operating pressure 5x10-4 mbar ; Winding zone operating pressure : 2x 10-2 mbar Evaporation zone : - 2x 50,000 l/s NHS-35 Varian diffusion pump ; - 2 x 2000/2400 m3/h Aerzen (GLA 13.F7 HV ) booster pump ; - 2 x300/505 m3/h Kinney (505LP) rotary piston pump -2x 200,000 l/s Polycold PFC 1100 HC cryogenic pump (modification made to put both units in evaporation zone to increase efficiency ) Evaporation source type : resistance heated intermetalic (boats) Winding zone : - 2 x 12700/15200 m3/h Holmes Dresser booster pump -2x3000/3500 m3/h Holmes Dresser booster pump -2x 300/505 m3/h Kinney (505LP) rotary piston pump Winding Mechanism : Line speed : 72-720m/min Unwind tension : 320N Rewind tension : 320N (min tension 20-25N ) Alum wire : 1.6mm -2mm 98.2% purity ( variable gap instead of fixed gap ). Aluminum wire spool size 300-350mm Metalizing data : Max deposition rate : 1.8 ohms at 720m/min Deposition uniformity : depend upon material and running speed Thicnkess range of deposition : 100-200 angstrom Evaporator life : 15 hours average Spare parts available
