3 strati MACCHI Estrusore in bolla

Codice Macchina
EX413
Manufacturer
MACCHI
Year
2010
Numero di strati
3
Struttura film
ABC
Materiali
LDPE, LLDPE,HDPE,MDPE,EVA, PP, mLLDPE
Larghezza film
2300
Output (Kg/h)
600 kg/h

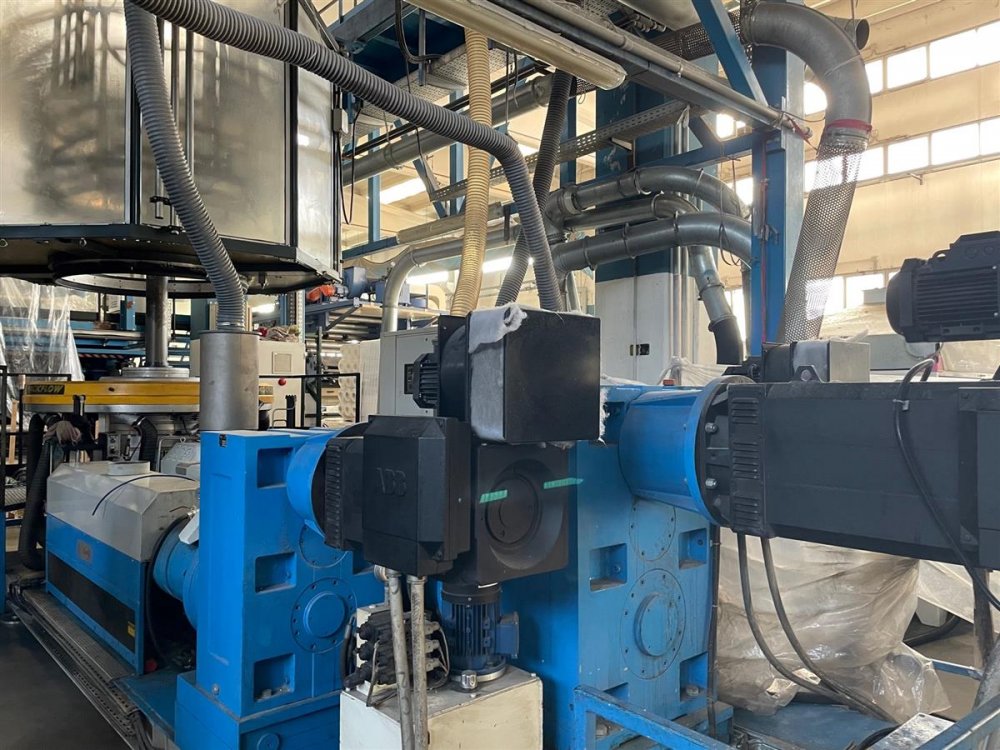

Rif strati estrusore 1:
PLASTEX
Screw diam 1
80/30 D
Description 1
Motor in AC KW 120, hydraulic screenchanger 80 mm, Gravimetric dosing unit 4comp
Rif strati estrusore 2:
PLASTEX
Screw diam 2
100/30D
Description 2
Motor in AC KW 180, hydraulic screenchanger 100 mm. Gravimetric dosing unit 5 comp
Rif strati estrusore 3:
PLASTEX
Screw diam 3
80/30 D
Description 3
Motor in AC KW 120, hydraulic screenchanger 80 mm. Gravimetric dosing unit 4 comp.

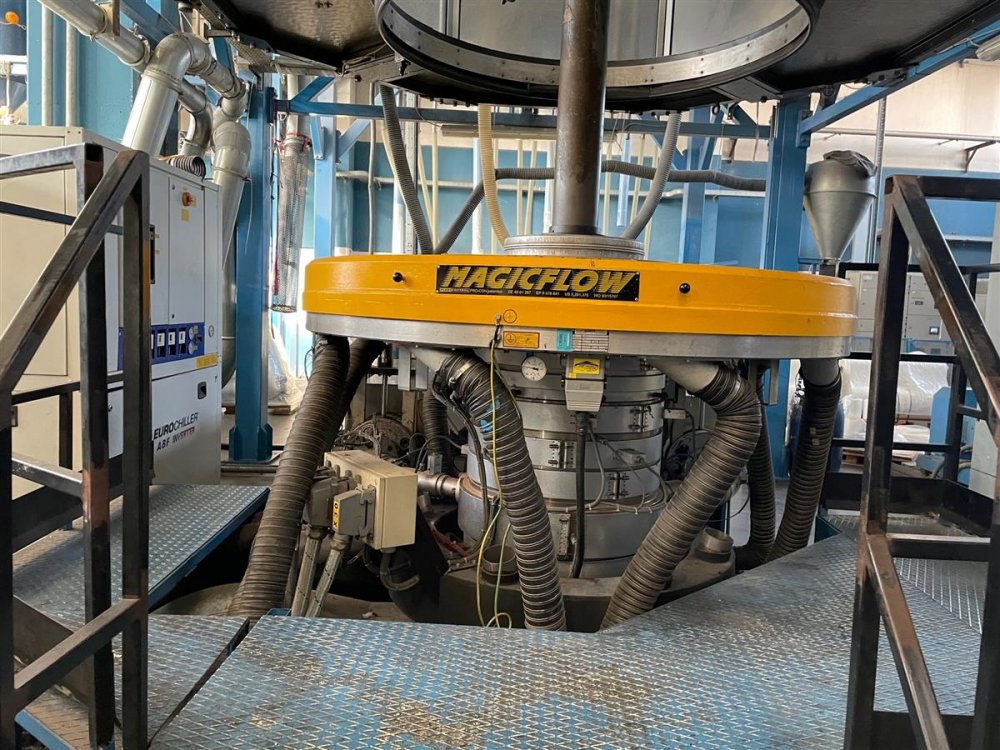

Descrizione testa
IBC, carbon fiber cooling ring type CR-MAX3
Diamtero filiera (mm)
500 Gap 2,2
Controllo di spessore
included Automatic Plastcontrol 2010

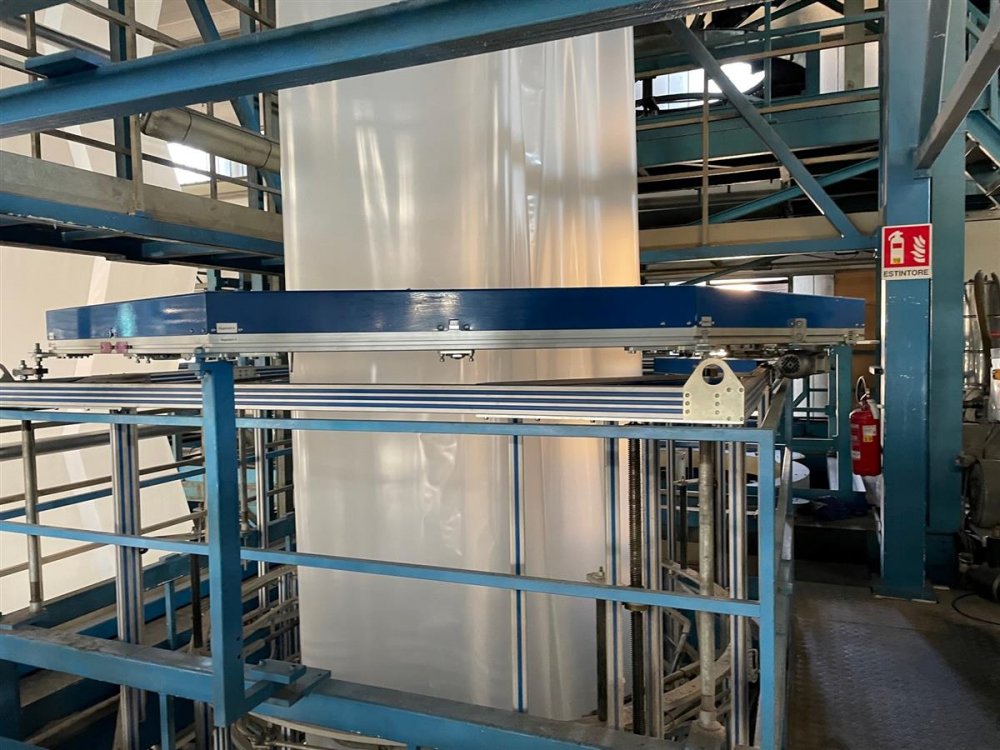

Bubble cage
included
Stiro
oscillating type ST 199 roto-2400
Trattamento Corona
brand AFS
Guida film
automatic type, brand E+L
Tipo avvolgitore
Double back to back
Diametro massimo avvolgitore
1200 mm
Descrizione avvolgitore

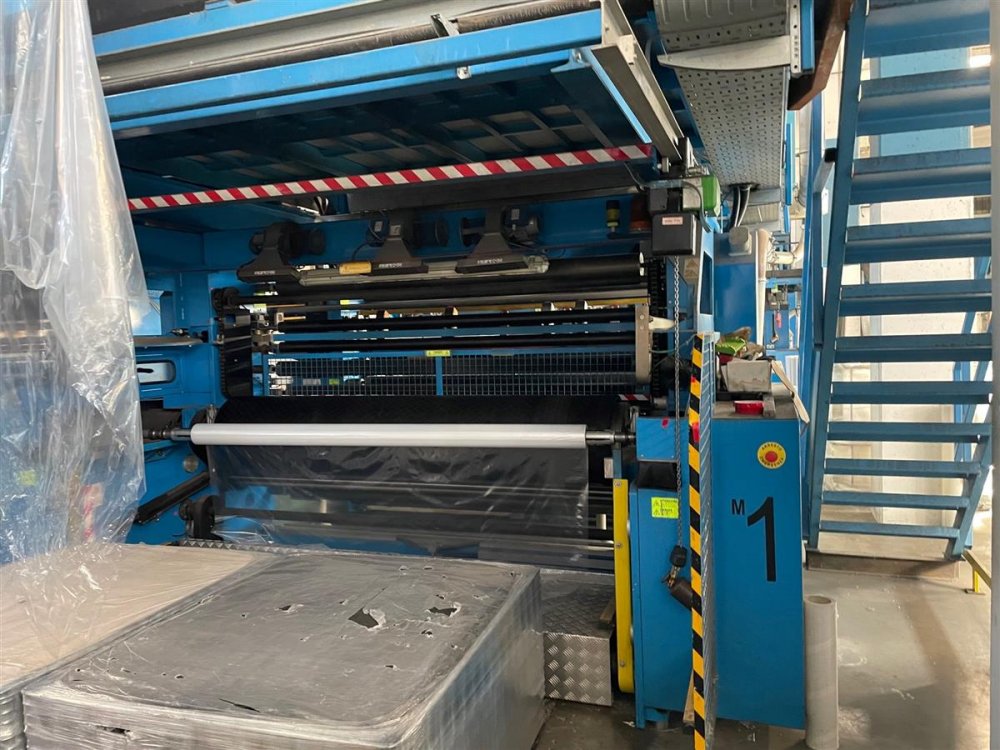

double automatic rewinder BO PLUS/D 2400 with reverse rewinding system.
Ulteriori informazioni
Non-marking bubble guide GSR 2350/8-5 with motorized opening and adjustment system with remote control and also motorized height adjustment system with remote control.The supply includes also Recotrim regranulating system, output 10-40 kg/h. IBC cooling system. Chiller included Eurochiller ABF 40 /PW
Codice Macchina EX413
Manufacturer MACCHI
Year 2010
Numero di strati 3
Struttura film ABC
Materiali LDPE, LLDPE,HDPE,MDPE,EVA, PP, mLLDPE
Larghezza film 2300
Output (Kg/h) 600 kg/h
Rif strati estrusore 1: PLASTEX
Screw diam 1 80/30 D
Description 1 Motor in AC KW 120, hydraulic screenchanger 80 mm, Gravimetric dosing unit 4comp
Rif strati estrusore 2: PLASTEX
Screw diam 2 100/30D
Description 2 Motor in AC KW 180, hydraulic screenchanger 100 mm. Gravimetric dosing unit 5 comp
Rif strati estrusore 3: PLASTEX
Screw diam 3 80/30 D
Description 3 Motor in AC KW 120, hydraulic screenchanger 80 mm. Gravimetric dosing unit 4 comp.
Descrizione testa IBC, carbon fiber cooling ring type CR-MAX3
Diamtero filiera (mm) 500 Gap 2,2
Controllo di spessore included Automatic Plastcontrol 2010
Bubble cage included
Stiro oscillating type ST 199 roto-2400
Trattamento Corona brand AFS
Guida film automatic type, brand E+L
Tipo avvolgitore Double back to back
Diametro massimo avvolgitore 1200 mm
Descrizione avvolgitore double automatic rewinder BO PLUS/D 2400 with reverse rewinding system.
Ulteriori informazioni Non-marking bubble guide GSR 2350/8-5 with motorized opening and adjustment system with remote control and also motorized height adjustment system with remote control.The supply includes also Recotrim regranulating system, output 10-40 kg/h. IBC cooling system. Chiller included Eurochiller ABF 40 /PW
