- Codice Macchina
- FM157
- Manufacturer
- OLIVINI
- Year
- 1990
- Numero di colori
- 4
- Rinnovo

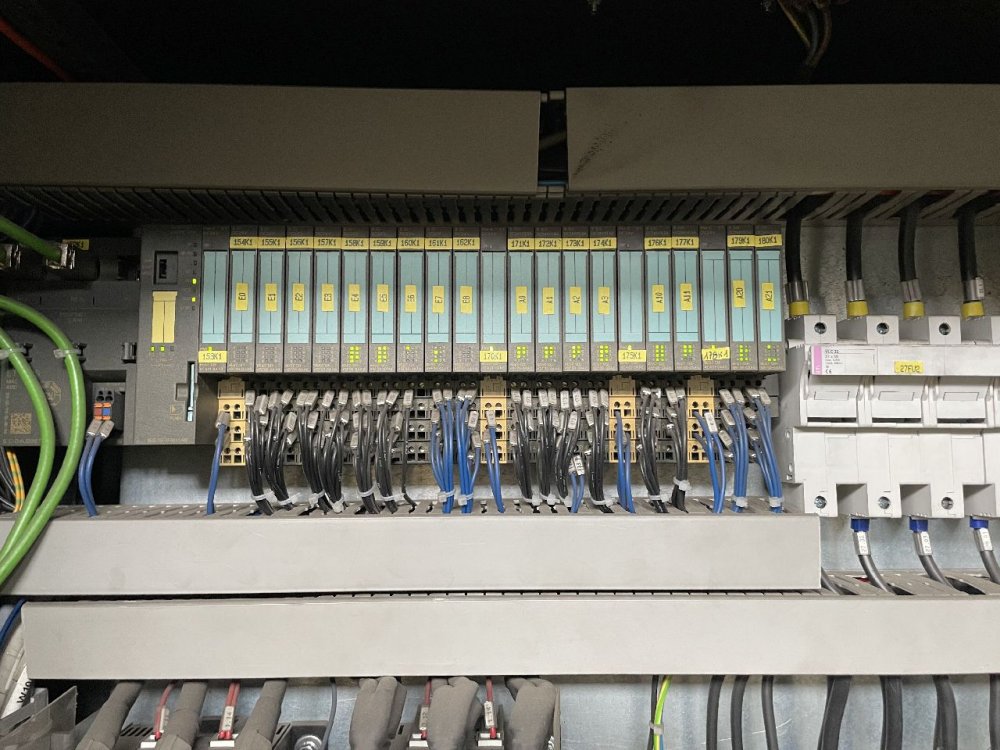

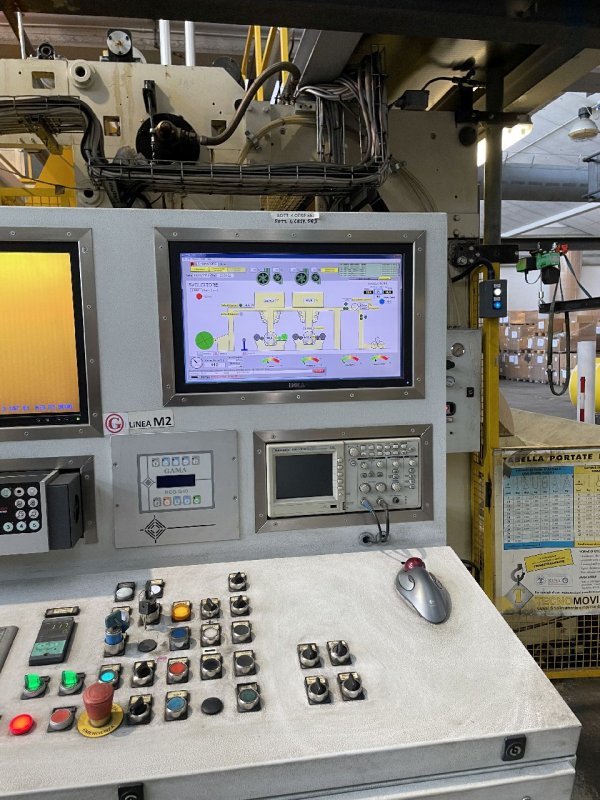

- Machine renovates in 2012. Including new PLC Siemens S/, New HMI panel and SW. Video camera
- Gearless
- No
- Cambio a maniche rapido
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 2600
- Larghezza stampa (mm)
- 2650
- Essiccazione
- 4 hoods, thermal oil heaters +1x IR heaters

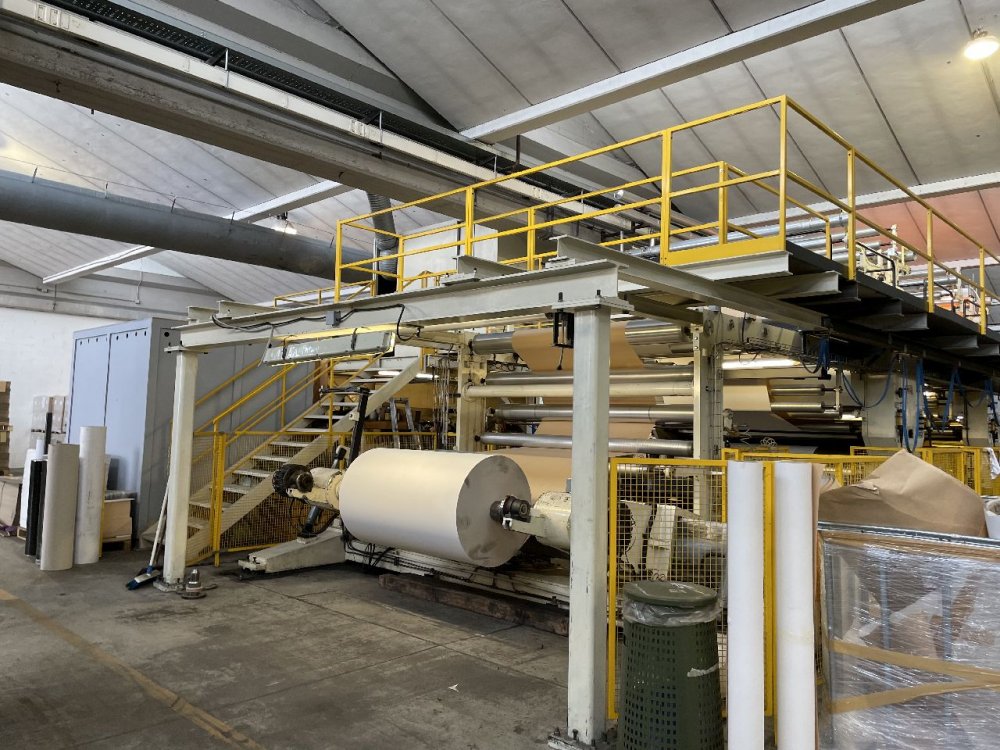

- Unwinder type
- Shaftless, reel lift up from floor, double pneumatic break
- Diametro massimo svolgitore (mm)
- 1600

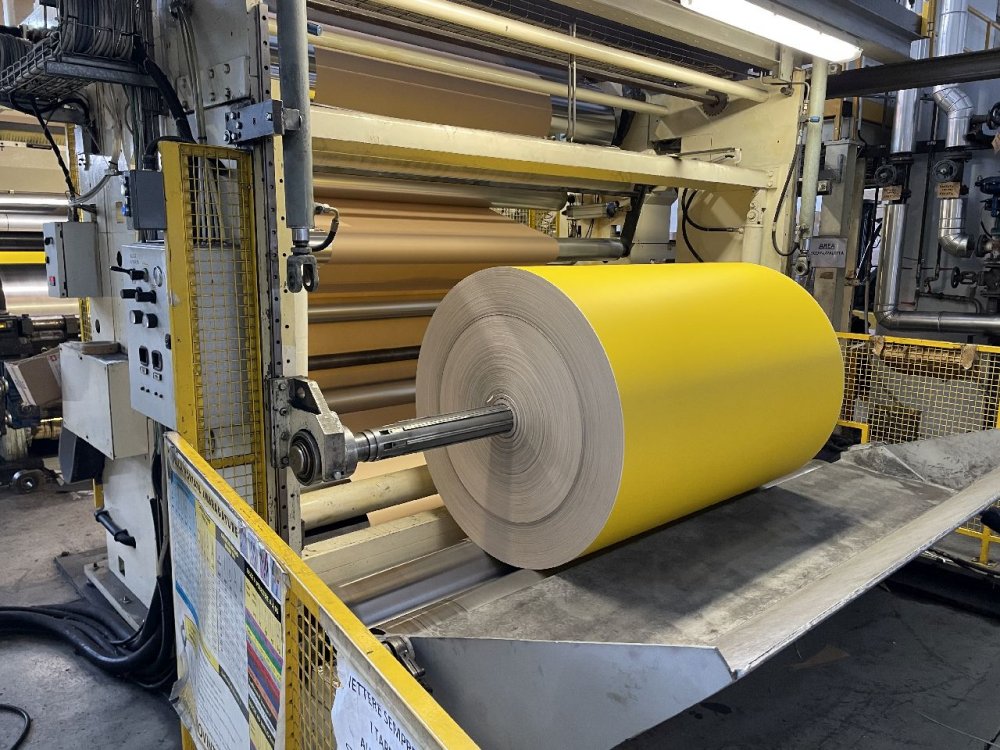

- Rewinder type
- Surface, 2 drum winder
- Max reel diameter rewinder (mm)
- 1600
- Videocamera
- BST Handy scan 3000
- Guida film
- Gama

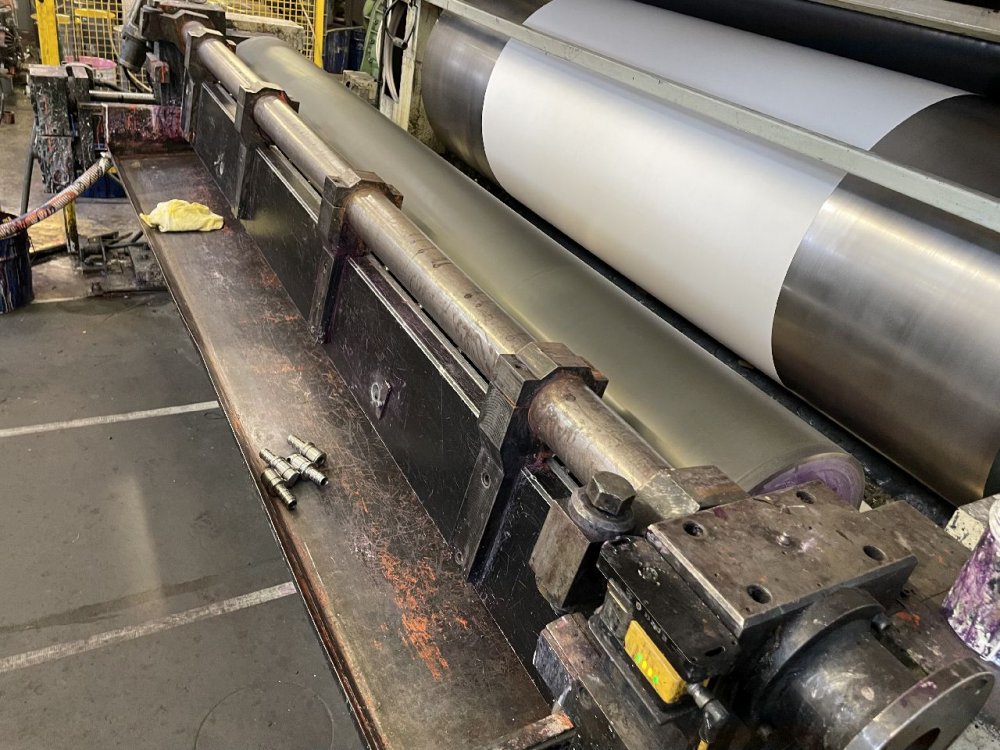

- Chamber doctor blades
- All 4 units with closed chamber doctor blade and ceramic anilox
- Anilox
- 4 ceramic anilox
- Cilindri stampa
- sets available
| Codice Macchina | FM157 |
| Manufacturer | OLIVINI |
| Year | 1990 |
| Numero di colori | 4 |
| Rinnovo | Machine renovates in 2012. Including new PLC Siemens S/, New HMI panel and SW. Video camera |
| Gearless | No |
| Cambio a maniche rapido | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 2600 |
| Larghezza stampa (mm) | 2650 |
| Essiccazione | 4 hoods, thermal oil heaters +1x IR heaters |
| Unwinder type | Shaftless, reel lift up from floor, double pneumatic break |
| Diametro massimo svolgitore (mm) | 1600 |
| Rewinder type | Surface, 2 drum winder |
| Max reel diameter rewinder (mm) | 1600 |
| Videocamera | BST Handy scan 3000 |
| Guida film | Gama |
| Chamber doctor blades | All 4 units with closed chamber doctor blade and ceramic anilox |
| Anilox | 4 ceramic anilox |
| Cilindri stampa | sets available |
