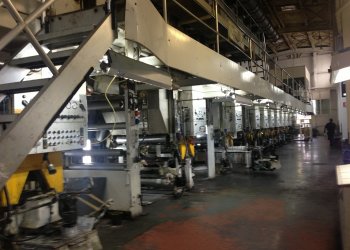

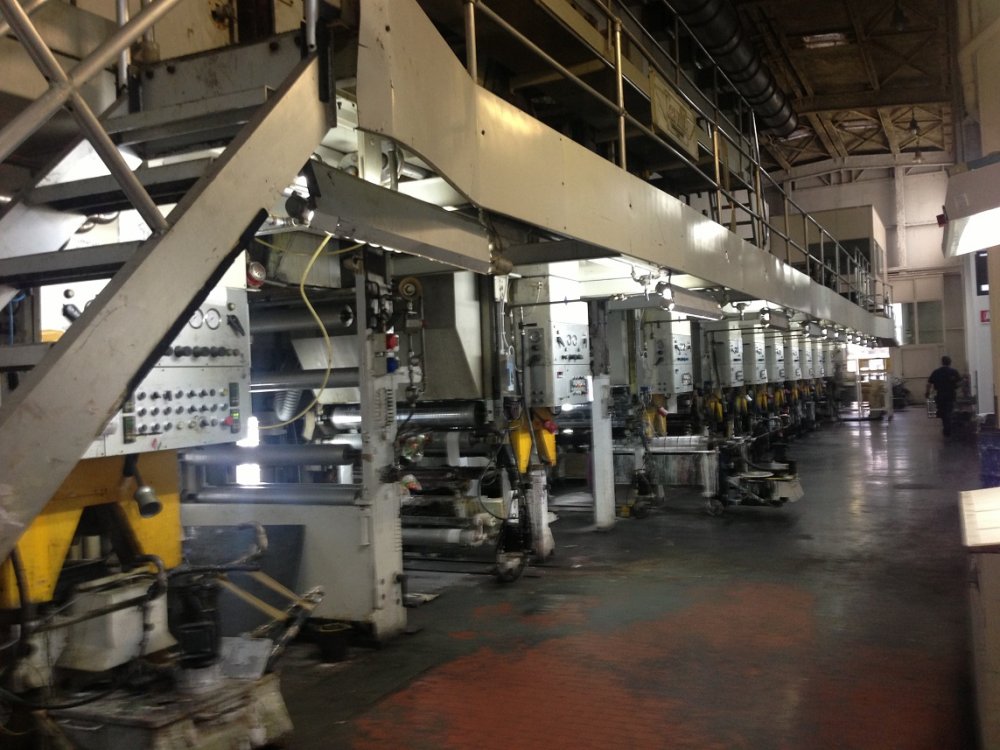

CERUTTI 960 Macchina da stampa rotocalco 10 colori // Rotogravure // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Photo Gallery

Codice Macchina: RO129
Manufacturer: CERUTTI
Modello: 960
Year: 1996
Numero di colori: 10
Possibilità stampa: 9+0, 8+1, 9+ lamination
Rinnovo: 2010 new digital drives by SIEMENS , New PLC Siemens S7 , new register control , new motors and drives on infeed and outfeed driven calender nips, new machine computer, new Video camera
Motorizzazione: Cardan
Trolley system: Yes
Larghezza nastro (mm): 1220
Larghezza stampa (mm): 1200
Formato stampa (mm): 400-900 mm

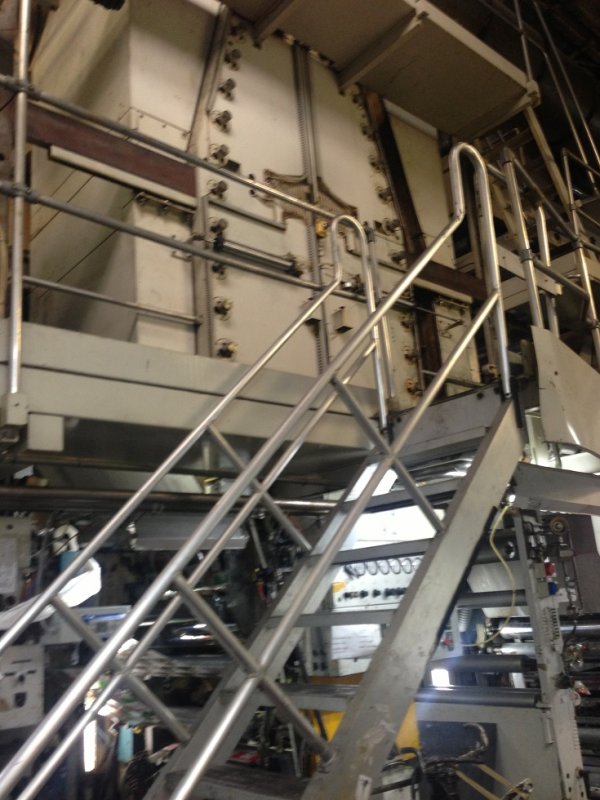

Drying specifications: Unit 1 single extended ; stations 2-7 single standard hood; station 8 reversible two zones double hood, station 9 reversible two zones double hood extended 2x 3 mt ;station 10 two zone super extended 2x 5 mt ; thermo oil heaters, automatic recirculation system with LEL control by NIRA
Drying heat surce: Thermo oil heaters

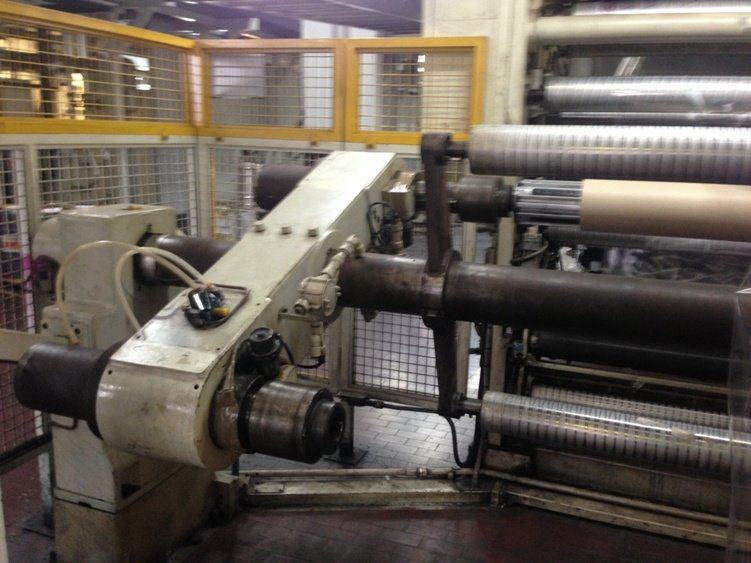

Unwinder type: Turret automatic diam 900 mm
Diametro massimo svolgitore (mm): 900
Rewinder type: Turret automatic
Max reel diameter rewinder (mm): 900

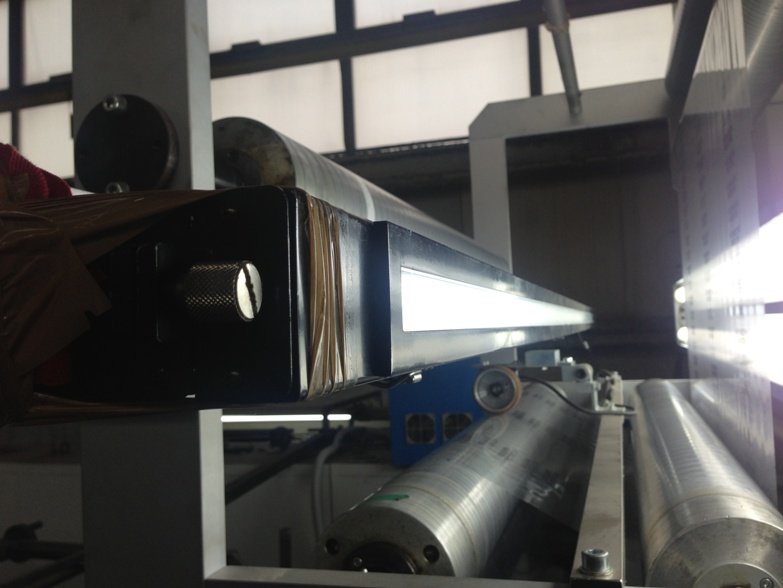

Videocamera: Eltromat 3 ccd with monitor 42"
Controllo di registro: GRAFYKONTROL CR 33 LT new 2010
Vyscosity control: SELECTRA new
Trattamento Corona: YES double side for secondary unwinder
Cilindri stampa: 500
Ulteriori informazioni: 14 trolleys ESA systems by ACE on units 2 - 9

Codice Macchina	RO129
Manufacturer	CERUTTI
Modello	960
Year	1996
Numero di colori	10
Possibilità stampa	9+0, 8+1, 9+ lamination
Rinnovo	2010 new digital drives by SIEMENS , New PLC Siemens S7 , new register control , new motors and drives on infeed and outfeed driven calender nips, new machine computer, new Video camera
Motorizzazione	Cardan
Trolley system	Yes
Larghezza nastro (mm)	1220
Larghezza stampa (mm)	1200
Formato stampa (mm)	400-900 mm
Drying specifications	Unit 1 single extended ; stations 2-7 single standard hood; station 8 reversible two zones double hood, station 9 reversible two zones double hood extended 2x 3 mt ;station 10 two zone super extended 2x 5 mt ; thermo oil heaters, automatic recirculation system with LEL control by NIRA
Drying heat surce	Thermo oil heaters
Unwinder type	Turret automatic diam 900 mm
Diametro massimo svolgitore (mm)	900
Rewinder type	Turret automatic
Max reel diameter rewinder (mm)	900
Videocamera	Eltromat 3 ccd with monitor 42"
Controllo di registro	GRAFYKONTROL CR 33 LT new 2010
Vyscosity control	SELECTRA new
Trattamento Corona	YES double side for secondary unwinder
Cilindri stampa	500
Ulteriori informazioni	14 trolleys ESA systems by ACE on units 2 - 9
