SCHIAVI SIGMA Macchina da stampa flexo 8 colori

Codice Macchina
FL1105
Manufacturer
SCHIAVI
Modello
SIGMA
Year
2002
Numero di colori
8
Gearless
Yes
Cambio a maniche rapido
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Larghezza nastro (mm)
1270
Larghezza stampa (mm)
1220
Min print repeat (mm)
320
Max print repeat (mm)
700
Unwinder type
Turret automatic
Diametro massimo svolgitore (mm)
800

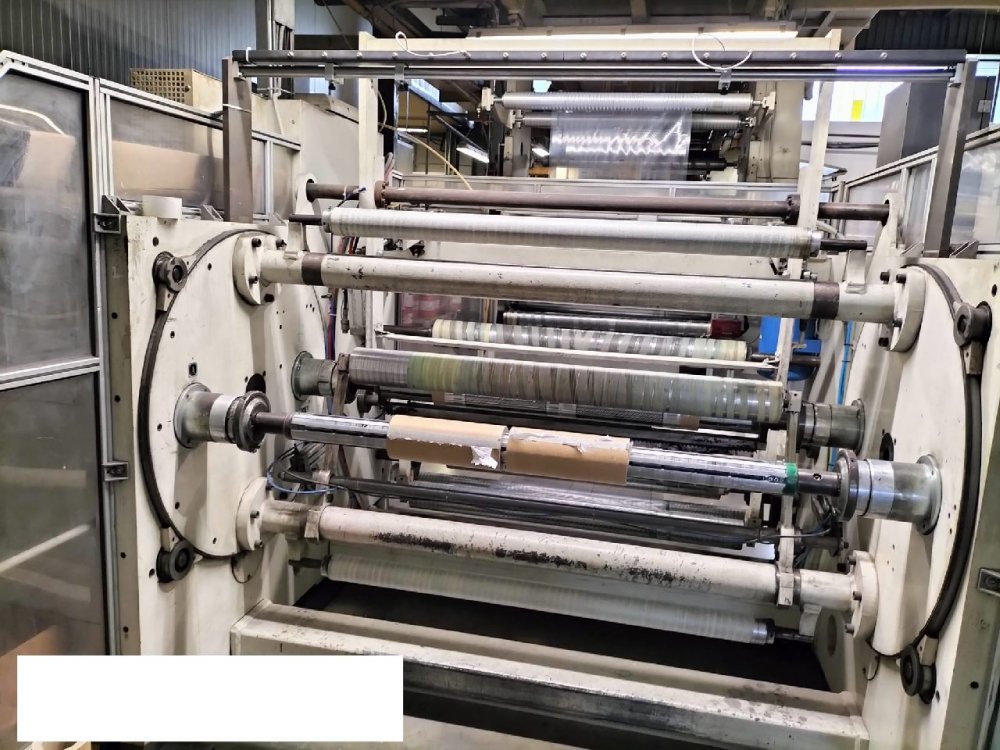

Rewinder type
Turret automatic
Max reel diameter rewinder (mm)
800
Essiccazione
2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control
Videocamera
yes by RE
Guida film
Yes FIFE OPG in and out
Vyscosity control
Yes Automatic by Gama
Sistema d'inchiostro
Closed chamber doctor blades
Anilox
12 ceramic anilox sleeves
Maniche stampa
4 sets
Codice Macchina FL1105
Manufacturer SCHIAVI
Modello SIGMA
Year 2002
Numero di colori 8
Gearless Yes
Cambio a maniche rapido Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Larghezza nastro (mm) 1270
Larghezza stampa (mm) 1220
Min print repeat (mm) 320
Max print repeat (mm) 700
Unwinder type Turret automatic
Diametro massimo svolgitore (mm) 800
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Essiccazione 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control

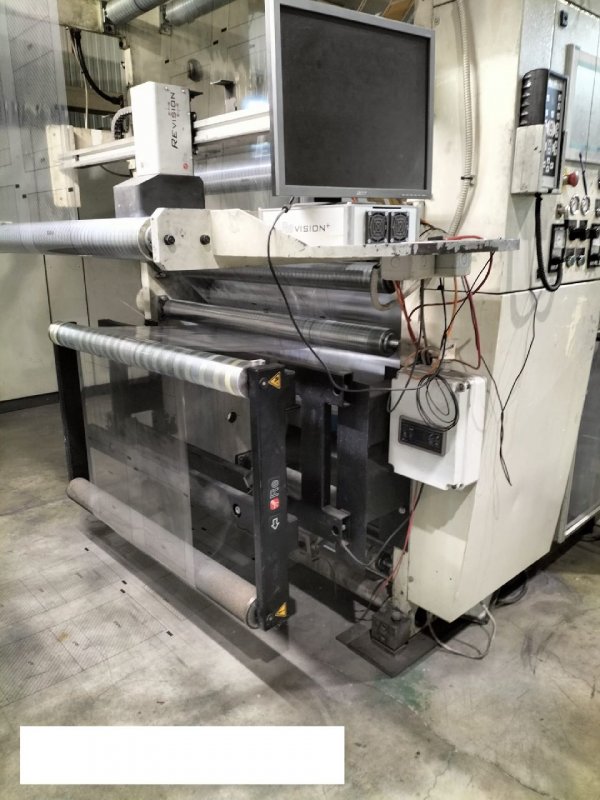

Videocamera yes by RE
Guida film Yes FIFE OPG in and out
Vyscosity control Yes Automatic by Gama
Sistema d'inchiostro Closed chamber doctor blades
Anilox 12 ceramic anilox sleeves
Maniche stampa 4 sets
