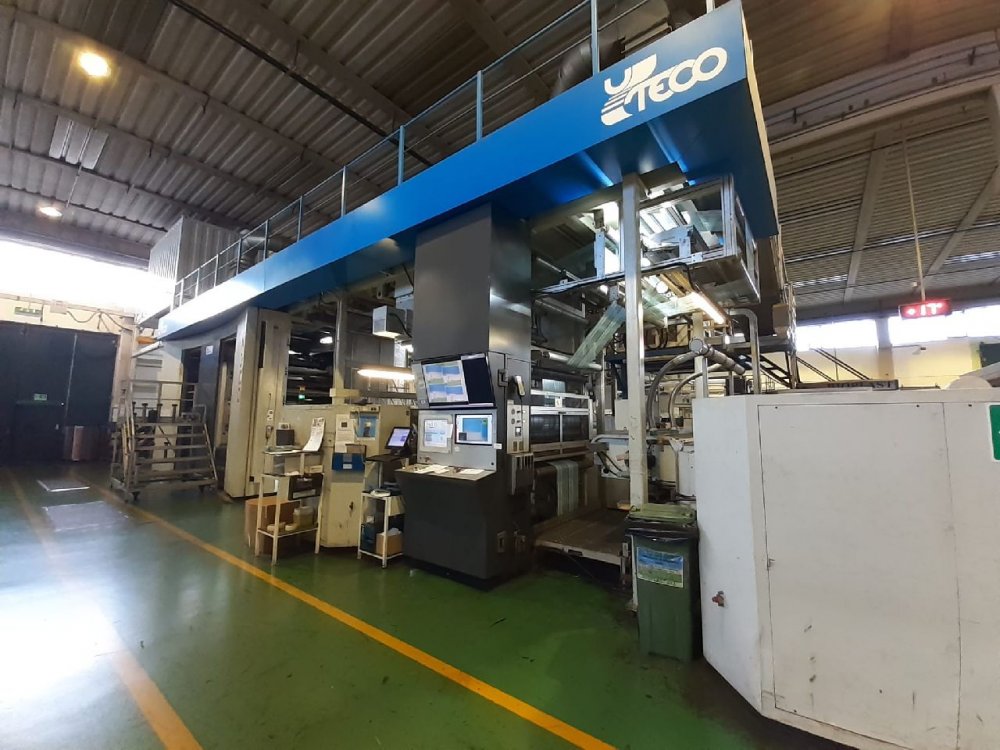

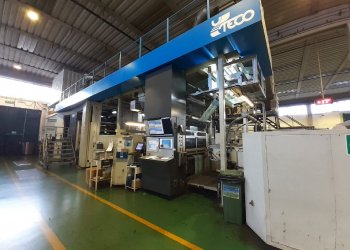

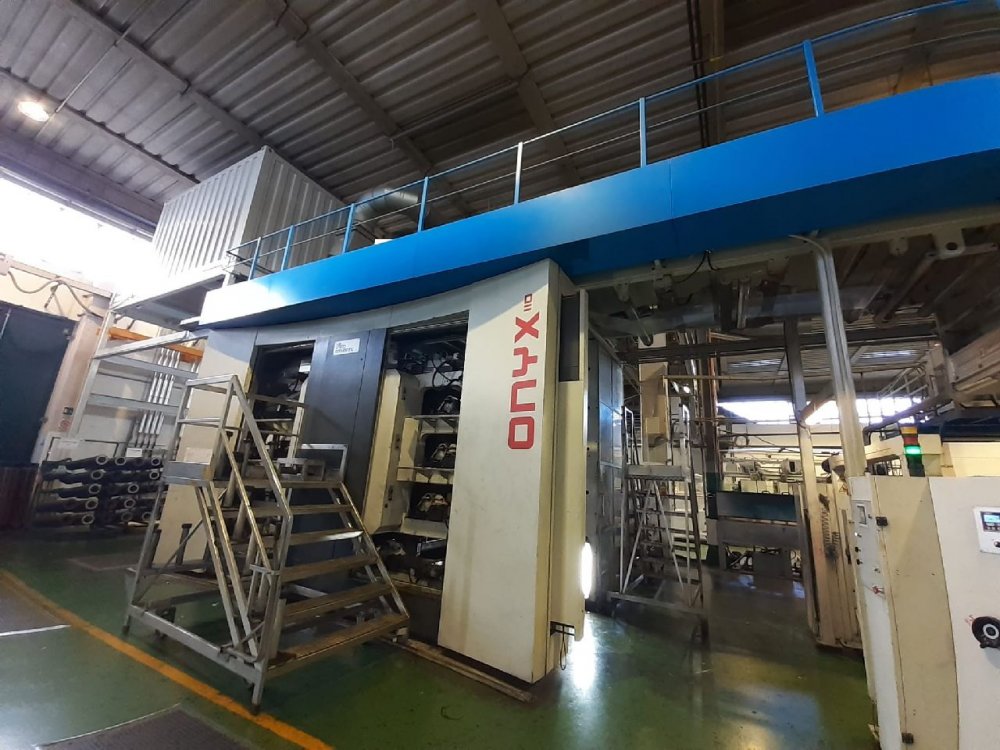

UTECO ONYX 110 Macchina da stampa flexo 10 colori // Flexo CI // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Codice Macchina: FL1096
Manufacturer: UTECO
Modello: ONYX 110
Year: 2014
Numero di colori: 10
Print possibilityes: 10+0
Gearless: Yes
Cambio a maniche rapido: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Larghezza nastro (mm): 1350
Larghezza stampa (mm): 1300
Min print repeat (mm): 380
Max print repeat (mm): 1100
Unwinder type: Turret Automatic with roll loading system
Diametro massimo svolgitore (mm): 1000
Rewinder type: Turret Automatic with roll unloading system
Max reel diameter rewinder (mm): 1000
Essiccazione: 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
Videocamera: BST Premius 3 chip , BST Q-Center automatic 100% inspection system
Guida film: Yes in and out
Vyscosity control: Yes automatic
Washing system: Yes automatic
Sistema d'inchiostro: Closed chamber doctor blades - 10 Chamber + 4 spares
Anilox: 12 ceramic anilox sleeves
Maniche stampa: 30
Cilindri stampa: Print cylinder mandrels in Carbon fiber 114, 7 mm diam - 20 Carbon fiber carriers
Ulteriori informazioni: Complete automatic print setting and control with following features : -Register control by inspection system - Printing pressure setting and control Kiss&Go - Print defect control - Colour control -Bar code control

Codice Macchina	FL1096
Manufacturer	UTECO
Modello	ONYX 110
Year	2014
Numero di colori	10
Print possibilityes	10+0
Gearless	Yes
Cambio a maniche rapido	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Larghezza nastro (mm)	1350
Larghezza stampa (mm)	1300
Min print repeat (mm)	380
Max print repeat (mm)	1100
Unwinder type	Turret Automatic with roll loading system
Diametro massimo svolgitore (mm)	1000
Rewinder type	Turret Automatic with roll unloading system
Max reel diameter rewinder (mm)	1000
Essiccazione	2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
Videocamera	BST Premius 3 chip , BST Q-Center automatic 100% inspection system
Guida film	Yes in and out
Vyscosity control	Yes automatic
Washing system	Yes automatic
Sistema d'inchiostro	Closed chamber doctor blades - 10 Chamber + 4 spares
Anilox	12 ceramic anilox sleeves
Maniche stampa	30
Cilindri stampa	Print cylinder mandrels in Carbon fiber 114, 7 mm diam - 20 Carbon fiber carriers
Ulteriori informazioni	Complete automatic print setting and control with following features : -Register control by inspection system - Printing pressure setting and control Kiss&Go - Print defect control - Colour control -Bar code control
