WINDMÖLLER & HÖLSCHER PRIMAFLEX CM Macchina da stampa flexo 8 colori // Flexo CI // Printing machines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallery

Codice Macchina: FL862
Manufacturer: WINDMÖLLER & HÖLSCHER
Modello: PRIMAFLEX CM
Year: 2005
Numero di colori: 8
Gearless: Yes
Cambio a maniche rapido: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Larghezza nastro (mm): 1050
Larghezza stampa (mm): 1000
Min print repeat (mm): 300
Max print repeat (mm): 800

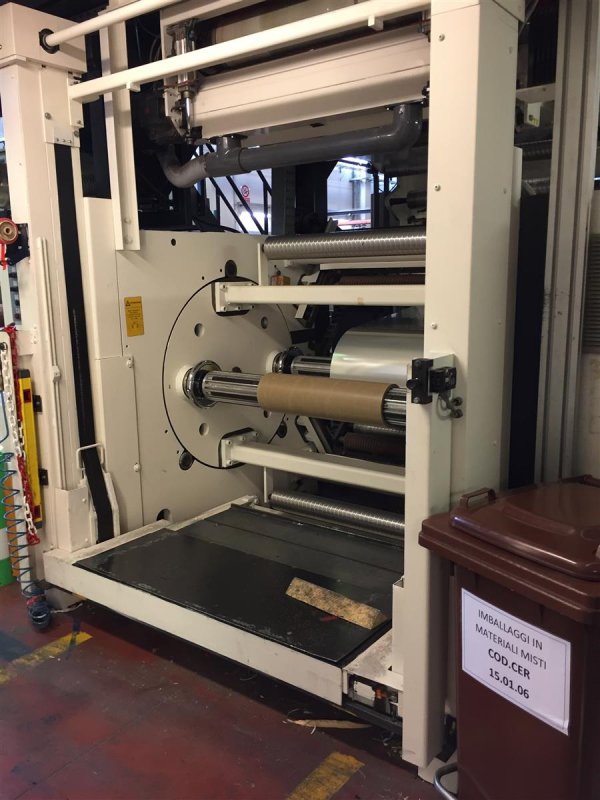

Unwinder type: TURRET
Diametro massimo svolgitore (mm): 800
Rewinder type: TURRET
Max reel diameter rewinder (mm): 800

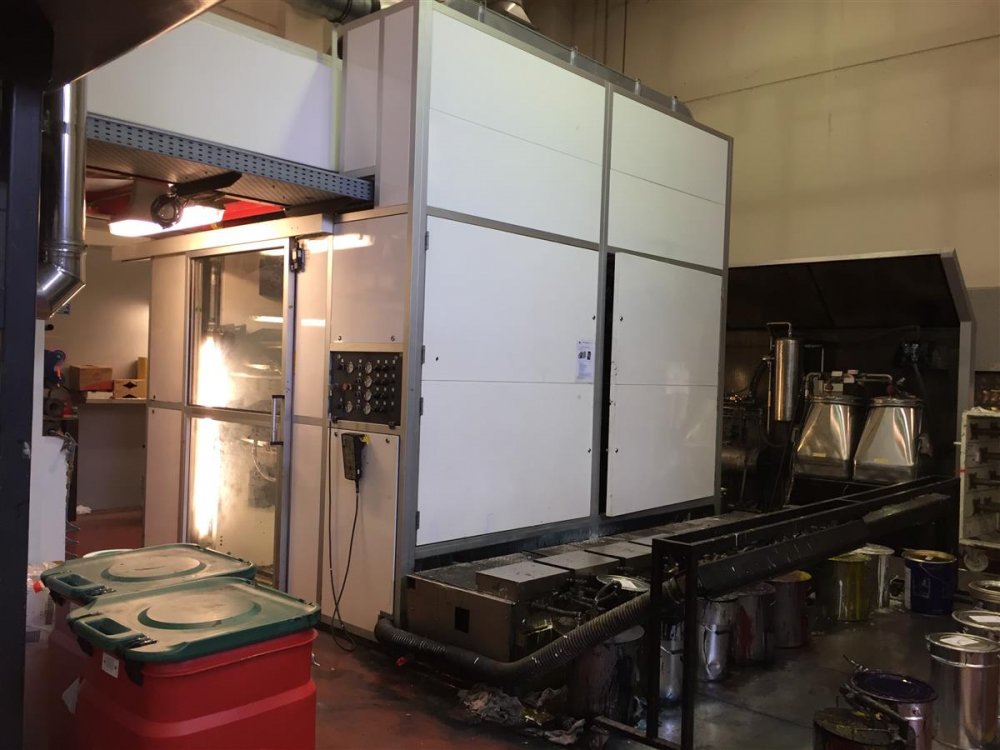

Essiccazione: 2 zones, 2 thermal oil heaters, 4 fans

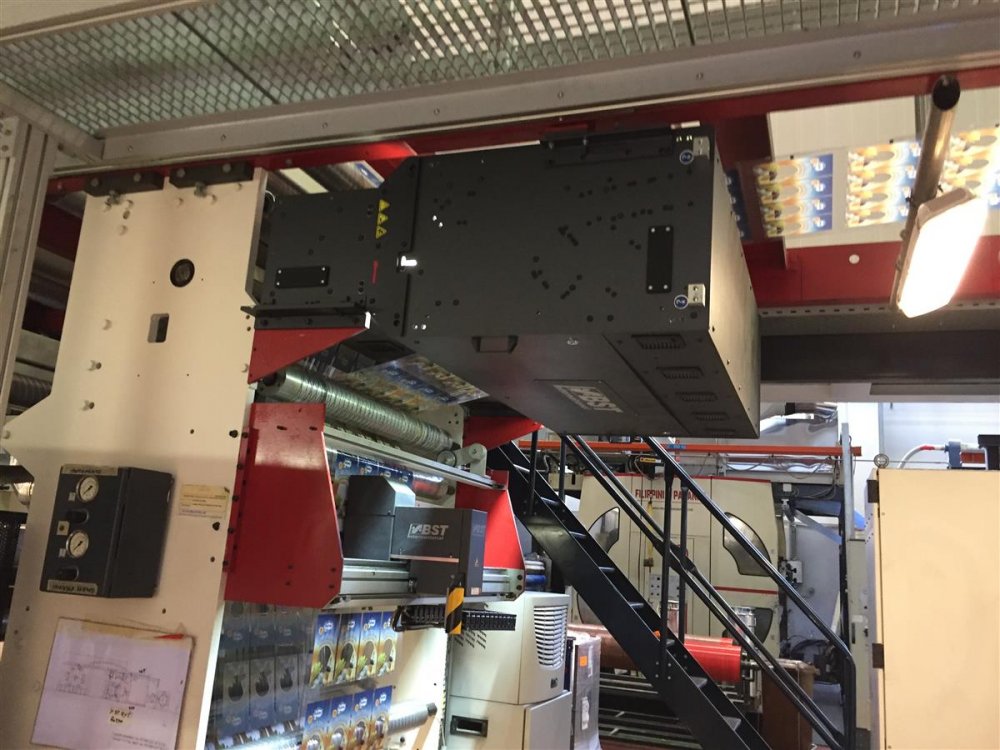

Videocamera: Qview BST 100% inspection installed in year 2015 Handy cam BST video camera
Trattamento Corona: AFS, driven
Guida film: BST
Washing system: Turboclean 400
Sistema d'inchiostro: closed chambers doctor blades
Anilox: Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5
Maniche stampa: approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750
Ulteriori informazioni: SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers

Codice Macchina	FL862
Manufacturer	WINDMÖLLER & HÖLSCHER
Modello	PRIMAFLEX CM
Year	2005
Numero di colori	8
Gearless	Yes
Cambio a maniche rapido	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Larghezza nastro (mm)	1050
Larghezza stampa (mm)	1000
Min print repeat (mm)	300
Max print repeat (mm)	800
Unwinder type	TURRET
Diametro massimo svolgitore (mm)	800
Rewinder type	TURRET
Max reel diameter rewinder (mm)	800
Essiccazione	2 zones, 2 thermal oil heaters, 4 fans
Videocamera	Qview BST 100% inspection installed in year 2015 Handy cam BST video camera
Trattamento Corona	AFS, driven
Guida film	BST
Washing system	Turboclean 400
Sistema d'inchiostro	closed chambers doctor blades
Anilox	Approx 26 anolox rollers: 1x40 L/cm, 1x60 L/cm, 1x 80 L/cm, 1x100 L/cm, 2x120 L/cm, 2x140 L/cm,1x180 L/cm,2x200 L/cm,2x260 L/cm,2x300 L/cm, 7x340 L/cm, +5
Maniche stampa	approx 300 sleeves, formats, 300,310,320,330,340,350,360,370,380,390,400,410,420,430,440,450,460,470,480,500,520,540,560,570,580,600,620,650,680,700,750
Ulteriori informazioni	SIMCO ionization bars before printing LEL Optima plus ENPRO approx 3 stes of carriers
