- Code Machine
- PO08
- Fabricant
- HCI CONVERTING
- Modello
- FTSC
- Année
- 2000
- Type of sealing/bags
- Multiple type
- Bag length
- max height 700mm
- Bag width
- max width 450mm

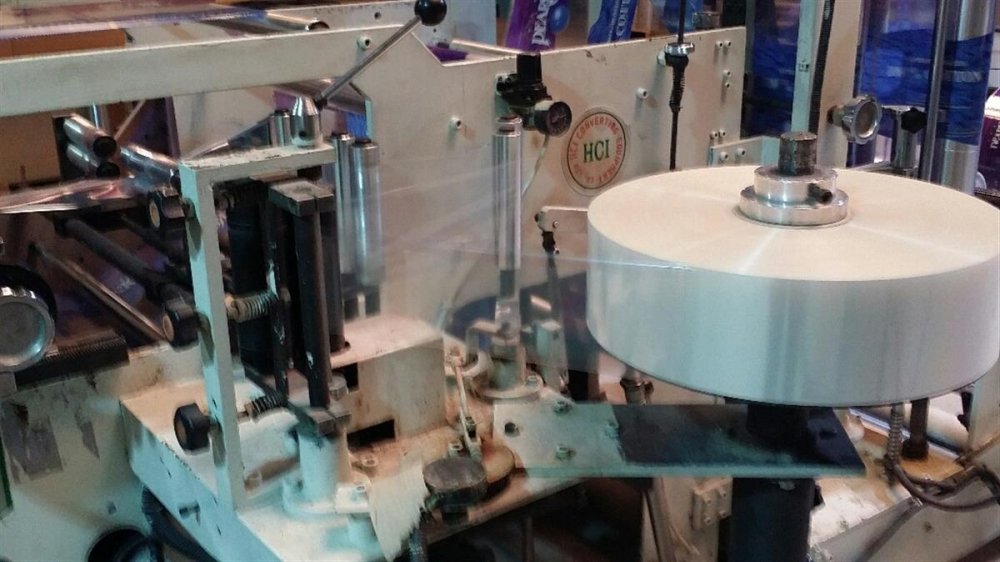

- Unwinder
- dia 600 mm, 1000 mm
- Cycle / min
- mechancial 130 bags/min
- Additional information type of bags
- 3 side seal pouch max width 450mm-max height 700mm ; three side seal pouch with zipper max width 300mm -max height 480mm ; stand up pouch with k-seal 400-480mm -150 open gusset ; stand up pouch with k seal and zipper 300-480mm--150 open gusset ; stand up pouch with arc seal 300-480mm --150 open gusset; stand up pouch with zipper and arc seal 300-480mm--150 open gusset; side gusset pouch 480-700mm--150 open gusset
- Note
- Type of sealing/bags – standup (open gusset), 3ss pouch, zipper pouches Sealings:, k seal, arc seal, 3side seal, zipper, open inserted gusset. Punch: euro punch, notch punch, hole punch, handle punch, gusset punch – possible to 3 punches on a same pouch – depends, pouch size, and requirements. Sealers: bag zipper sealer with cooling seal bar – 1 no ; bag gusset heat sealer – 1 set. bag side heat & cool sealer : staright - 4 nos; bag bottom top & bottom sealer – 1 no;bag bottom top sealer – 1 nos ;bottom (bottom selaer) – 1 no ups of stand up pouch – pouch height : 220 mm 4 ups of simple 3 side seal pouch = 100 mm pouch width / height.
| Code Machine | PO08 |
| Fabricant | HCI CONVERTING |
| Modello | FTSC |
| Année | 2000 |
| Type of sealing/bags | Multiple type |
| Bag length | max height 700mm |
| Bag width | max width 450mm |
| Unwinder | dia 600 mm, 1000 mm |
| Cycle / min | mechancial 130 bags/min |
| Additional information type of bags | 3 side seal pouch max width 450mm-max height 700mm ; three side seal pouch with zipper max width 300mm -max height 480mm ; stand up pouch with k-seal 400-480mm -150 open gusset ; stand up pouch with k seal and zipper 300-480mm--150 open gusset ; stand up pouch with arc seal 300-480mm --150 open gusset; stand up pouch with zipper and arc seal 300-480mm--150 open gusset; side gusset pouch 480-700mm--150 open gusset |
| Note | Type of sealing/bags – standup (open gusset), 3ss pouch, zipper pouches Sealings:, k seal, arc seal, 3side seal, zipper, open inserted gusset. Punch: euro punch, notch punch, hole punch, handle punch, gusset punch – possible to 3 punches on a same pouch – depends, pouch size, and requirements. Sealers: bag zipper sealer with cooling seal bar – 1 no ; bag gusset heat sealer – 1 set. bag side heat & cool sealer : staright - 4 nos; bag bottom top & bottom sealer – 1 no;bag bottom top sealer – 1 nos ;bottom (bottom selaer) – 1 no ups of stand up pouch – pouch height : 220 mm 4 ups of simple 3 side seal pouch = 100 mm pouch width / height. |
