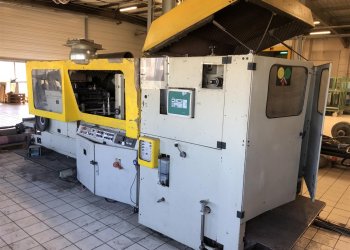

- Code Machine
- FS59
- Fabricant
- HOLWEG
- Modello
- RS21
- Année
- 1994
- Width (mm)
- 900
- Materials
- PAPER 20-125GSM
- Feed:
- Reel fed
- Bag length (mm)
- 160-680
- Bag width (mm)
- 70-380
- Bottom width (mm)
- 70-380
- Cycle / min
- Max output with 2 grippers 200 bags/min, max with 4 grippers 600 bags/min
- Unwinder
- Unwind width 900 mm Flexotecnica Unwinder with reel lifting Unwind reels diameter max 1200 mm
- Note
- Deepth gusset 80 mm Flap 13.3mm - 18.3mm Former plates available: 100,140, 180, 190, 240, 260, 280, 340, 360 and 380 mm Cut length gears (gear pitch 10mm): 2x21, 2x34, 2x35, 2x37, 2x41, 2x42, 2x43, 2x49, 2x50, 2x51, 2x54, 2x55, 2x58 - Protocell to follow print register - Glue uit with Pump - Perforating unit
| Code Machine | FS59 |
| Fabricant | HOLWEG |
| Modello | RS21 |
| Année | 1994 |
| Width (mm) | 900 |
| Materials | PAPER 20-125GSM |
| Feed: | Reel fed |
| Bag length (mm) | 160-680 |
| Bag width (mm) | 70-380 |
| Bottom width (mm) | 70-380 |
| Cycle / min | Max output with 2 grippers 200 bags/min, max with 4 grippers 600 bags/min |
| Unwinder | Unwind width 900 mm Flexotecnica Unwinder with reel lifting Unwind reels diameter max 1200 mm |
| Note | Deepth gusset 80 mm Flap 13.3mm - 18.3mm Former plates available: 100,140, 180, 190, 240, 260, 280, 340, 360 and 380 mm Cut length gears (gear pitch 10mm): 2x21, 2x34, 2x35, 2x37, 2x41, 2x42, 2x43, 2x49, 2x50, 2x51, 2x54, 2x55, 2x58 - Protocell to follow print register - Glue uit with Pump - Perforating unit |
HOLWEG RS 26
-
Code Machine: FS80
-
Année: 2005
-
Bag width (mm): 70 till 380 mm
WINDMÖLLER & HÖLSCHER 20
-
Code Machine: FS72
-
Année: 1978
-
Width (mm): 800
BIAGIONI 64M
-
Code Machine: FS67
-
Année: 1990
-
Width (mm): 1000
BIAGIONI
-
Code Machine: FS70
-
Année: 1998
-
Width (mm): 1000
BIAGIONI
-
Code Machine: FS69
-
Année: 1988
-
Width (mm): 1000
BIAGIONI VICTORIA Electronics
-
Code Machine: FS83
-
Année: 2008
-
Width (mm): 1000
