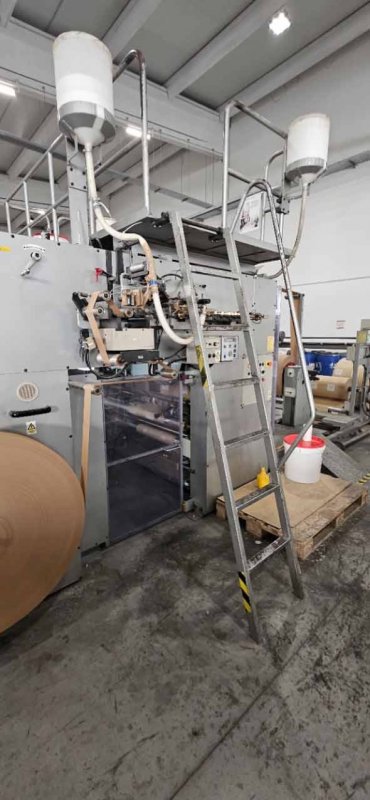

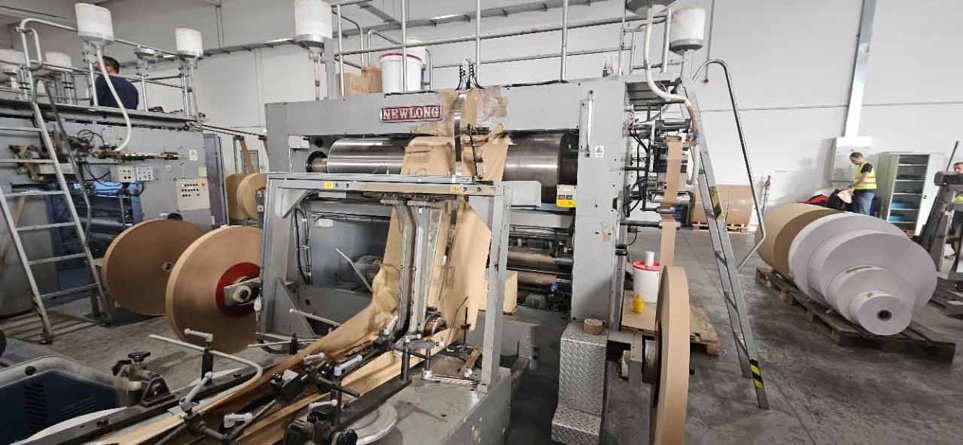

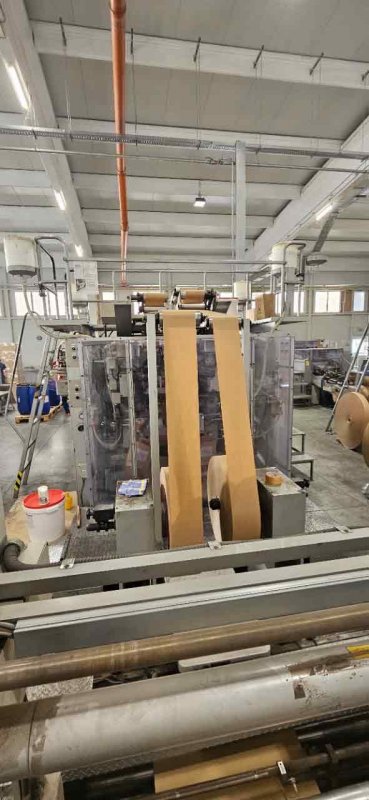

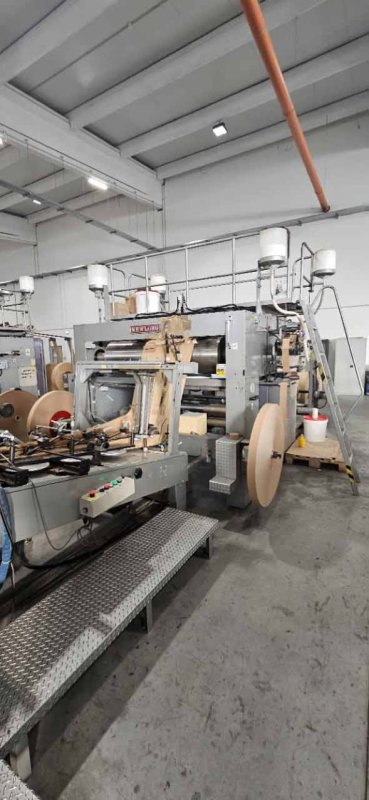

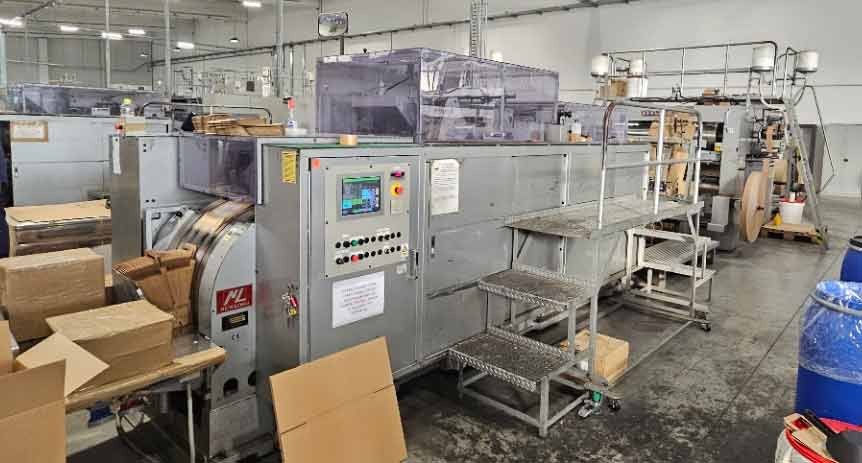

- Code Machine
- SO348
- Fabricant
- NEW LONG
- Modello
- 1546TS+538HS
- Année
- 2016
- Materials
- Paper 70 - 125 g/m2
- Feed:
- Reel fed
- Handel unit
- Flat
- Bag length max (mm)
- 650
- Bag length min (mm)
- 360
- Bag width max (mm)
- 460
- Bag width min (mm)
- 150
- Bottom width max (mm)
- 220
- Bottom width (mm)
- 80
- Cycle / min
- 180 Cycle/min

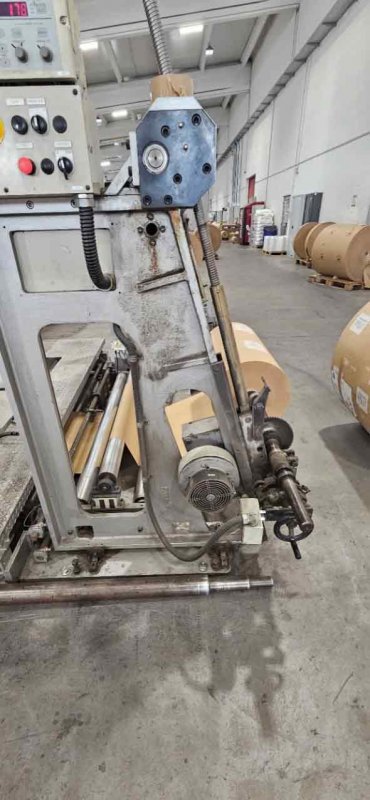

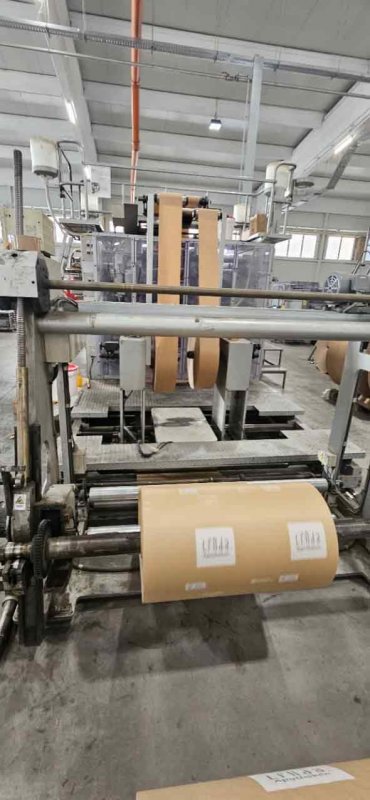

- Unwinder
- Paper roll width: 485 – 1.390mm Paper roll diameter: 350 – 1.200 mm
- Note
- With handle: Cutting length: 360 mm – 650 mm (concealed handle), 360 mm – 580 mm (unconcealed handle) Bag length: 265 mm – 590 mm (concealed handle and unconcealed handle) Bag width: 180 mm – 460 mm (concealed handle and unconcealed handle) Bottom width: 80 mm – 220 mm (concealed handle and unconcealed handle) Handle centre distance: 260 mm – 680 mm Without handle: Cutting length: 360 mm – 650 mm Bag length: 265 mm – 590 mm Bag width: 150 mm – 460 mm Bottom width: 80 mm – 220 mm HANDLE SHAPE Handle Type: 6-folded Handle Width: 18 mm Handle Length: 323 mm Handle Patch Width: 160 mm Handle Patch Length: 52 mm
| Code Machine | SO348 |
| Fabricant | NEW LONG |
| Modello | 1546TS+538HS |
| Année | 2016 |
| Materials | Paper 70 - 125 g/m2 |
| Feed: | Reel fed |

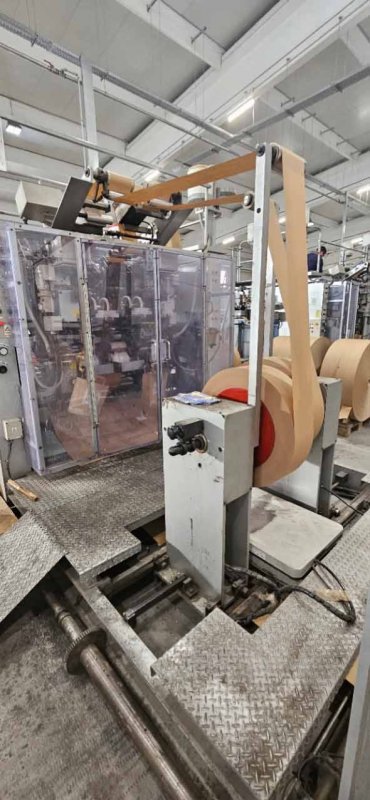

| Handel unit | Flat |
| Bag length max (mm) | 650 |
| Bag length min (mm) | 360 |
| Bag width max (mm) | 460 |
| Bag width min (mm) | 150 |
| Bottom width max (mm) | 220 |
| Bottom width (mm) | 80 |
| Cycle / min | 180 Cycle/min |
| Unwinder | Paper roll width: 485 – 1.390mm Paper roll diameter: 350 – 1.200 mm |
| Note | With handle: Cutting length: 360 mm – 650 mm (concealed handle), 360 mm – 580 mm (unconcealed handle) Bag length: 265 mm – 590 mm (concealed handle and unconcealed handle) Bag width: 180 mm – 460 mm (concealed handle and unconcealed handle) Bottom width: 80 mm – 220 mm (concealed handle and unconcealed handle) Handle centre distance: 260 mm – 680 mm Without handle: Cutting length: 360 mm – 650 mm Bag length: 265 mm – 590 mm Bag width: 150 mm – 460 mm Bottom width: 80 mm – 220 mm HANDLE SHAPE Handle Type: 6-folded Handle Width: 18 mm Handle Length: 323 mm Handle Patch Width: 160 mm Handle Patch Length: 52 mm |
