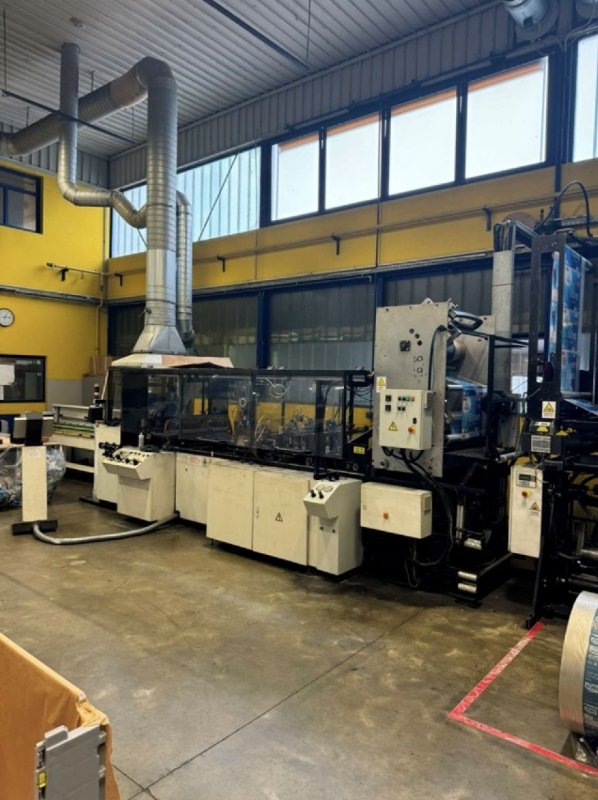

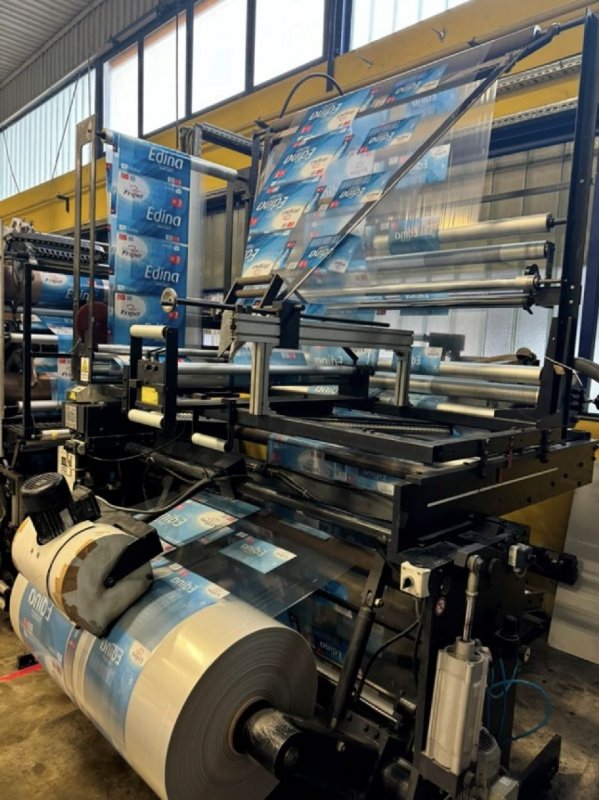

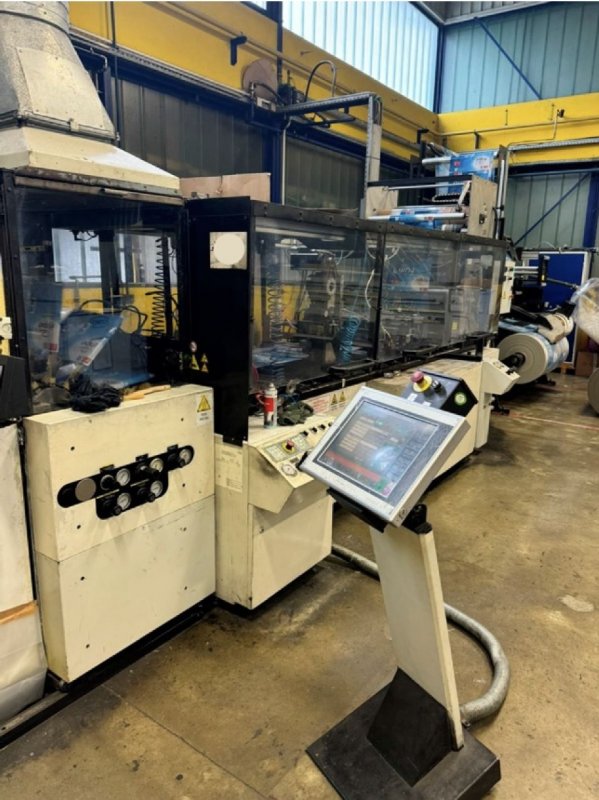

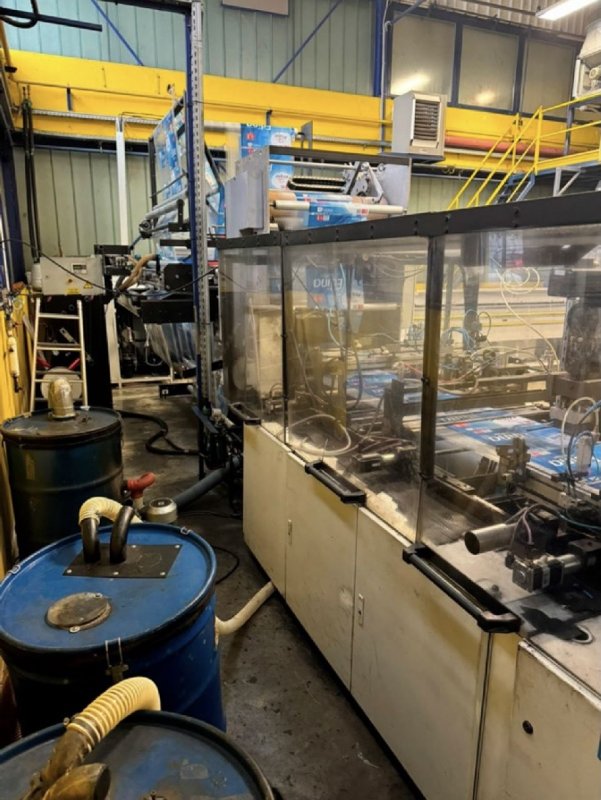

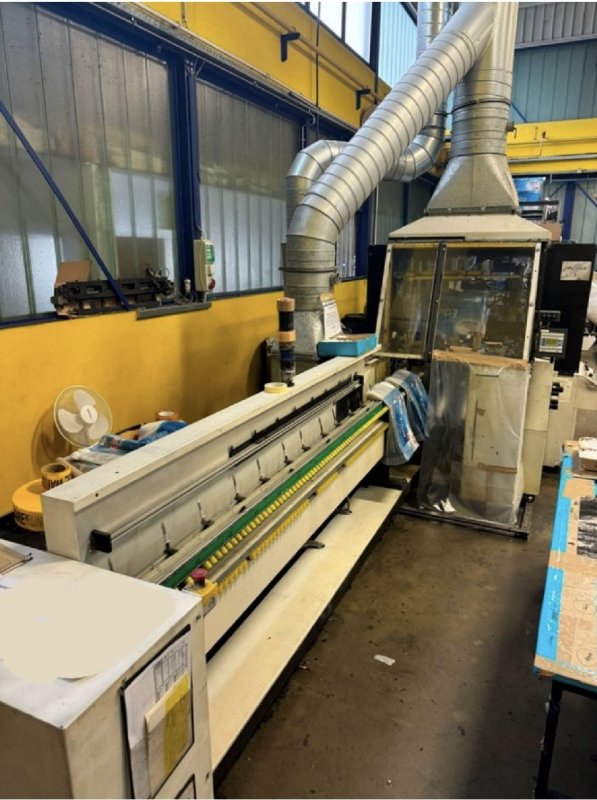

- Code Machine
- FI549
- Fabricant
- LEMO
- Modello
- INTERMAT ST-N 850
- Année
- 2006
- Type of delivery
- Wicketer)
- Type of handle
- No handle
- Type of sealing/bags
- Side weld
- Type of bags
- Wicketers
- Working width (mm)
- 850
- Number of lanes
- 1
- Bag length
- 850mm
- Bag width
- min. - 100 mm - max. - 400 mm
- Cycle / min
- min. 50 pcs/min - max. 400 pcs/min = 3,000 – 24,000 pcs/h
- Unwinder
- Width 1700 mm
- Note
- Materials: LDPE, LLDPE, MDPE, HDPE, PP Cast Foil: sleeve; half sleeve; canvas; tongue - pins; rebate; perforation Type of bags: cut-out; pins; longitudinal welding (switching) Welding method: welding bar Thickness of the bag: - min. - 15 my (hand cut) - max. - 150 my (without fold) Falc at the bottom of the bag: - min. 27 mm - max. 100 mm Guiding the film through the machine: two-sided FIFA (on the machine) Trim foil Additional seam (fold - crease): YES. Sleeve diameter: Ø 76 mm; Ø 152 mm – SIDE ROLLER GRIP – WITHOUT AXIS ! Printed foil: photocell Product ventilation: a) hole: YES. b) cross: YES.
Code Machine | FI549 |
Fabricant | LEMO |
Modello | INTERMAT ST-N 850 |
Année | 2006 |
Type of delivery | Wicketer) |
Type of handle | No handle |
Type of sealing/bags | Side weld |
Type of bags | Wicketers |
Working width (mm) | 850 |
Number of lanes | 1 |
Bag length | 850mm |
Bag width | min. - 100 mm - max. - 400 mm |
Cycle / min | min. 50 pcs/min - max. 400 pcs/min = 3,000 – 24,000 pcs/h |
Unwinder | Width 1700 mm |
Note | Materials: LDPE, LLDPE, MDPE, HDPE, PP Cast Foil: sleeve; half sleeve; canvas; tongue - pins; rebate; perforation Type of bags: cut-out; pins; longitudinal welding (switching) Welding method: welding bar Thickness of the bag: - min. - 15 my (hand cut) - max. - 150 my (without fold) Falc at the bottom of the bag: - min. 27 mm - max. 100 mm Guiding the film through the machine: two-sided FIFA (on the machine) Trim foil Additional seam (fold - crease): YES. Sleeve diameter: Ø 76 mm; Ø 152 mm – SIDE ROLLER GRIP – WITHOUT AXIS ! Printed foil: photocell Product ventilation: a) hole: YES. b) cross: YES. |
