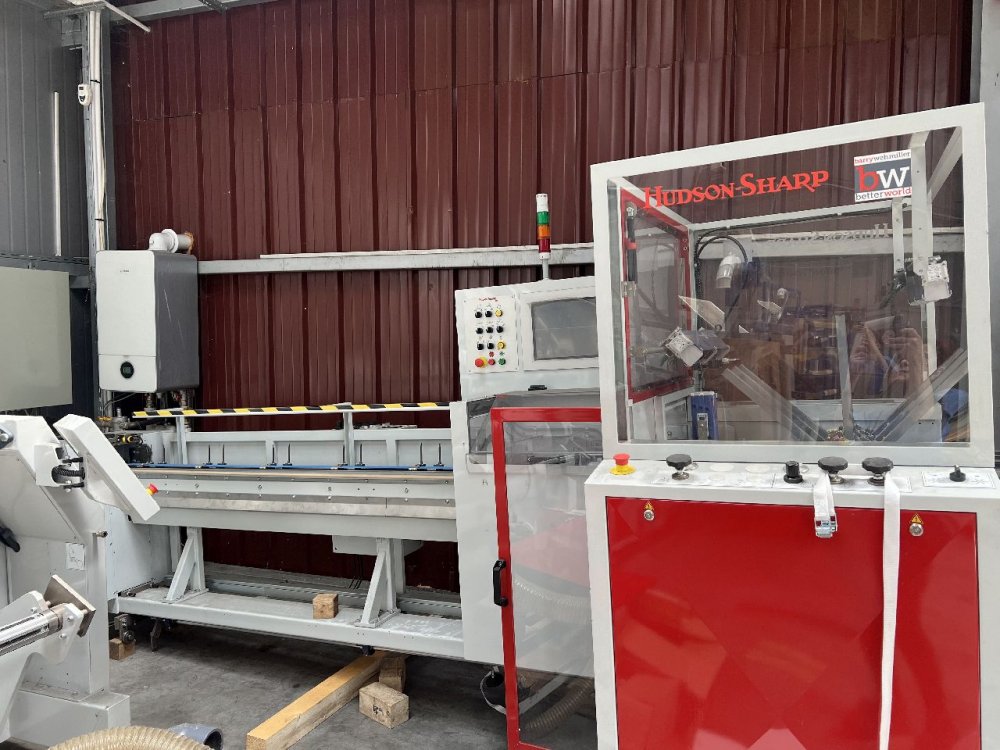

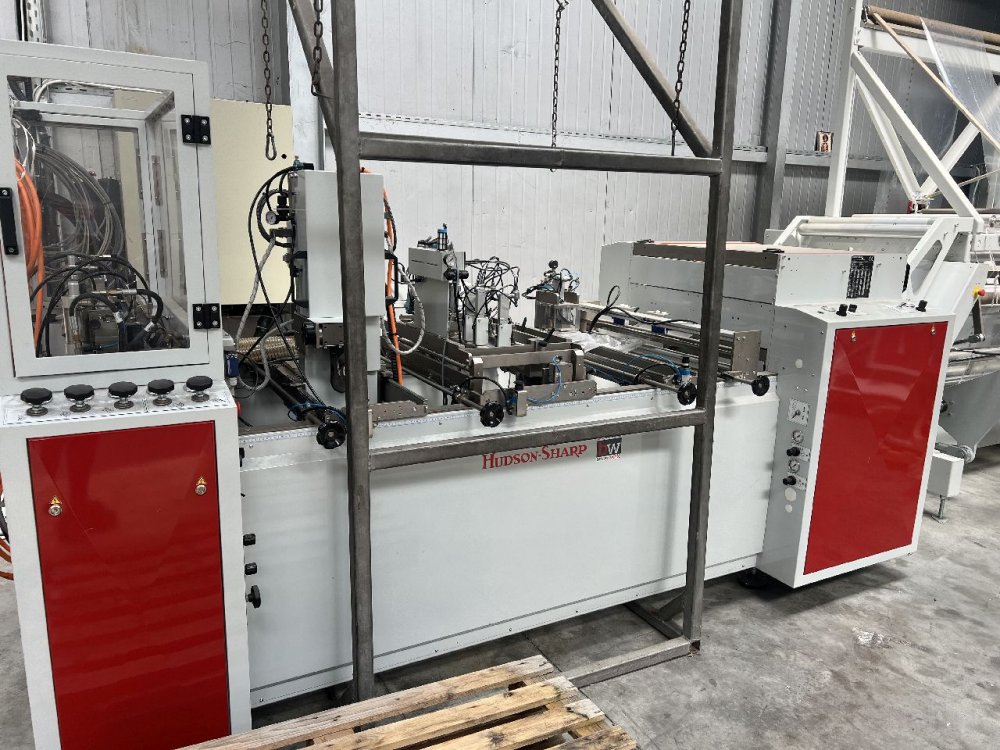

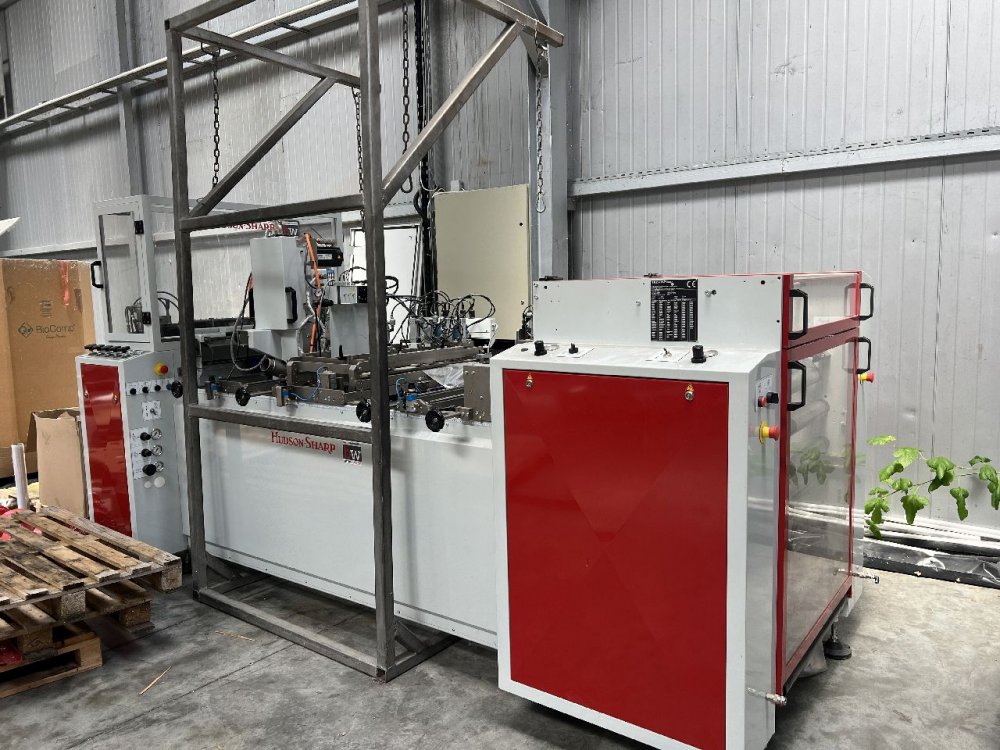

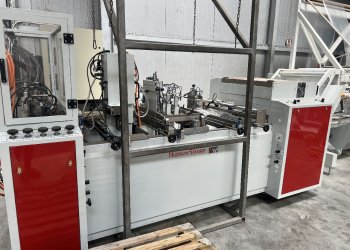

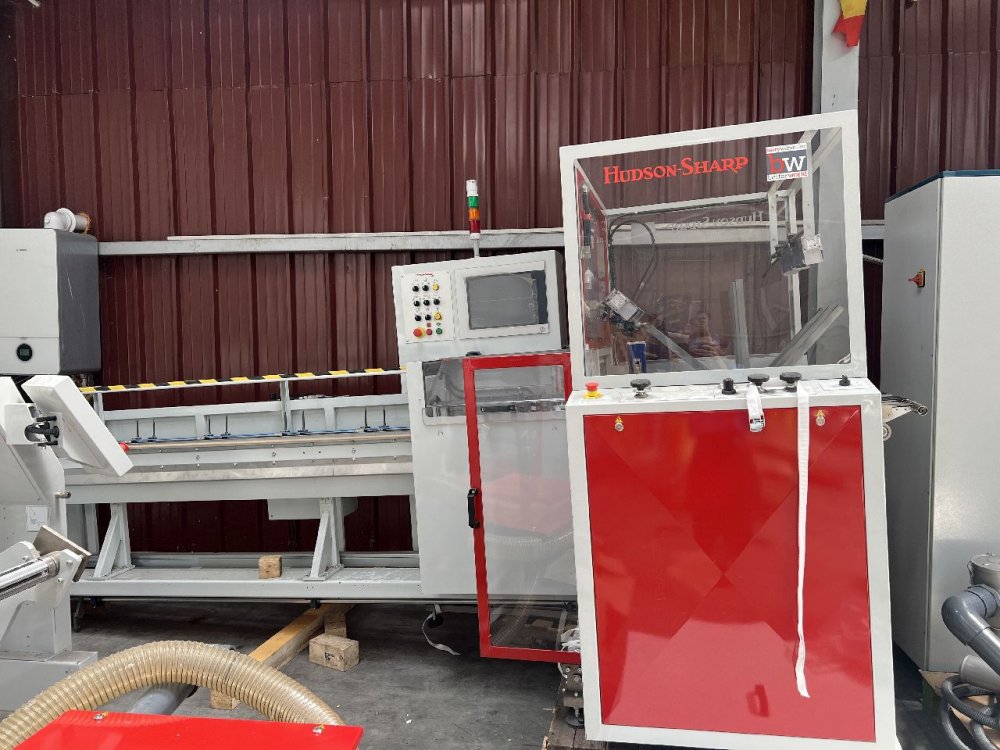

HUDSON SHARP 5750 W Machines a sac pour film Wicketers // Film bag making // Bag making // Équipement d'occasion // Tecno Converting 2000 S.r.l.

Photo Gallerie

Code Machine: FI548
Fabricant: HUDSON SHARP
Modello: 5750 W
Année: 2019
Type of delivery: Wicketer)
Type of sealing/bags: Side weld
Type of bags: Wicketers
Working width (mm): 1600
Bag length: 150 â€“ 710mm
Bag width: 110 â€“ 390mm
Cycle / min: 450CPM

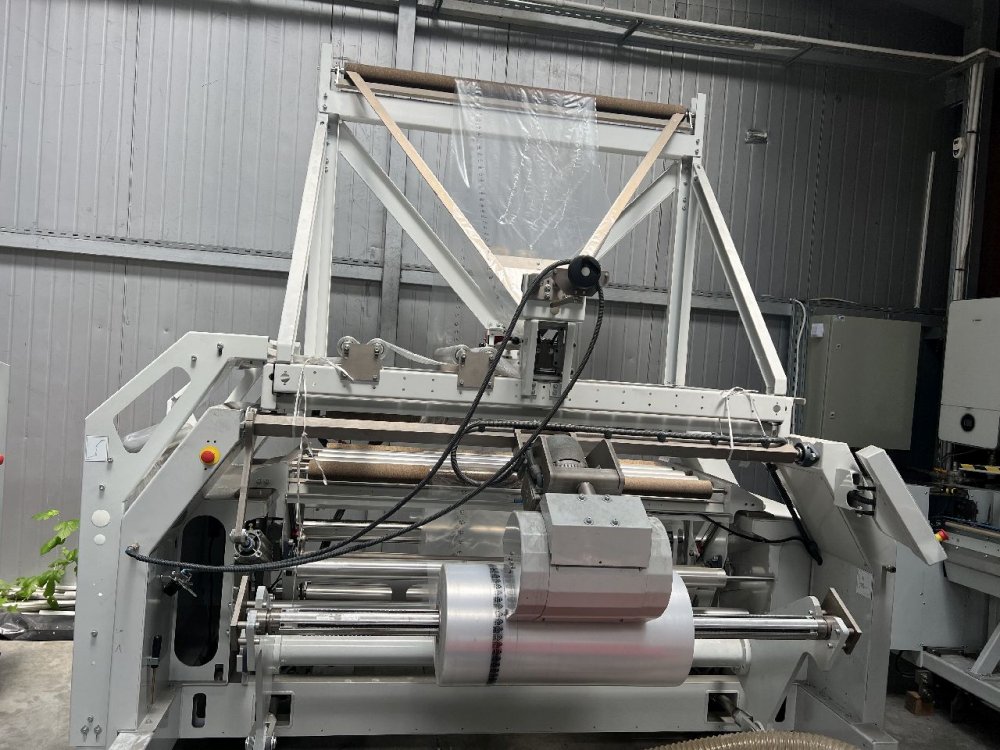

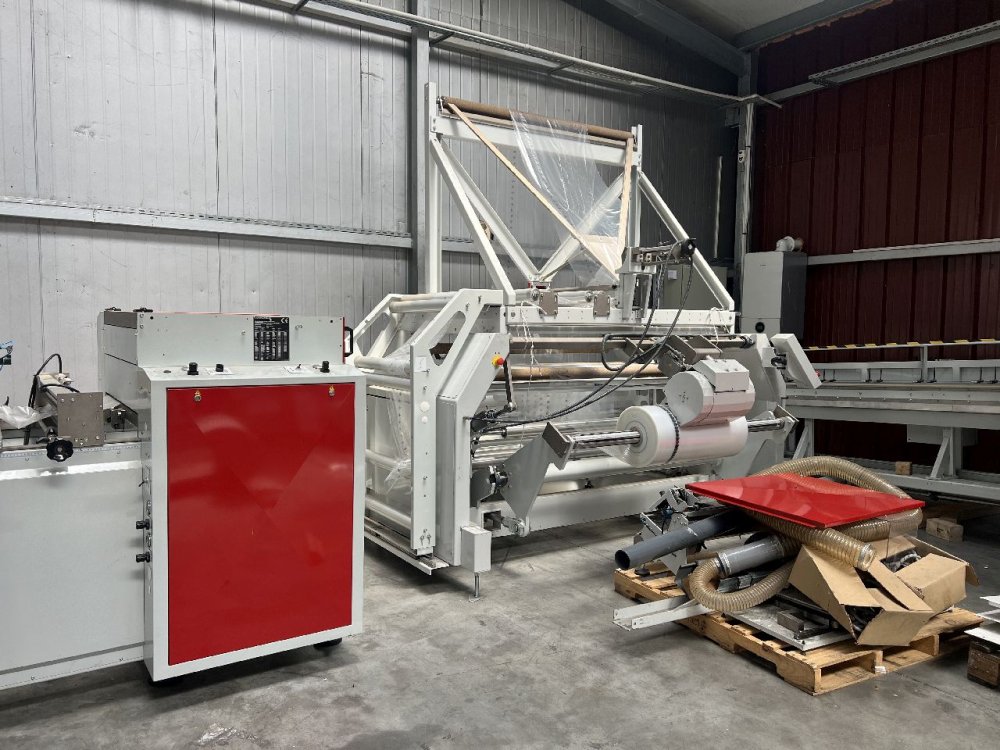

Unwinder: Surface Driven Single Roll Reel Lift Unwind 1.600mm Max. weight: 645kg (at 1.000mm reel width) Compact Folding Triangle 1.600mm with motorized folding board positioning and automatic Positioning of Folding Triangle
Note: -The machine is practically new, has only 11 hours of production and operating -Edge Guiding System 1.600mm -Longitudinal Rotary Perforator On The Lip -Servo driven main drive motor reducer (AC Servo) -Easy threading infeed with 4m dancer capacity -Servo top & bottom driven air loaded draw rolls (AC servo) Side weld straight sealbar head, complete with seal roll, heat shielded, radius 0.020". For different materials or gauges an extra seal head might be required (not included in present scope of supply -Servo driven indexing seal roll -Servo driven seal head motion for constant seal time – speed independent with easy access of seal drive mechanism -Static eliminators on both sides of the film before draw rolls -Vacuum pick-off with 2 x 8 wicket arms – pressure blow-off -Two level Static Loader on lip and the gusset of the bag -Servo Driven Square Bottom Sealer -Conversion Kit For Square Bottom Sealer into a Round Bottom Sealer

Code Machine	FI548
Fabricant	HUDSON SHARP
Modello	5750 W
Année	2019
Type of delivery	Wicketer)
Type of sealing/bags	Side weld
Type of bags	Wicketers
Working width (mm)	1600
Bag length	150 â€“ 710mm
Bag width	110 â€“ 390mm
Cycle / min	450CPM
Unwinder	Surface Driven Single Roll Reel Lift Unwind 1.600mm Max. weight: 645kg (at 1.000mm reel width) Compact Folding Triangle 1.600mm with motorized folding board positioning and automatic Positioning of Folding Triangle
Note	-The machine is practically new, has only 11 hours of production and operating -Edge Guiding System 1.600mm -Longitudinal Rotary Perforator On The Lip -Servo driven main drive motor reducer (AC Servo) -Easy threading infeed with 4m dancer capacity -Servo top & bottom driven air loaded draw rolls (AC servo) Side weld straight sealbar head, complete with seal roll, heat shielded, radius 0.020". For different materials or gauges an extra seal head might be required (not included in present scope of supply -Servo driven indexing seal roll -Servo driven seal head motion for constant seal time – speed independent with easy access of seal drive mechanism -Static eliminators on both sides of the film before draw rolls -Vacuum pick-off with 2 x 8 wicket arms – pressure blow-off -Two level Static Loader on lip and the gusset of the bag -Servo Driven Square Bottom Sealer -Conversion Kit For Square Bottom Sealer into a Round Bottom Sealer
