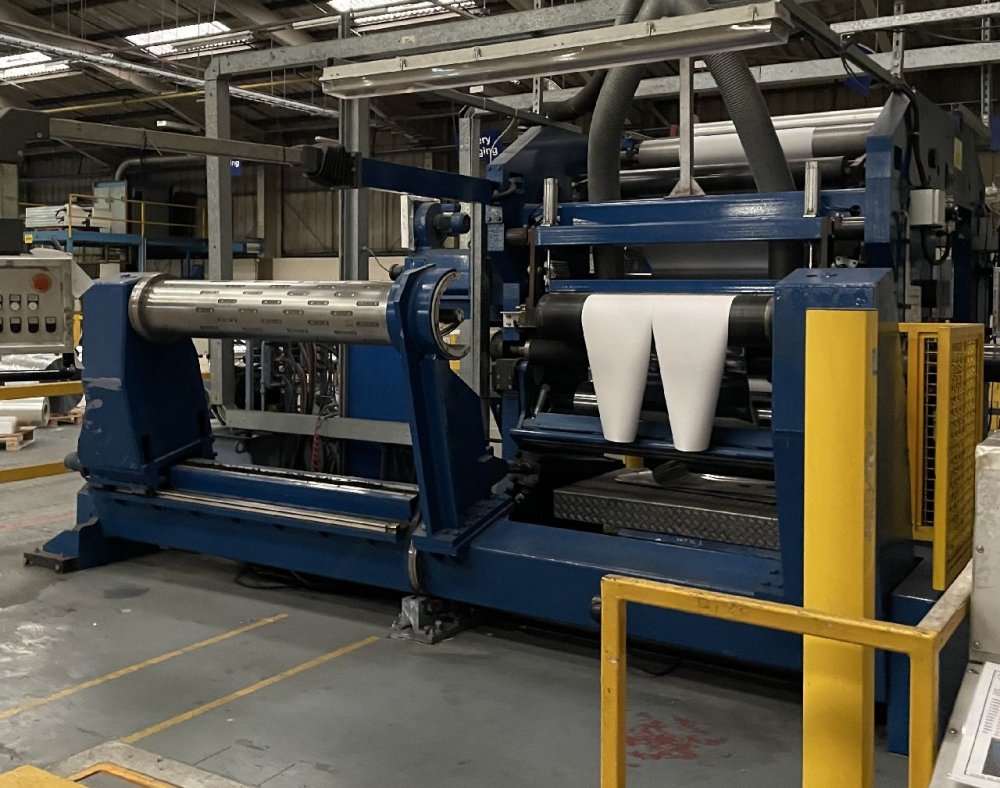

- Code Machine
- SR607
- Fabricant
- WICKELTECHNIK
- Année
- 2000
- Working width (mm)
- 1300
- Materials
- Paper and Board 40-700gsm
- Unwinder type
- Shaftless, driven, reel lift up from floor. cores 152,302,305mm
- Max diameter reel unwinder
- 1800
- Rewinder type
- Single
- Max diameter reel rewinder
- 1800
- Rewinder description
- Single shaft winder, driven shaft extraction and new core insertion system, cores 302 and 502mm diameter

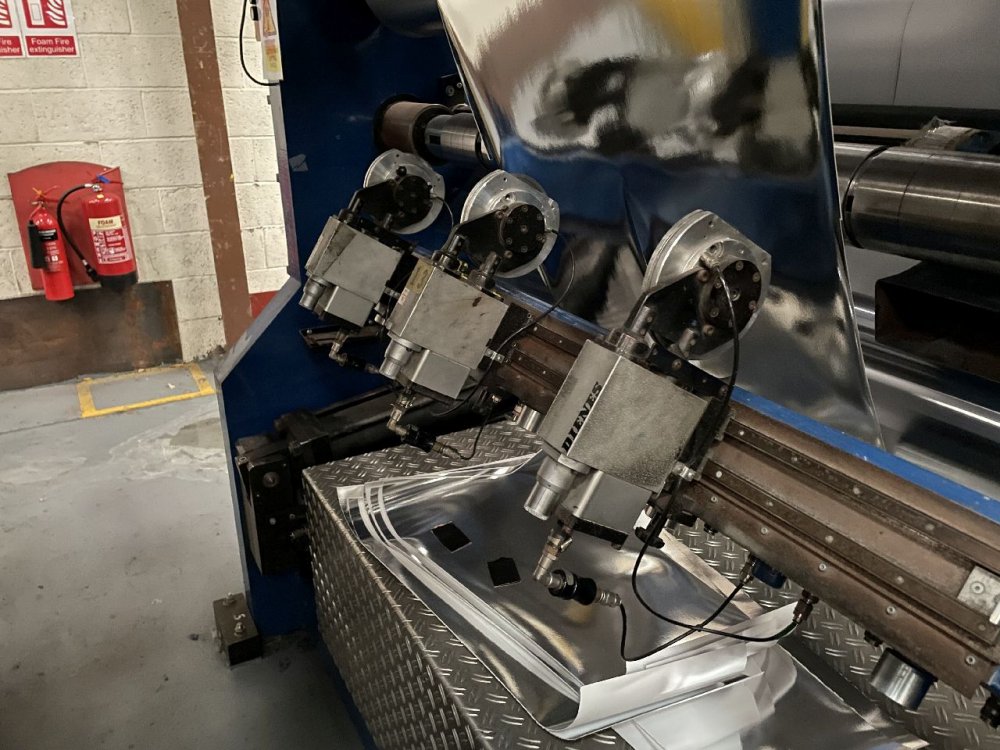

- Knives
- 3 x rotary knives
| Code Machine | SR607 |
| Fabricant | WICKELTECHNIK |
| Année | 2000 |
| Working width (mm) | 1300 |
| Materials | Paper and Board 40-700gsm |
| Unwinder type | Shaftless, driven, reel lift up from floor. cores 152,302,305mm |
| Max diameter reel unwinder | 1800 |
| Rewinder type | Single |
| Max diameter reel rewinder | 1800 |
| Rewinder description | Single shaft winder, driven shaft extraction and new core insertion system, cores 302 and 502mm diameter |
| Knives | 3 x rotary knives |
