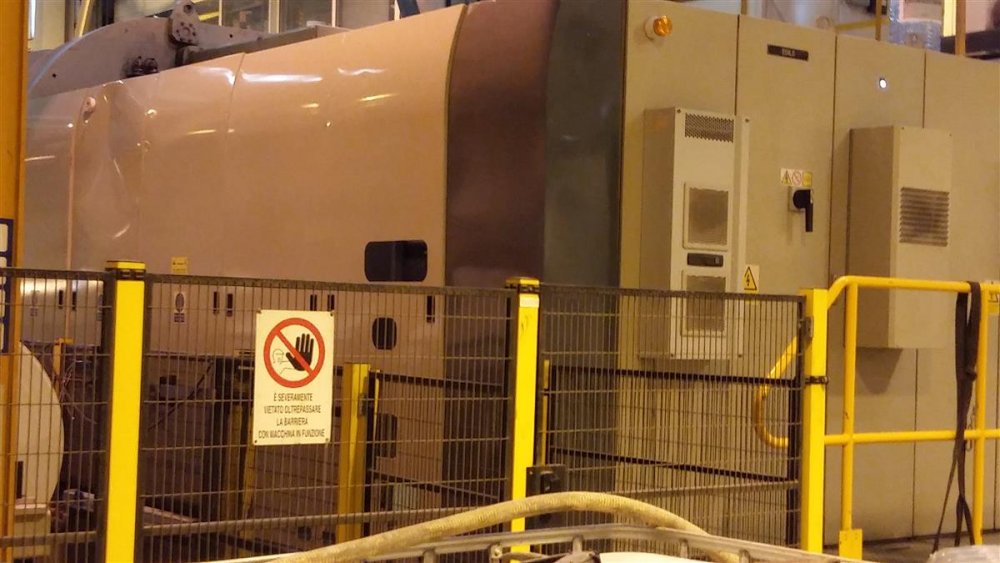

- Code Machine
- ME50
- Fabricant
- GENERAL VACUUM EQUIPMENT
- Modello
- K5000
- Année
- 2005
- Overhaul/renovation
- renovation of electric supply evaoration area, and al wire supply system
- Working width (mm)
- 2480
- Materials
- bopp, bopet , cpp, from 15 to 70 microns
- Speed
- 1000 m/ min

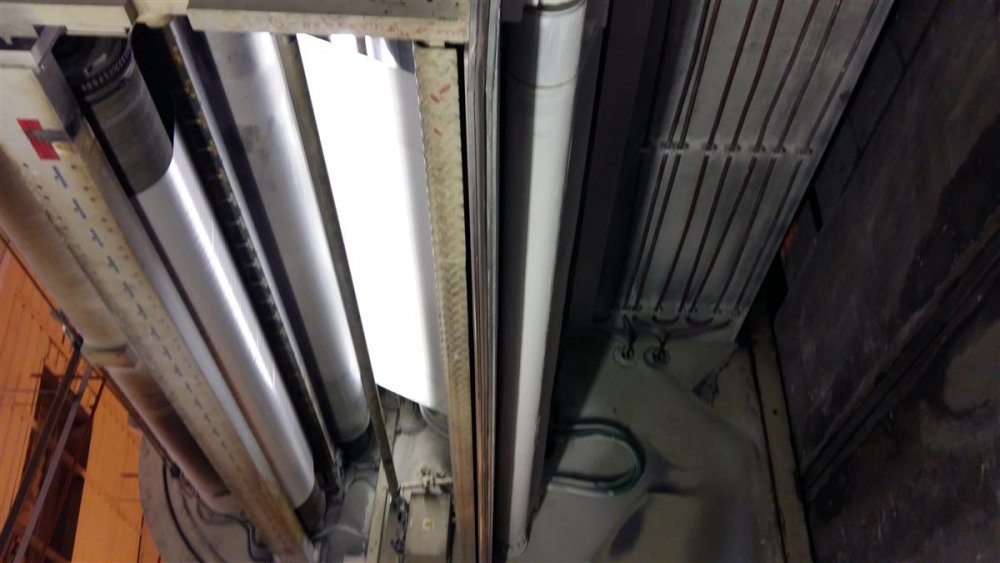

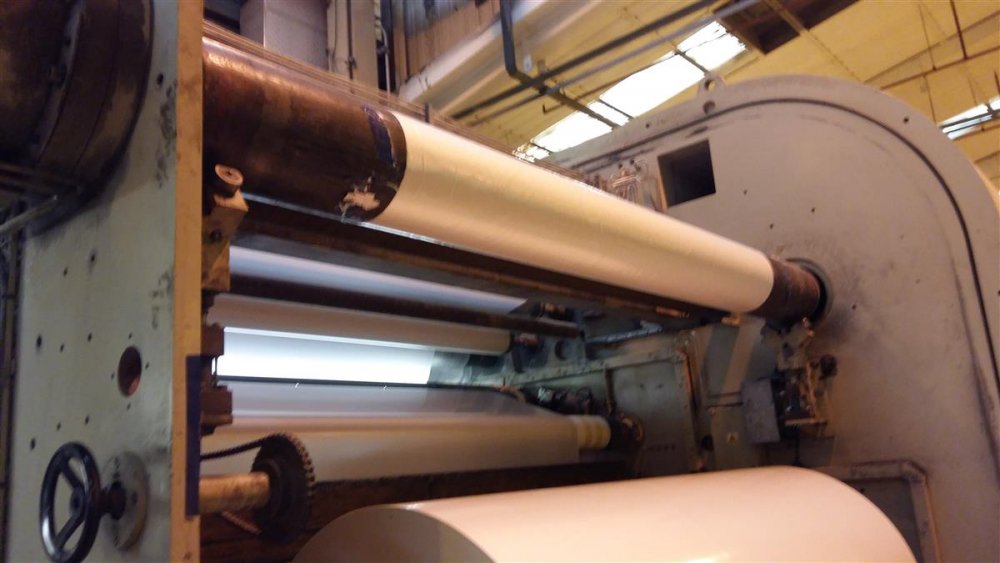

- Max diameter reel unwinder
- 1200 mm
- Max diameter reel rewinder
- 1200 mm

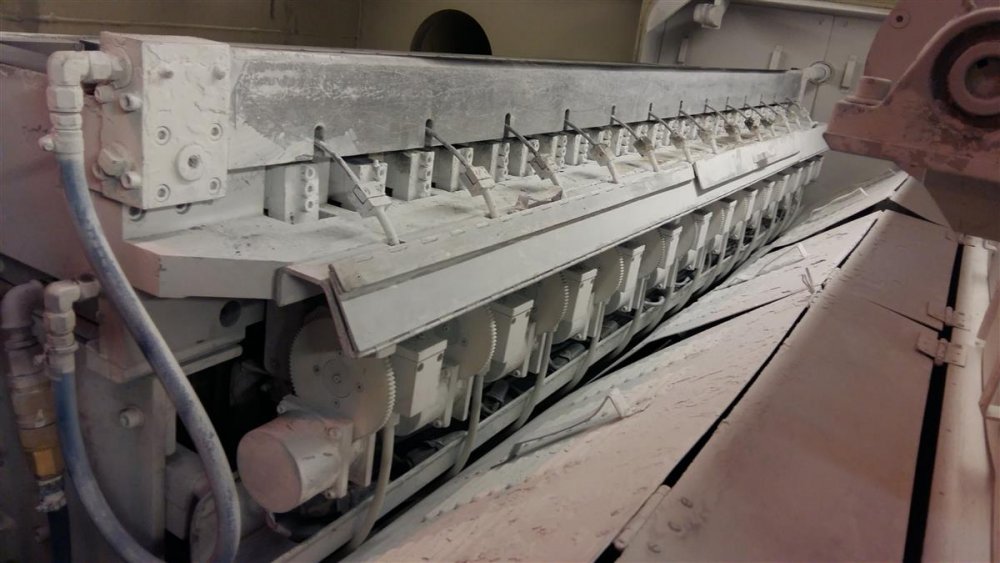

- Evapouration Boots
- 26 dimension 125 x 40 x 10 mm- sintered ceramic
- Pumping system
- Coating section : 2 rotary vane pumps Leybold -630 cumt/h , 1 Booster pump Aetzen 5.600 cumt/h, 4 high vacuum oil diffusion pumps Varian HS 17.500 liter/ sec located exactly centrally below the evaporation boats . winding section 2 rotary vane pumps Leybold , 2 booster pumps Aerzen
- Plasma treatment
- yes, upgraded 2013
- Polycold
- yes 2
- Note
- Possible Film Thickness - 10 microns - 50 microns Coating weight (g / sqm) - 0.5 - 3 O.D. 2470 mm coating area , 10mm edge masking 2 edges min coating width 1025mm coating thickness range 0,5 - 3,0 OD cooling drum diemeter: 500mm OPTION Slitter Atlas
| Code Machine | ME50 |
| Fabricant | GENERAL VACUUM EQUIPMENT |
| Modello | K5000 |
| Année | 2005 |
| Overhaul/renovation | renovation of electric supply evaoration area, and al wire supply system |
| Working width (mm) | 2480 |
| Materials | bopp, bopet , cpp, from 15 to 70 microns |
| Speed | 1000 m/ min |
| Max diameter reel unwinder | 1200 mm |
| Max diameter reel rewinder | 1200 mm |
| Evapouration Boots | 26 dimension 125 x 40 x 10 mm- sintered ceramic |
| Pumping system | Coating section : 2 rotary vane pumps Leybold -630 cumt/h , 1 Booster pump Aetzen 5.600 cumt/h, 4 high vacuum oil diffusion pumps Varian HS 17.500 liter/ sec located exactly centrally below the evaporation boats . winding section 2 rotary vane pumps Leybold , 2 booster pumps Aerzen |
| Plasma treatment | yes, upgraded 2013 |
| Polycold | yes 2 |
| Note | Possible Film Thickness - 10 microns - 50 microns Coating weight (g / sqm) - 0.5 - 3 O.D. 2470 mm coating area , 10mm edge masking 2 edges min coating width 1025mm coating thickness range 0,5 - 3,0 OD cooling drum diemeter: 500mm OPTION Slitter Atlas |
