- Code Machine
- LA445
- Fabricant
- NORDMECCANICA
- Modello
- SUPERCOMBI 4000
- Année
- 2018
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1315
- Materials
- BOPP, PET,CPP, Al foil
- Speed
- 450m/min
- First unwinder type
- Shaftless driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shafless driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless driven
- Max diameter reel rewinder
- 1000
- Coating unit
- Combi with Solventless trolley and gravure trolley

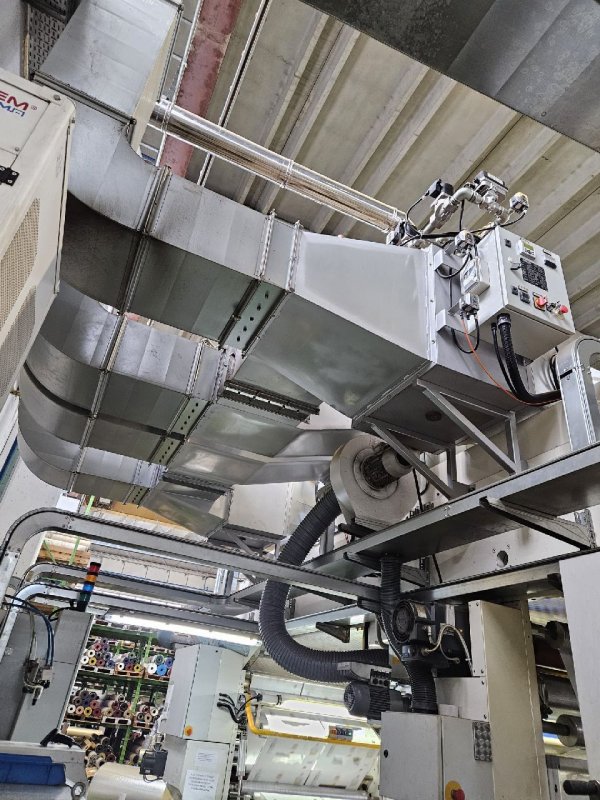

- Drying
- 2 zones - 4 fans - Gas burner
- Register controll
- yes - for cold seal

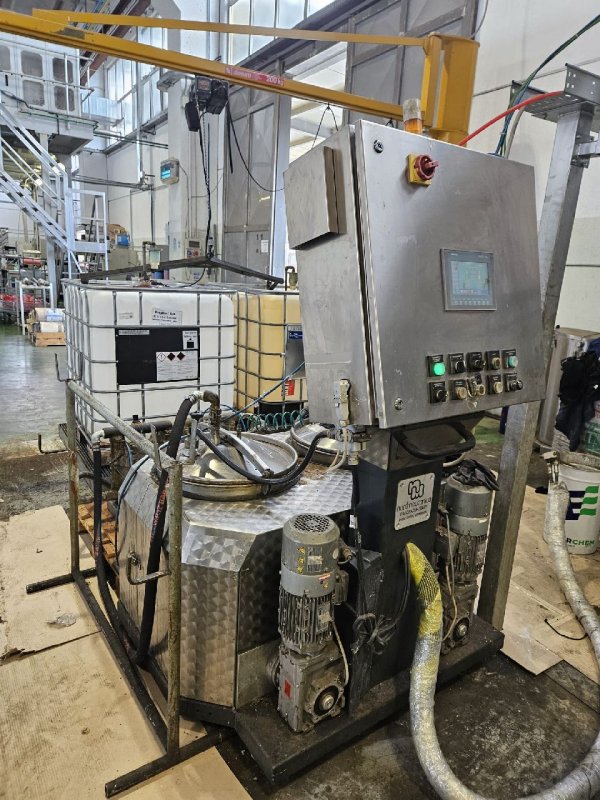

- pumping mixing unit
- yes
- Corona treatment
- yes
- Note
- equipped with both solventless trolley and with rotogravure trolley for solvent based . Register control for cold seal application
| Code Machine | LA445 |
| Fabricant | NORDMECCANICA |
| Modello | SUPERCOMBI 4000 |
| Année | 2018 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1315 |
| Materials | BOPP, PET,CPP, Al foil |
| Speed | 450m/min |
| First unwinder type | Shaftless driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shafless driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Shaftless driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | Combi with Solventless trolley and gravure trolley |
| Drying | 2 zones - 4 fans - Gas burner |
| Register controll | yes - for cold seal |
| pumping mixing unit | yes |
| Corona treatment | yes |
| Note | equipped with both solventless trolley and with rotogravure trolley for solvent based . Register control for cold seal application |
