- Code Machine
- EC32
- Fabricant
- HAN YOUNG
- Modello
- Extrusion lamination
- Année
- 2005
- Width (mm)
- 2200
- Coating/lamination units
- 1
- Coating/lamination unit 1 description

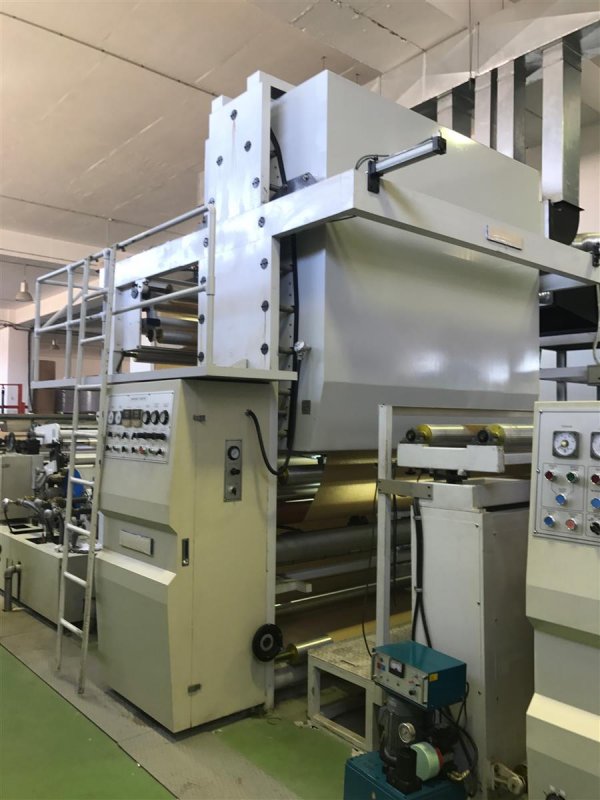

- Rotogravure coating unit: - 2 drying hoods 2,5m length - drying with 2 x oil heaters - Each hood with dedicated heater and blower
- Coating/lamination unit 2 description

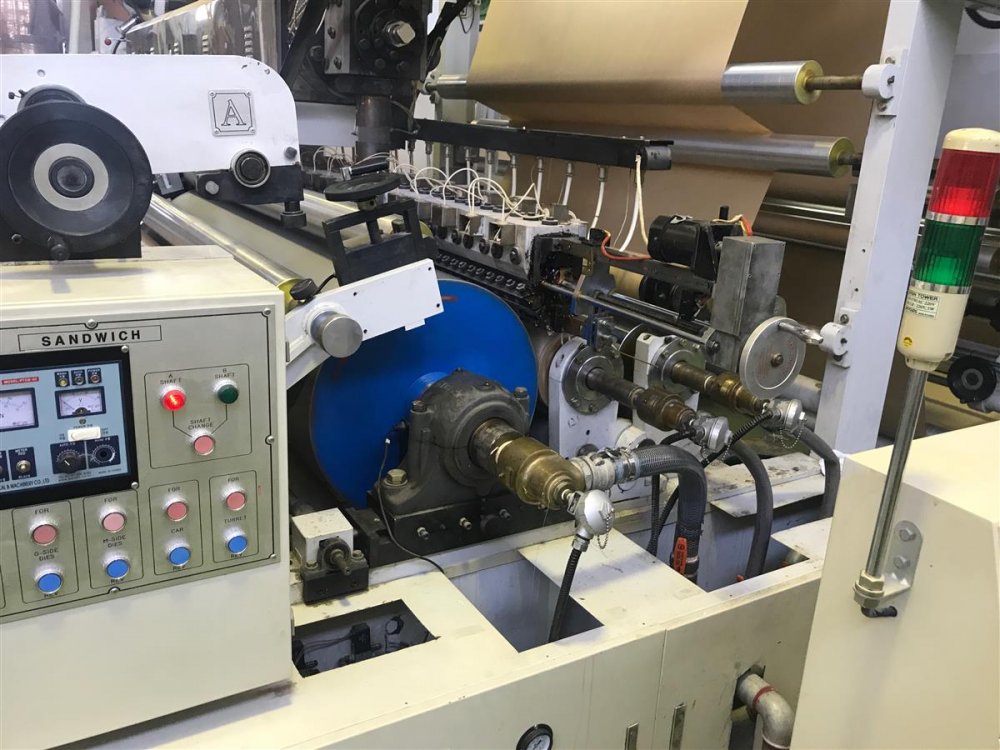

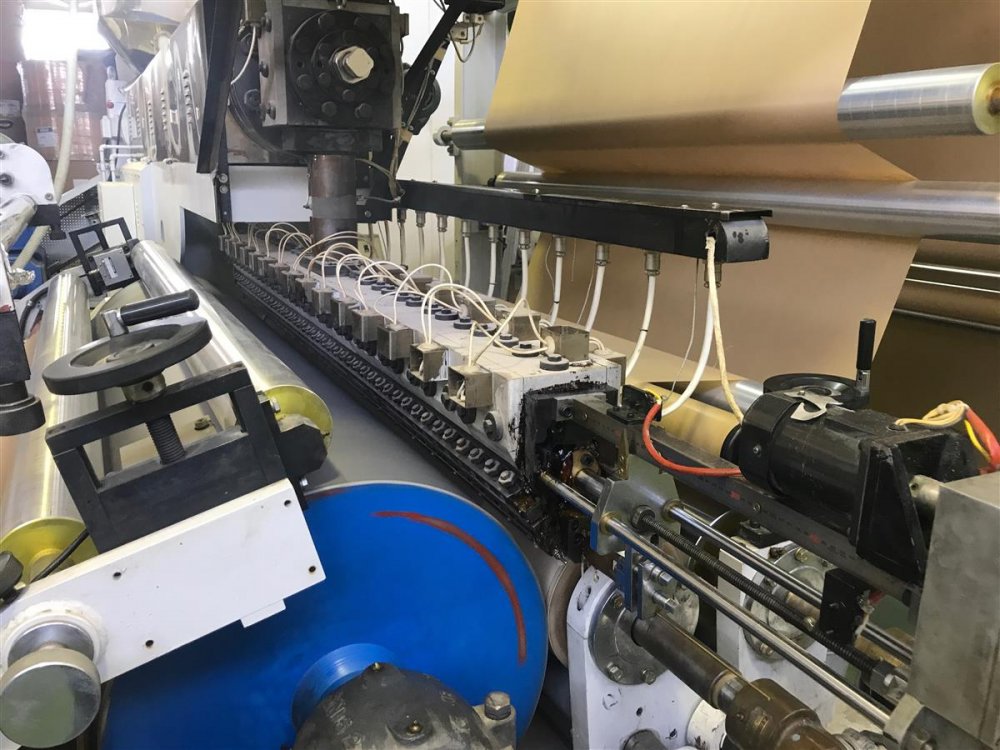

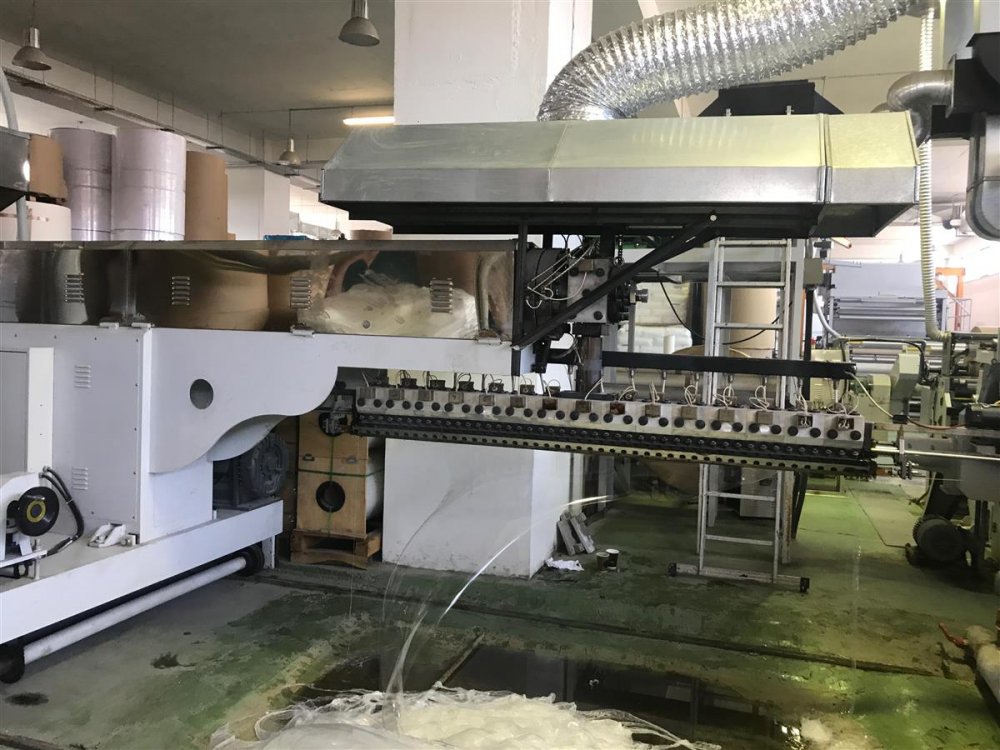

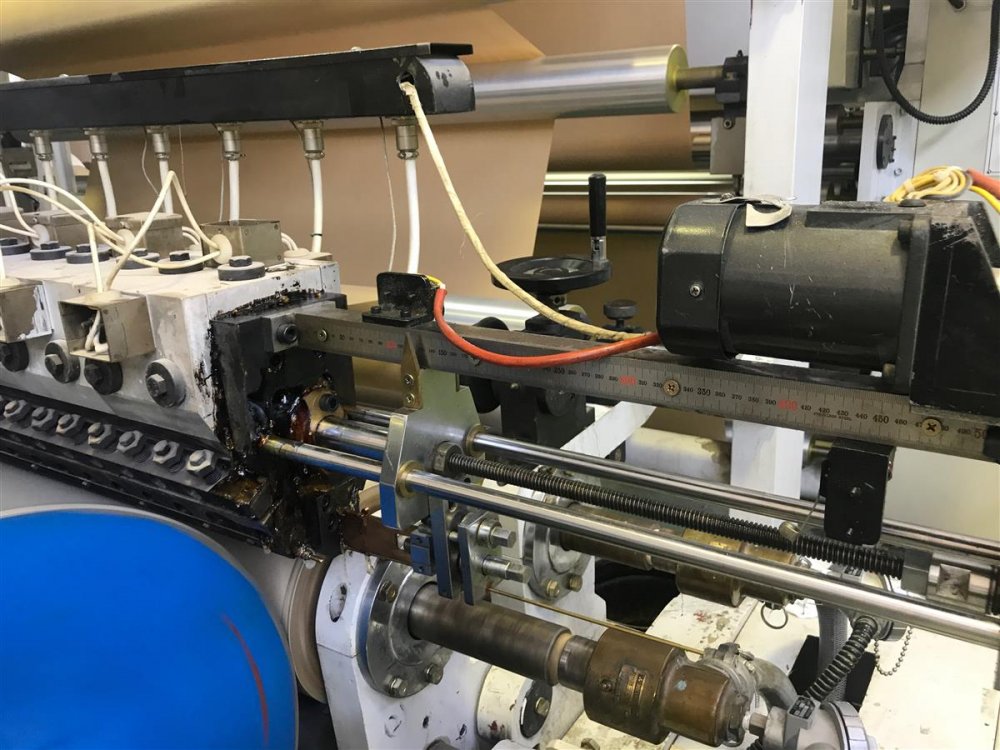

- Extrusion lamination unit - Volumetric doser - Extruder 90mm diameter - Extrusion die 2,2 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter - Lamination nip
- Treatment
- 2 corona treater
- Primary unwinder description
- Turret Automatic; diameter min/max 1000mm
- Secondary unwinder description
- single position for Alu foil; diameter min/max 1000mm
- Rewinder description
- Turret Automatic; diameter min/max 1000mm
- Speed
- 200
- Note

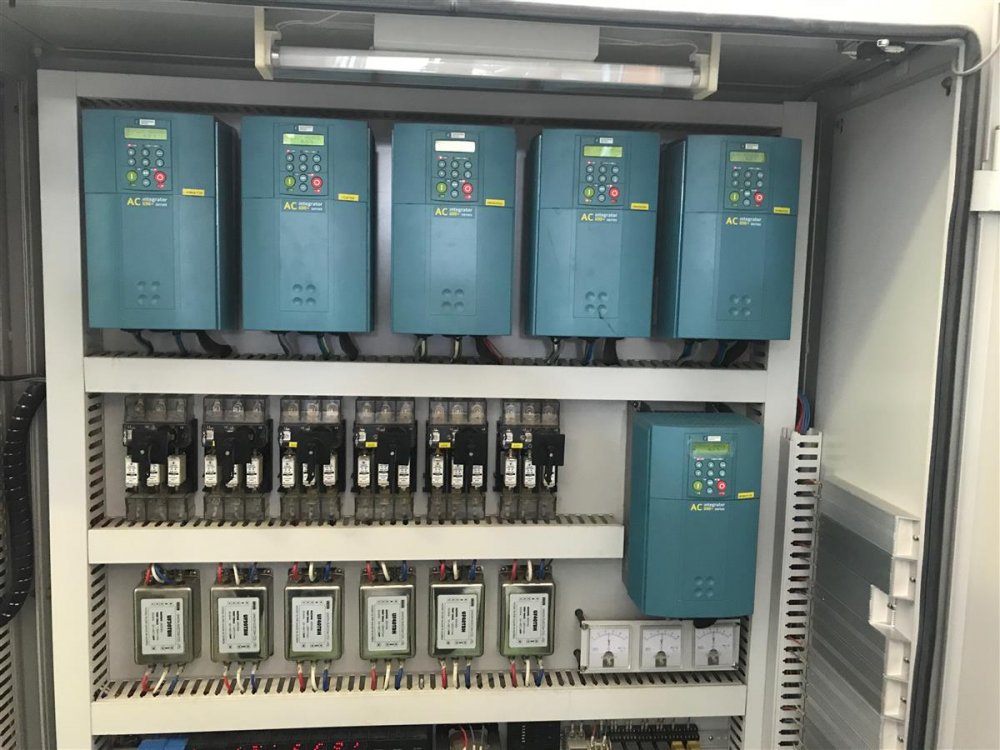

- Single 2200 with one extruder and two coronas Can coat EVA, min and max micron Coating done - 7gsm to 25gsm paper up to 150 gsm / ?lm up to 250mic Electrical: 3p / 400V +/-10% / 50hZ / 385 Kw
| Code Machine | EC32 |
| Fabricant | HAN YOUNG |
| Modello | Extrusion lamination |
| Année | 2005 |
| Width (mm) | 2200 |
| Coating/lamination units | 1 |
| Coating/lamination unit 1 description | Rotogravure coating unit: - 2 drying hoods 2,5m length - drying with 2 x oil heaters - Each hood with dedicated heater and blower |
| Coating/lamination unit 2 description | Extrusion lamination unit - Volumetric doser - Extruder 90mm diameter - Extrusion die 2,2 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter - Lamination nip |
| Treatment | 2 corona treater |
| Primary unwinder description | Turret Automatic; diameter min/max 1000mm |
| Secondary unwinder description | single position for Alu foil; diameter min/max 1000mm |
| Rewinder description | Turret Automatic; diameter min/max 1000mm |
| Speed | 200 |
| Note | Single 2200 with one extruder and two coronas Can coat EVA, min and max micron Coating done - 7gsm to 25gsm paper up to 150 gsm / ?lm up to 250mic Electrical: 3p / 400V +/-10% / 50hZ / 385 Kw |
