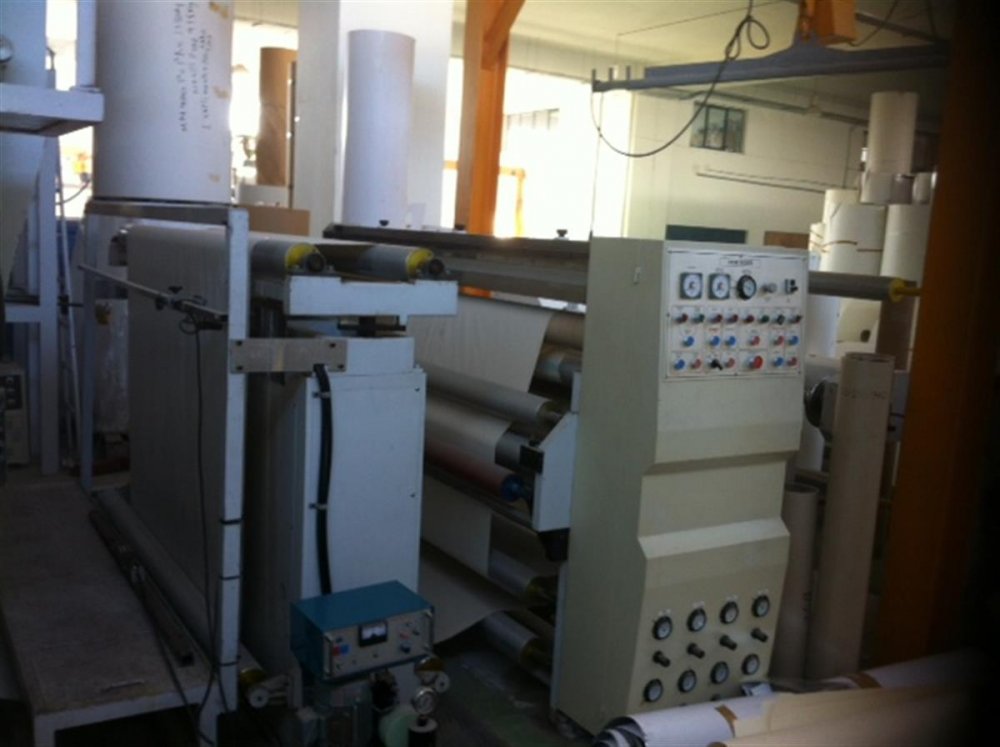

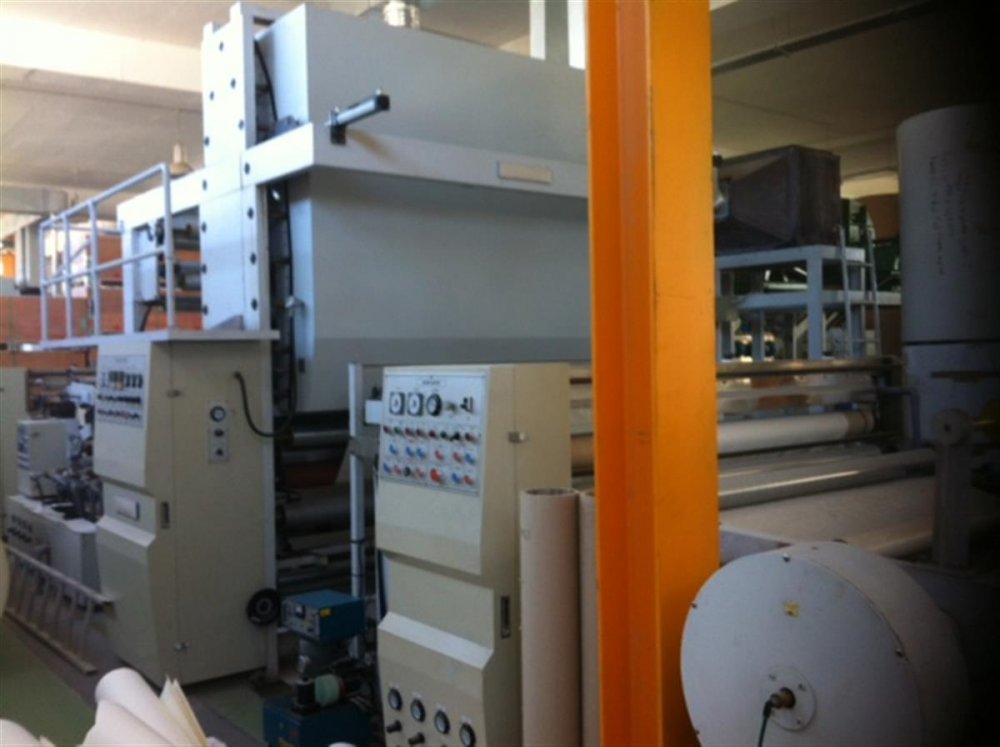

- Code Machine
- EC31
- Fabricant
- HAN YOUNG
- Modello
- extrusion lamination
- Année
- 2001
- Width (mm)
- 1500
- Coating/lamination units
- 1 rotogravure primer , 1 extrusion coating unit, 1extrusion lamination unitt
- Coating/lamination unit 1 description
- Rotogravure coating unit: - 2 drying hoods 2,5m length - drying with 2 x oil heaters - Each hood with dedicated heater and blower
- Coating/lamination unit 2 description
- Extrusion coating unit : - Volumetric doser - Extruder 90mm diameter - Extrusion die 1,6 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter
- Coating/lamination unit 3 description
- Extrusion coating unit : - Volumetric doser - Extruder 90mm diameter - Extrusion die 1,6 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter. With lamination
- Treatment
- 2 corona treatments Mero
- Primary unwinder description
- Turret max diam 1000mm
- Secondary unwinder description
- Double shaft max diam 1000mm
- 3rd unwinder description
- Turret max diam 1000mm
- Rewinder description
- turret non stop
- Speed
- 200mpm
- Product structure / Materials
- paper up to 250 gsm film up to 250 micron
| Code Machine | EC31 |
| Fabricant | HAN YOUNG |
| Modello | extrusion lamination |
| Année | 2001 |
| Width (mm) | 1500 |
| Coating/lamination units | 1 rotogravure primer , 1 extrusion coating unit, 1extrusion lamination unitt |
| Coating/lamination unit 1 description | Rotogravure coating unit: - 2 drying hoods 2,5m length - drying with 2 x oil heaters - Each hood with dedicated heater and blower |
| Coating/lamination unit 2 description | Extrusion coating unit : - Volumetric doser - Extruder 90mm diameter - Extrusion die 1,6 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter |
| Coating/lamination unit 3 description | Extrusion coating unit : - Volumetric doser - Extruder 90mm diameter - Extrusion die 1,6 m width with internal deckling for withs regulation 500mm on each side (tot 1000mm) - Chill roller 700mm diameter. With lamination |
| Treatment | 2 corona treatments Mero |
| Primary unwinder description | Turret max diam 1000mm |
| Secondary unwinder description | Double shaft max diam 1000mm |
| 3rd unwinder description | Turret max diam 1000mm |
| Rewinder description | turret non stop |
| Speed | 200mpm |
| Product structure / Materials | paper up to 250 gsm film up to 250 micron |
