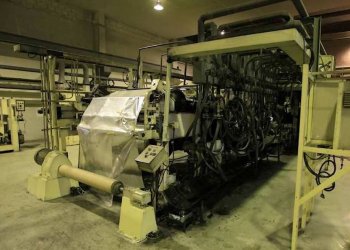

1 couches BRUCKNER - CELLIER Machine de extrusion de film BOPP / BOPET // BOPP BOPET // Film extrusion lines // Équipement d'occasion // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallerie

Code Machine: BO27
Fabricant: BRUCKNER - CELLIER
Année: 1989
Number of layers: 1
Material: BOPET
Output: 600kg/h
Width (mm): 4200
Extruder 1 Description: Davis Standard type DSPA model 54-IN-45T . Diameter 114.. (4,1/2 inch ). Capacity 600kg/h. Power 92kw to 1450 rpm. 1 filter brand BEMATEC .
Head description: Autoflex IV-H-75
MDO description: Speed max : 150m/min (mechanical) ; MDO1=16 kw at 1850 RPM (motor) MDO1 =42.5 kw at 1925 RPM (motor)
TDO description: Speed max : 150 m/min (mechanical) ; Motor =65 kw at 1700 RPM
Pull roll unit: Speed max : 150 m/min (mechanical) Motor 5.3 kw at 1760 RPM (new 16.2 Kw at 2730 RPM )
Rewinder description: Speed max 150m/min . Motor 6.5 kw at 1026 RPM. Die core 310 mm . Die core max 800mm.
Slitter: Model Atlas
Note: Complete with Atlas Slitter. Melt line : pressure 280 bars, thermal fluid pressure of 6 bars, temperature 300 C . Melt pump : maxim. alarm pressure of 350 bars. Brand LAMY FEINPRUF type 255. Pressure on suction sude 30-100 bars ; Pressure output side 250 bars. Operation 24h/24. Motor power 10kw to 1425 rpm.Rotating direction right. Main filter 280 bars.Temperature 300C.Max. number of discs 50. Hot boiler brand BABCOCK . Gear box trade mark FLENDER. Pump frame.

Code Machine	BO27
Fabricant	BRUCKNER - CELLIER
Année	1989
Number of layers	1
Material	BOPET
Output	600kg/h
Width (mm)	4200
Extruder 1 Description	Davis Standard type DSPA model 54-IN-45T . Diameter 114.. (4,1/2 inch ). Capacity 600kg/h. Power 92kw to 1450 rpm. 1 filter brand BEMATEC .
Head description	Autoflex IV-H-75
MDO description	Speed max : 150m/min (mechanical) ; MDO1=16 kw at 1850 RPM (motor) MDO1 =42.5 kw at 1925 RPM (motor)
TDO description	Speed max : 150 m/min (mechanical) ; Motor =65 kw at 1700 RPM
Pull roll unit	Speed max : 150 m/min (mechanical) Motor 5.3 kw at 1760 RPM (new 16.2 Kw at 2730 RPM )
Rewinder description	Speed max 150m/min . Motor 6.5 kw at 1026 RPM. Die core 310 mm . Die core max 800mm.
Slitter	Model Atlas
Note	Complete with Atlas Slitter. Melt line : pressure 280 bars, thermal fluid pressure of 6 bars, temperature 300 C . Melt pump : maxim. alarm pressure of 350 bars. Brand LAMY FEINPRUF type 255. Pressure on suction sude 30-100 bars ; Pressure output side 250 bars. Operation 24h/24. Motor power 10kw to 1425 rpm.Rotating direction right. Main filter 280 bars.Temperature 300C.Max. number of discs 50. Hot boiler brand BABCOCK . Gear box trade mark FLENDER. Pump frame.
