- Code Machine
- CA171
- Fabricant
- MACCHI
- Année
- 2012
- Number of layers
- 5
- Film structure
- A-B-C-D-E
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- 600
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 65mm
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 100mm
- Description 2
- Gravimetric dosing unit
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 100mm
- Description 3
- Gravimetric dosing unit 4 components
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 100mm
- Description 4
- Gravimetric dosing unit
- Extruder 5 Layer ref:
- E
- Screw diam 5
- 65mm
- Description 5
- Gravimetric dosing unit 4 components
- Head description
- Die Cloren automatic

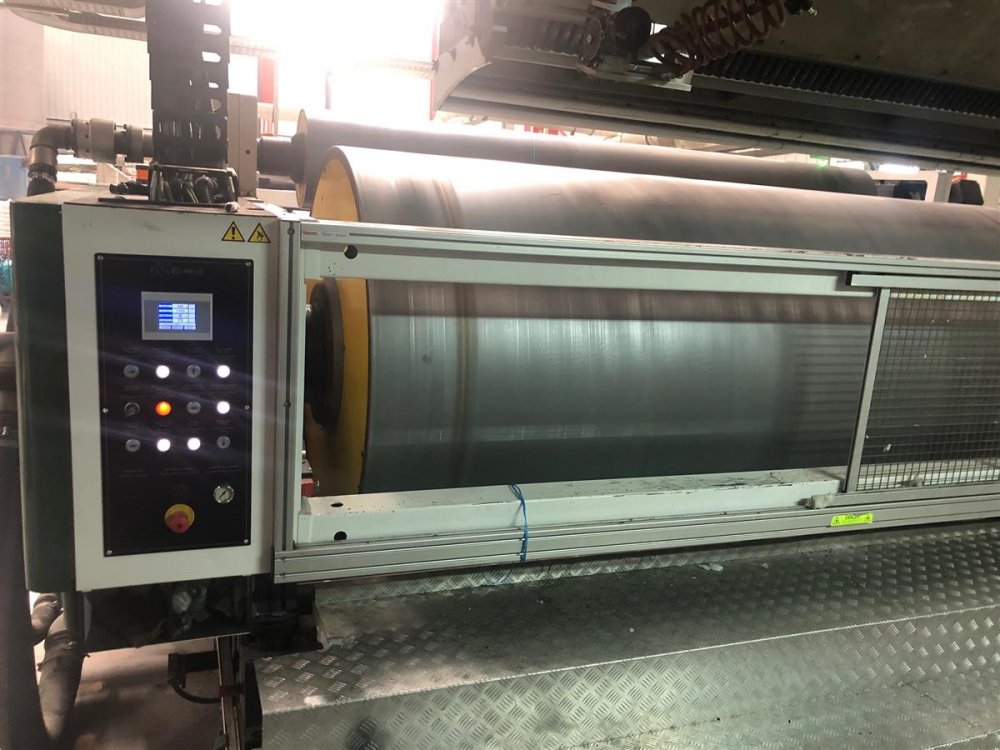

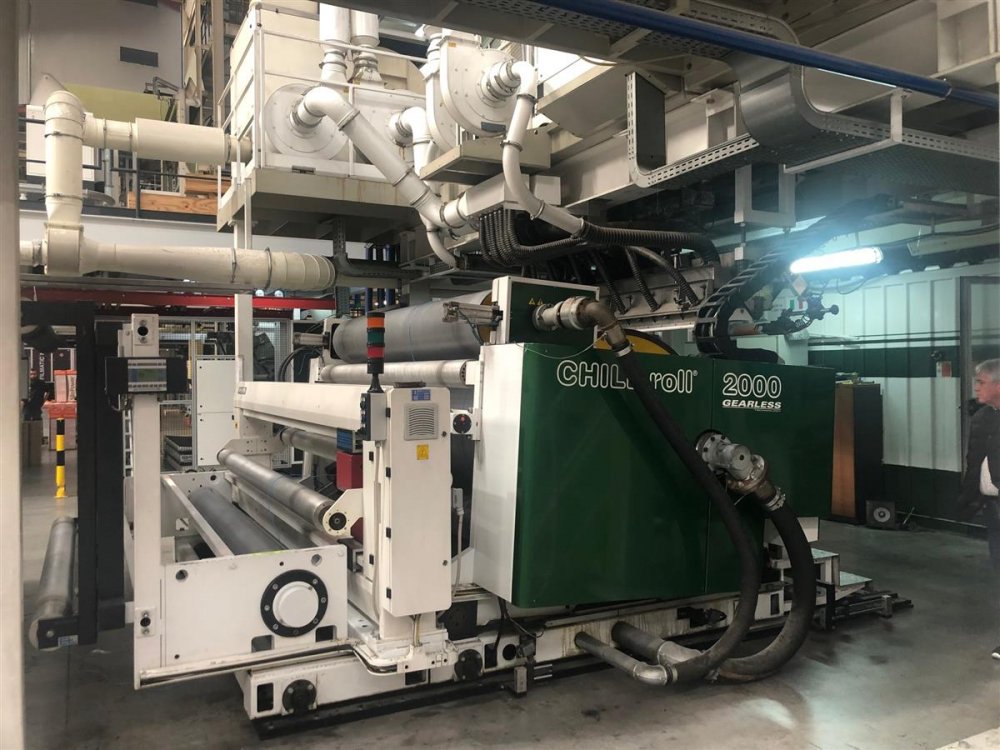

- Chill roll unit
- diam 1200mm
- Thickness controll system
- Electronic System

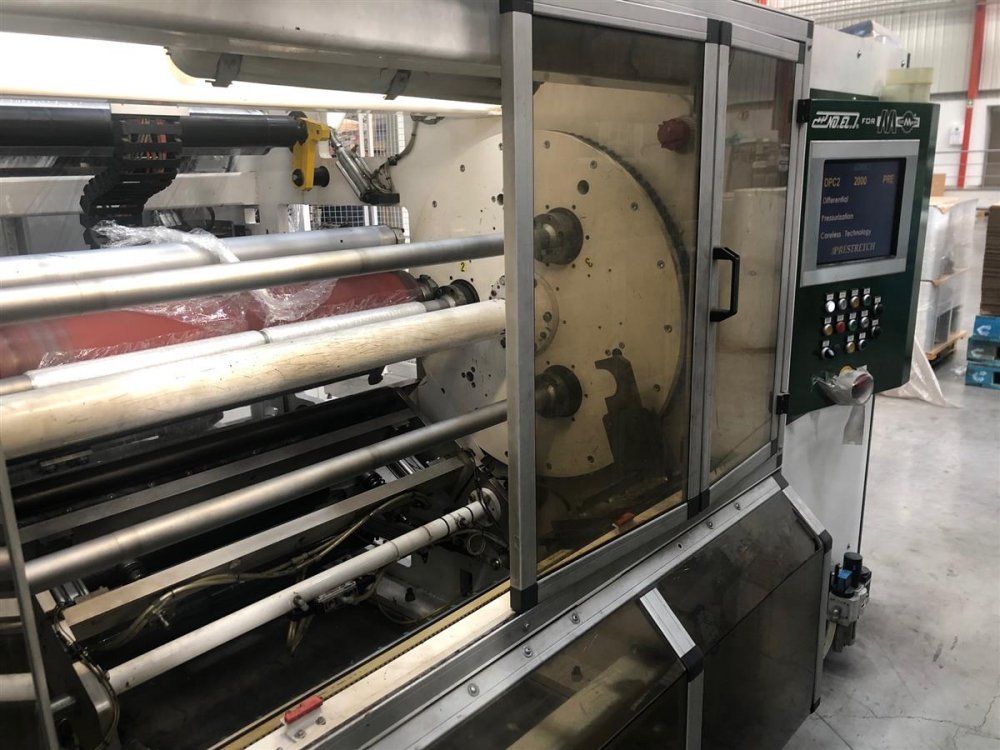

- Rewinder description
- 2 winders 1m wide turret type Macchi & Noel ; Reels type :pre-stretch reels; hand reels;machine reels,coreless hand reels
- Note
- Oscillating device
| Code Machine | CA171 |
| Fabricant | MACCHI |
| Année | 2012 |
| Number of layers | 5 |
| Film structure | A-B-C-D-E |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Speed (m/min) | 600 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 65mm |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 100mm |
| Description 2 | Gravimetric dosing unit |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 100mm |
| Description 3 | Gravimetric dosing unit 4 components |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 100mm |
| Description 4 | Gravimetric dosing unit |
| Extruder 5 Layer ref: | E |
| Screw diam 5 | 65mm |
| Description 5 | Gravimetric dosing unit 4 components |
| Head description | Die Cloren automatic |
| Chill roll unit | diam 1200mm |
| Thickness controll system | Electronic System |
| Rewinder description | 2 winders 1m wide turret type Macchi & Noel ; Reels type :pre-stretch reels; hand reels;machine reels,coreless hand reels |
| Note | Oscillating device |
TECHNO COATING ENGINEERING 2000/5 PLUS 4E
-
Code Machine: CA125
-
Année: 2004
-
Film width (mm): 2000
QUANZHOU MINMETALS
-
Code Machine: CA249
-
Année: 2010
-
Film width (mm): 1600
MACCHI
-
Code Machine: CA235
-
Année: 1999
-
Film width (mm): 1500
PRIMPLAST
-
Code Machine: CA152
-
Année: 1999
-
Film width (mm): 2000
TECHNO COATING ENGINEERING
-
Code Machine: CA060
-
Année: 1997
-
Film width (mm): 1500
TECHNO COATING ENGINEERING
-
Code Machine: CA168
-
Année: 1999
-
Film width (mm): 3000
