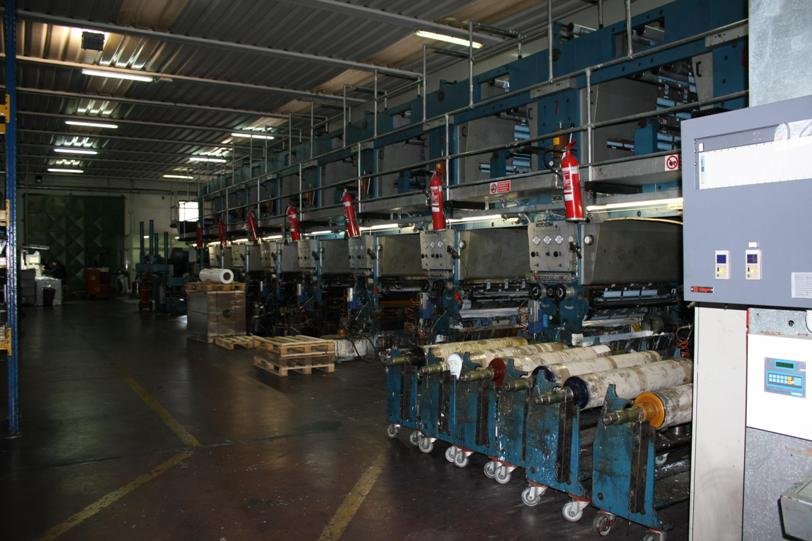

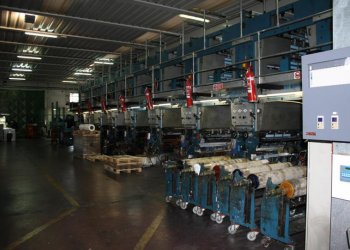

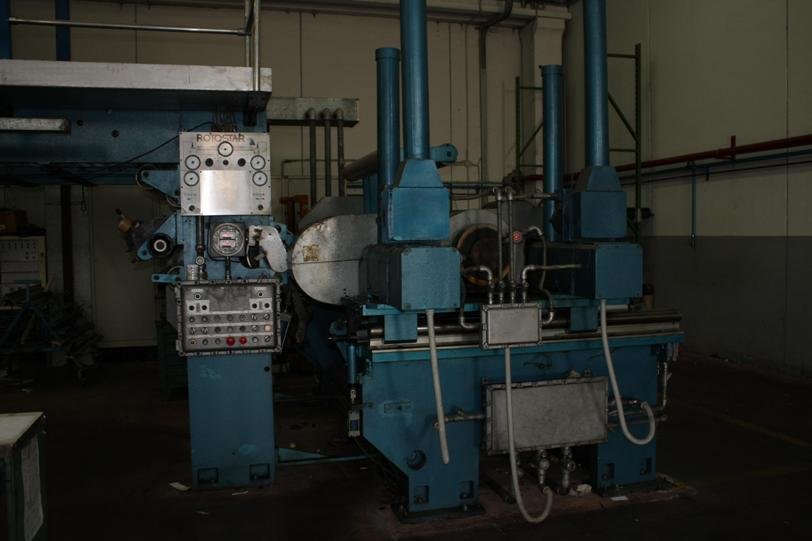

- Code Machine
- RO061
- Fabricant
- ANDREOTTI
- Modello
- ROTOSTAR
- Année
- 1987
- Number of colors
- 8
- Print possibilities
- 7 colours + lamination in line
- Web width (mm)
- 1400
- Print width (mm)
- 1250
- Print repeat range (mm)
- 400-900 mm
- Drying specifications
- double hoods:1&2, mm 4000; single dryer hoods:3,4,5,6 , mm2000; double dryer hoods on print units:7 & 8 mm 4000; All units with independent ventilation.
- Drying heat surce
- Diathermic oil heater with gas burner1.000.000 Kcal UNION SELECT year 2006
- Unwinder type
- Non stop turret unwinder
- Max reel diameter unwinder (mm)
- 1200
- Rewinder type
- Non stop central-surface type rewinders
- Max reel diameter rewinder (mm)
- 1200
- Videocamera
- Yes

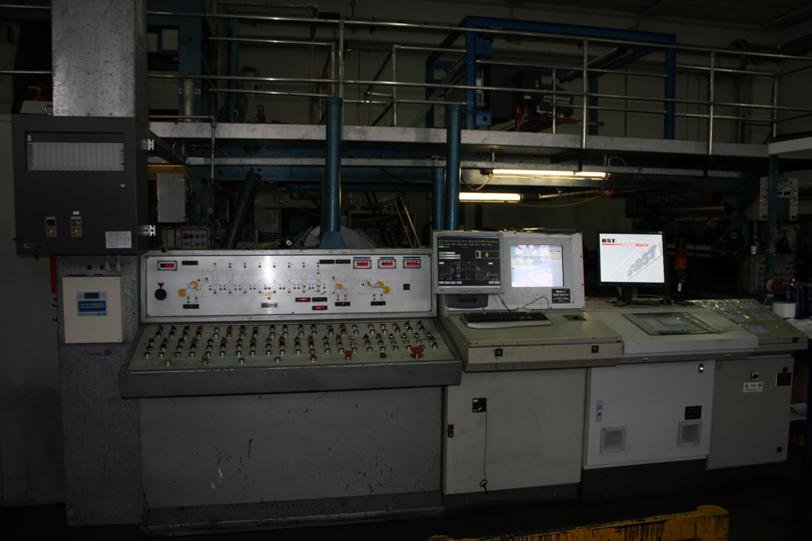

- Register controll
- 1 color register control model CR33 Grafikontrol year 2007
- Vyscosity control
- 8 automatic viscosity control , year 2007
- Print cylinders
- 500
- Note
- 1 coating unit for reverse side or solvent lamination appplication( 8), 1 non stop turret unwinder for solvent lamination application (8), mm600; 1 control system; Fife web guidering for non stop turret unwinder; 4 pneumatical expanding shafts, 152mm; Fife web guidering non stop turret unwinder for solvent lamination application; 9 flame proof electric pumps; 10 doctor blades;16 speedwell sleeves; Fire alarm system Co2, year 2007; Solvent system; sleeves changing, 8 diathermic Oil Thermal heaters with temperature control, year 2007; web viewing and control of the printing quality genius BST year 2007, soundproofed wall; slitter rewinder TLTC
| Code Machine | RO061 |
| Fabricant | ANDREOTTI |
| Modello | ROTOSTAR |
| Année | 1987 |
| Number of colors | 8 |
| Print possibilities | 7 colours + lamination in line |
| Web width (mm) | 1400 |
| Print width (mm) | 1250 |
| Print repeat range (mm) | 400-900 mm |
| Drying specifications | double hoods:1&2, mm 4000; single dryer hoods:3,4,5,6 , mm2000; double dryer hoods on print units:7 & 8 mm 4000; All units with independent ventilation. |
| Drying heat surce | Diathermic oil heater with gas burner1.000.000 Kcal UNION SELECT year 2006 |
| Unwinder type | Non stop turret unwinder |
| Max reel diameter unwinder (mm) | 1200 |
| Rewinder type | Non stop central-surface type rewinders |
| Max reel diameter rewinder (mm) | 1200 |
| Videocamera | Yes |
| Register controll | 1 color register control model CR33 Grafikontrol year 2007 |
| Vyscosity control | 8 automatic viscosity control , year 2007 |
| Print cylinders | 500 |
| Note | 1 coating unit for reverse side or solvent lamination appplication( 8), 1 non stop turret unwinder for solvent lamination application (8), mm600; 1 control system; Fife web guidering for non stop turret unwinder; 4 pneumatical expanding shafts, 152mm; Fife web guidering non stop turret unwinder for solvent lamination application; 9 flame proof electric pumps; 10 doctor blades;16 speedwell sleeves; Fire alarm system Co2, year 2007; Solvent system; sleeves changing, 8 diathermic Oil Thermal heaters with temperature control, year 2007; web viewing and control of the printing quality genius BST year 2007, soundproofed wall; slitter rewinder TLTC |
