- Code Machine
- FL570
- Fabricant
- UTECO
- Modello

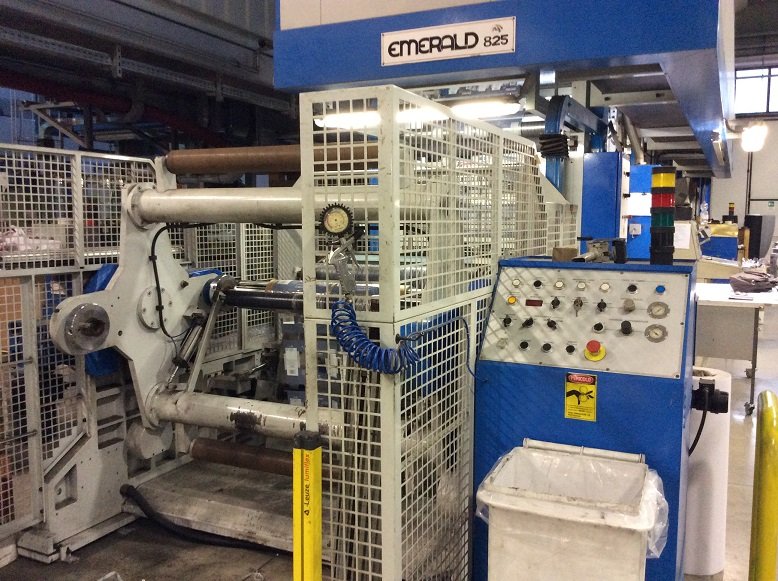

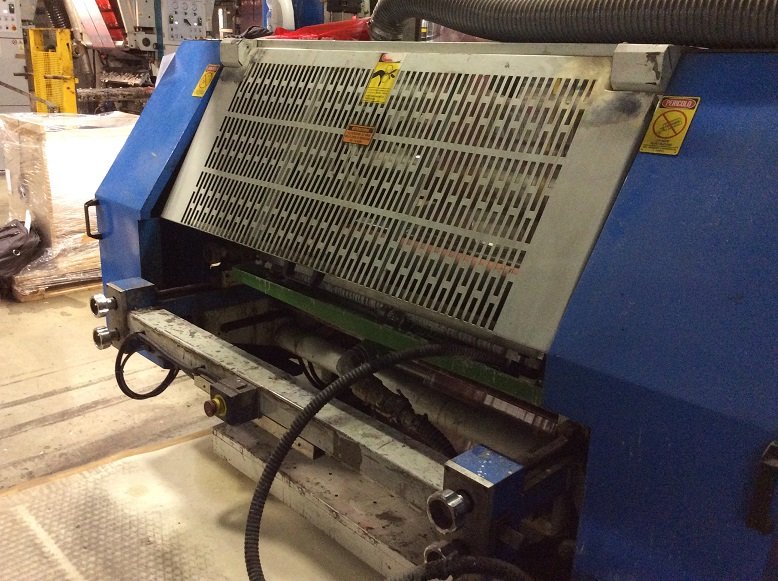

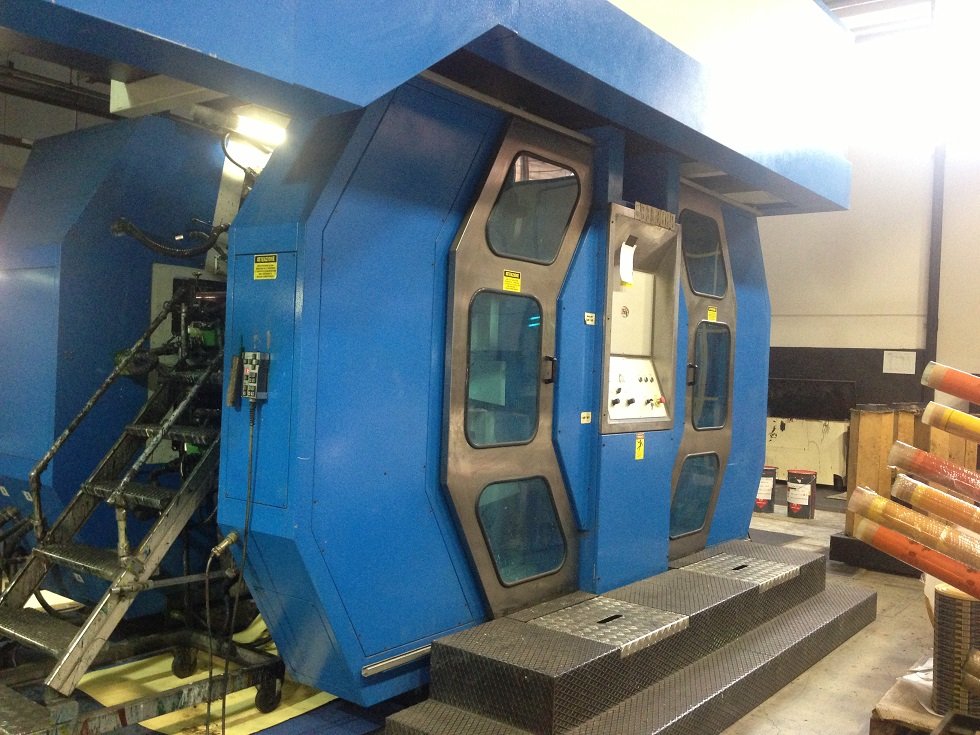

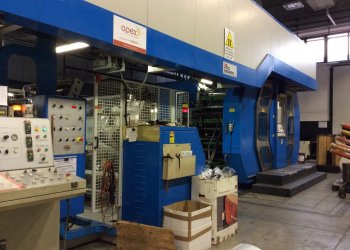

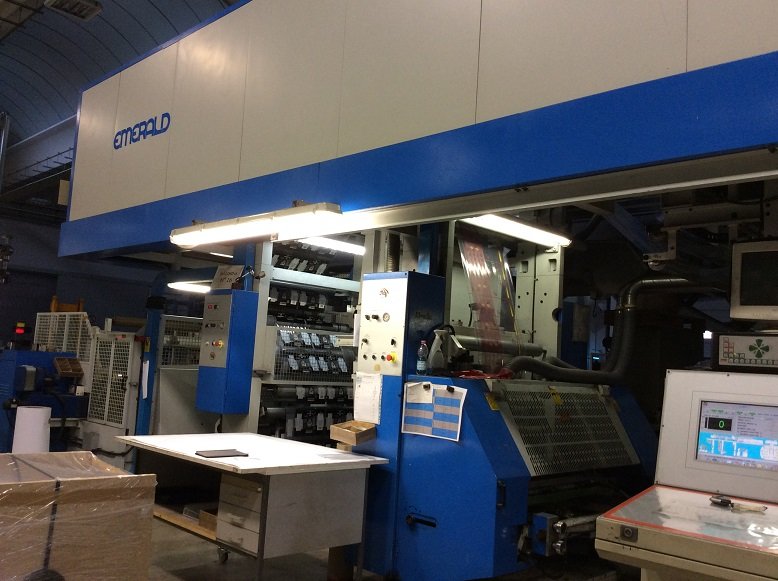

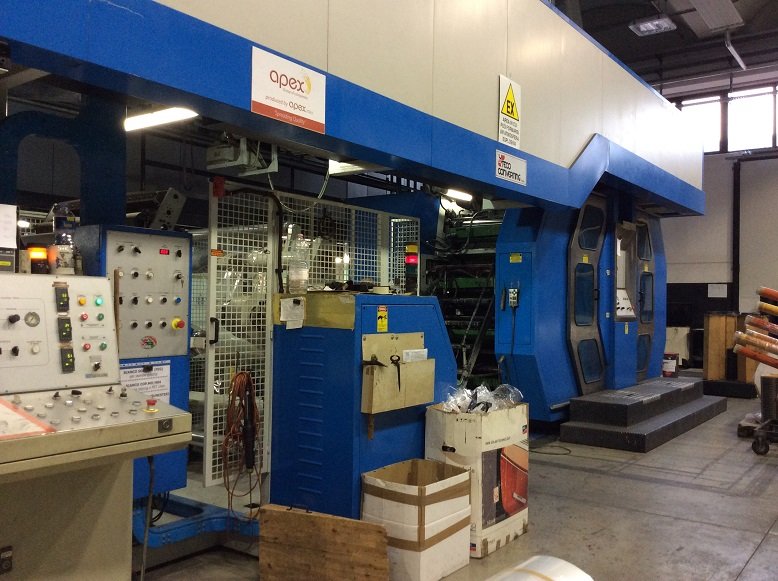

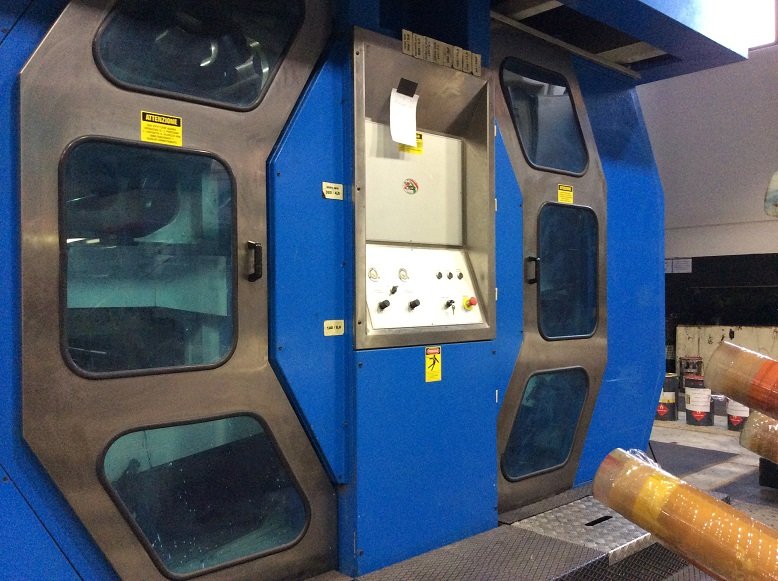

- EMERALD 825 -- 8+1
- Année
- 2001
- Number of colors
- 9
- Print possibilityes
- 8+0, 8+1 front, 8+1 back
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1050
- Print width (mm)
- 1000
- Min print repeat (mm)
- 280
- Max print repeat (mm)
- 780
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zone,4 fans, tunnel 4mt , thermo oil heaters
- Videocamera
- BST Pro Scan
- Web guides
- yes, in and out
- Washing system
- no
- Inking system
- closed chamber doctor blades
- Anilox
- 15 ceramic anilox sleeves
- Print Sleeves
- 15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm
- Note
- Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo
| Code Machine | FL570 |
| Fabricant | UTECO |
| Modello | EMERALD 825 -- 8+1 |
| Année | 2001 |
| Number of colors | 9 |
| Print possibilityes | 8+0, 8+1 front, 8+1 back |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1050 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 280 |
| Max print repeat (mm) | 780 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zone,4 fans, tunnel 4mt , thermo oil heaters |
| Videocamera | BST Pro Scan |
| Web guides | yes, in and out |
| Washing system | no |
| Inking system | closed chamber doctor blades |
| Anilox | 15 ceramic anilox sleeves |
| Print Sleeves | 15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm |
| Note | Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo |
