KBA FLEXOTECNICA EVO XD Imprimeus Flexo 8 couleurs // Flexo CI // Printing machines // Équipement d'occasion // Tecno Converting 2000 S.r.l.

Photo Gallerie

Code Machine: FL1122
Fabricant: KBA FLEXOTECNICA
Modello: EVO XD
Année: 2017
Number of colors: 8
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1270
Print width (mm): 1220
Min print repeat (mm): 380
Max print repeat (mm): 800

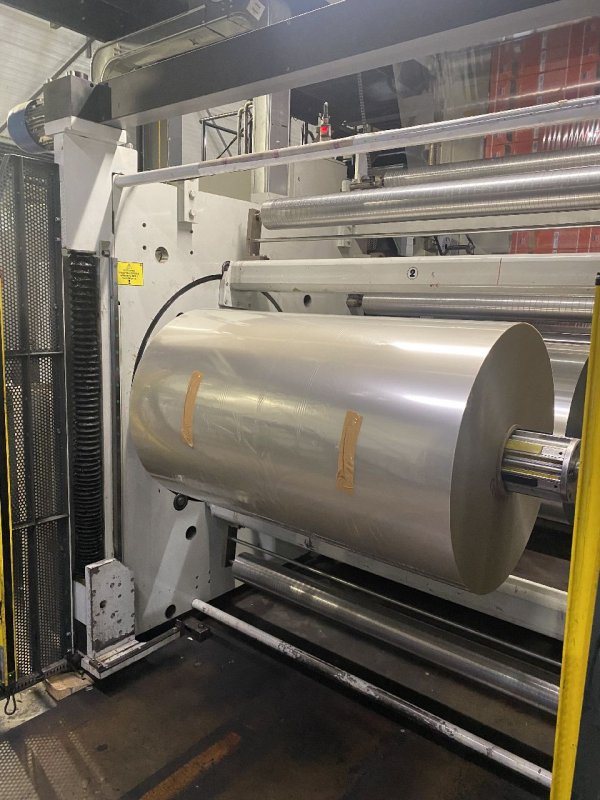

Unwinder type: Turret Automatic with roll loading system
Rewinder type: Turret Automatic with roll unloading system

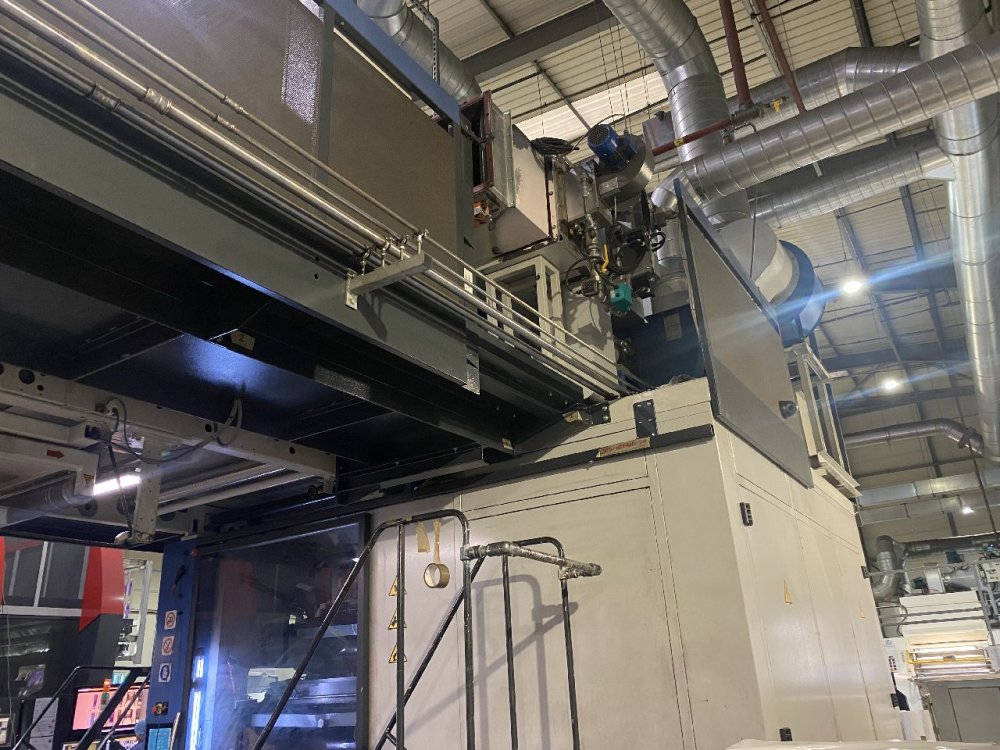

Drying: 2 zones , 4 fans , final tunnel 5 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger

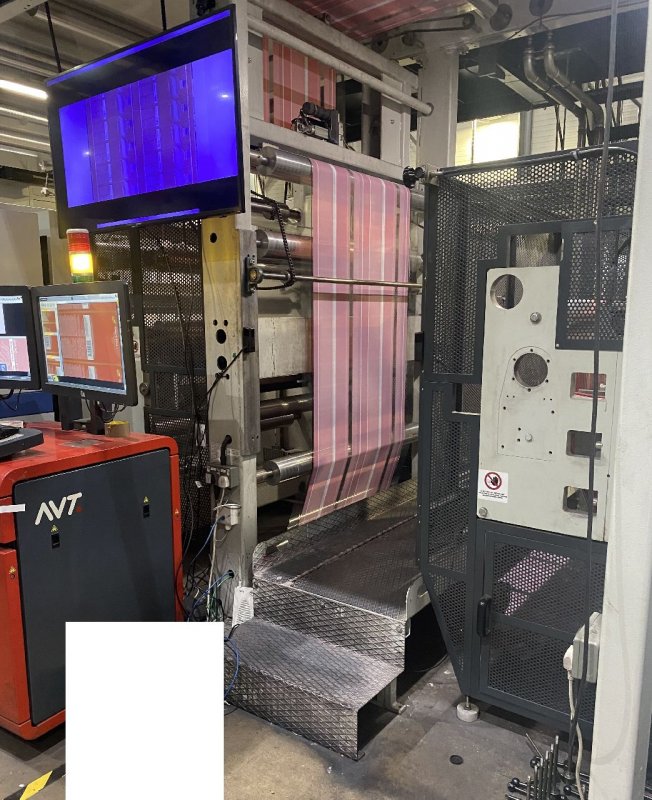

Videocamera: YES AVT 100% INSPECTION
Web guides: Yes in and out
Vyscosity control: yes GAMA
Washing system: Yes
Anilox: 12 ceramic anilox sleeves
Print Sleeves: approx 100

Code Machine	FL1122
Fabricant	KBA FLEXOTECNICA
Modello	EVO XD
Année	2017
Number of colors	8
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1270
Print width (mm)	1220
Min print repeat (mm)	380
Max print repeat (mm)	800
Unwinder type	Turret Automatic with roll loading system
Rewinder type	Turret Automatic with roll unloading system
Drying	2 zones , 4 fans , final tunnel 5 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
Videocamera	YES AVT 100% INSPECTION
Web guides	Yes in and out
Vyscosity control	yes GAMA
Washing system	Yes
Anilox	12 ceramic anilox sleeves
Print Sleeves	approx 100
