- Code Machine
- FL1105
- Fabricant
- SCHIAVI
- Modello
- SIGMA
- Année
- 2002
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 700
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control

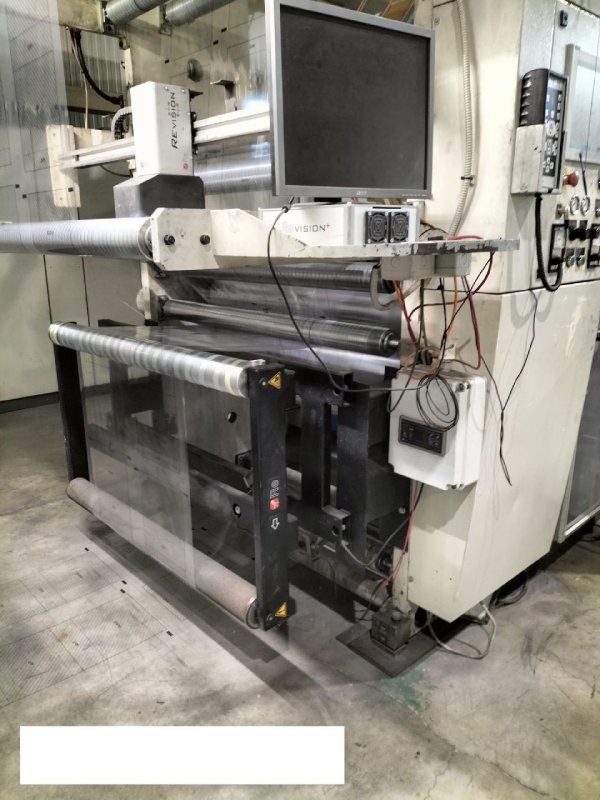

- Videocamera
- yes by RE
- Web guides
- Yes FIFE OPG in and out
- Vyscosity control
- Yes Automatic by Gama
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 4 sets
| Code Machine | FL1105 |
| Fabricant | SCHIAVI |
| Modello | SIGMA |
| Année | 2002 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 700 |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones , 4 fans , 2 gas burners , auto recirculation system with LEL control |
| Videocamera | yes by RE |
| Web guides | Yes FIFE OPG in and out |
| Vyscosity control | Yes Automatic by Gama |
| Inking system | Closed chamber doctor blades |
| Anilox | 12 ceramic anilox sleeves |
| Print Sleeves | 4 sets |
