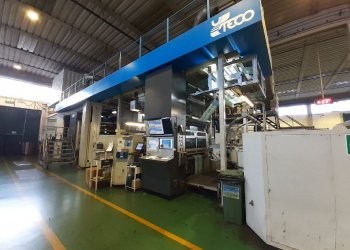

UTECO ONYX 110 Imprimeus Flexo 10 couleurs // Flexo CI // Printing machines // Équipement d'occasion // Tecno Converting 2000 S.r.l.

** SOLD **

Code Machine: FL1096
Fabricant: UTECO
Modello: ONYX 110
Année: 2014
Number of colors: 10
Print possibilityes: 10+0
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1350
Print width (mm): 1300
Min print repeat (mm): 380
Max print repeat (mm): 1100
Unwinder type: Turret Automatic with roll loading system
Max reel diameter unwinder (mm): 1000
Rewinder type: Turret Automatic with roll unloading system
Max reel diameter rewinder (mm): 1000
Drying: 2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
Videocamera: BST Premius 3 chip , BST Q-Center automatic 100% inspection system
Web guides: Yes in and out
Vyscosity control: Yes automatic
Washing system: Yes automatic
Inking system: Closed chamber doctor blades - 10 Chamber + 4 spares
Anilox: 12 ceramic anilox sleeves
Print Sleeves: 30
Print cylinders: Print cylinder mandrels in Carbon fiber 114, 7 mm diam - 20 Carbon fiber carriers
Note: Complete automatic print setting and control with following features : -Register control by inspection system - Printing pressure setting and control Kiss&Go - Print defect control - Colour control -Bar code control

Code Machine	FL1096
Fabricant	UTECO
Modello	ONYX 110
Année	2014
Number of colors	10
Print possibilityes	10+0
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1350
Print width (mm)	1300
Min print repeat (mm)	380
Max print repeat (mm)	1100
Unwinder type	Turret Automatic with roll loading system
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret Automatic with roll unloading system
Max reel diameter rewinder (mm)	1000
Drying	2 zones , 4 fans , final tunnel 6 mt length , 2 Gas Burners 200.000 Kcl/h each, Automatic Air recirculation system with LEL controls on each zone Zellweger
Videocamera	BST Premius 3 chip , BST Q-Center automatic 100% inspection system
Web guides	Yes in and out
Vyscosity control	Yes automatic
Washing system	Yes automatic
Inking system	Closed chamber doctor blades - 10 Chamber + 4 spares
Anilox	12 ceramic anilox sleeves
Print Sleeves	30
Print cylinders	Print cylinder mandrels in Carbon fiber 114, 7 mm diam - 20 Carbon fiber carriers
Note	Complete automatic print setting and control with following features : -Register control by inspection system - Printing pressure setting and control Kiss&Go - Print defect control - Colour control -Bar code control
